Technical Details
| Body Material | Metal |
| Case/Package | TO-204-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 2V |
| Collector Emitter Voltage (VCEO) | 80V |
| Contact Plating | Tin |
| Continuous Collector Current | 20A |
| Country of Origin | Mexico |
| Current Rating | 20A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 8.51mm |
| hFE Min | 100 |
| Introduction Date | 1991-06-01 |
| Lead Free | Lead Free |
| Length | 39.37mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 20A |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 160W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Bulk |
| Polarity | PNP |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Transition Frequency | 4MHz |
| Voltage Rating (DC) | -80V |
| Weight | 4.535924g |
| Width | 26.67mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

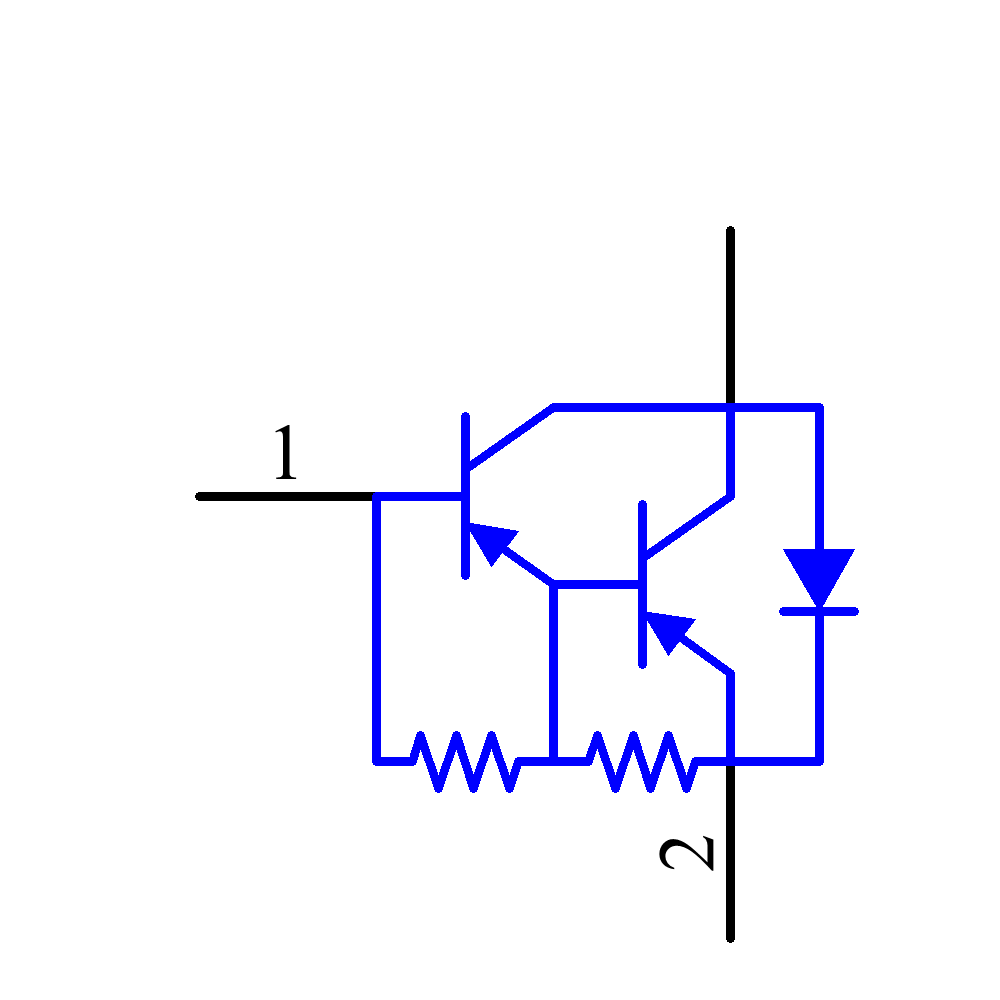

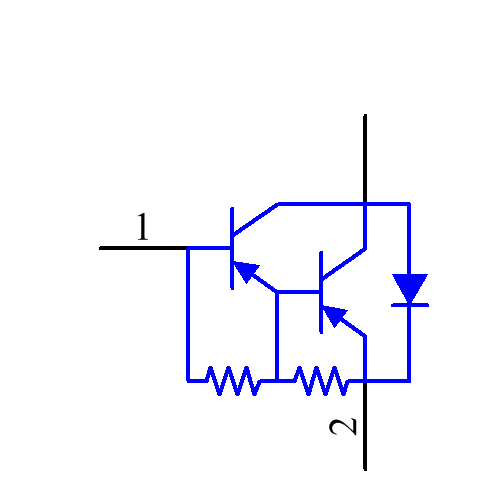

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| NTE Electronics | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Central Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | EOL |
