2SA2153-TD-E - onsemi

Bipolar Transistor, -50V, -2A, Low VCE(sat), PNP Single PCP

Technical Details

China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	-50V
Collector Emitter Breakdown Voltage	50V
Collector Emitter Saturation Voltage	-200mV
Collector Emitter Voltage (VCEO)	50V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	-6V
Gain Bandwidth Product	420MHz
Height	1.5mm
hFE Min	200
Lead Free	Lead Free
Length	4.5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	2A
Max Frequency	1MHz
Max Operating Temperature	150°C
Max Power Dissipation	3.5W
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Packaging	Tape and Reel
Polarity	PNP
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080
Transition Frequency	420MHz
Width	2.5mm

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

onsemi 2SA2153-TD-E | Farnell

Farnell

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

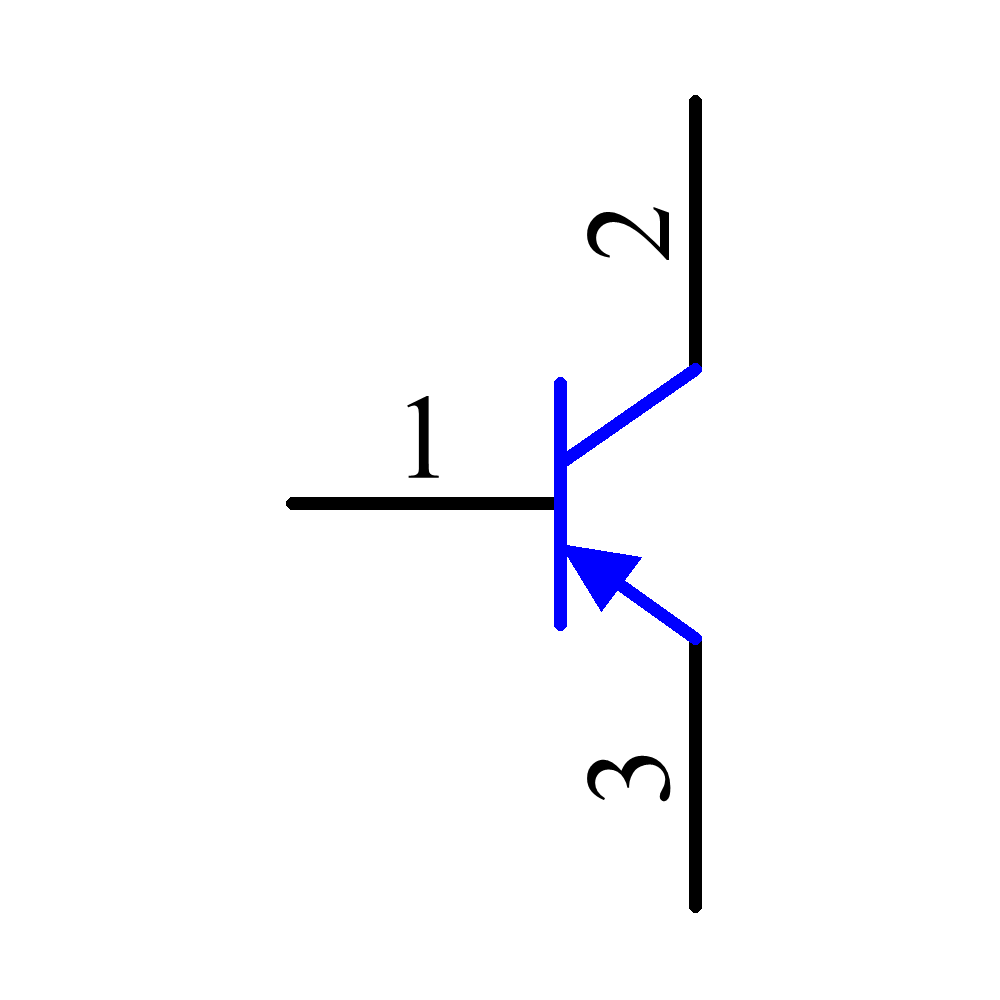

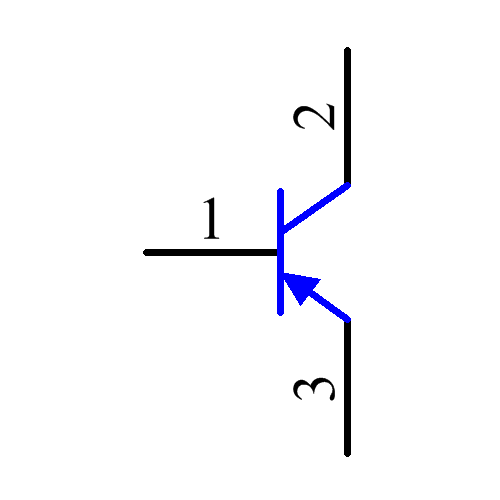

Symbol

2SA2153-TD-E Symbol - onsemi

2SA2153-TD-E Symbol - onsemi

2SA2153-TD-E Symbol - onsemi

2SA2153-TD-E Symbol - onsemi

‹ ›

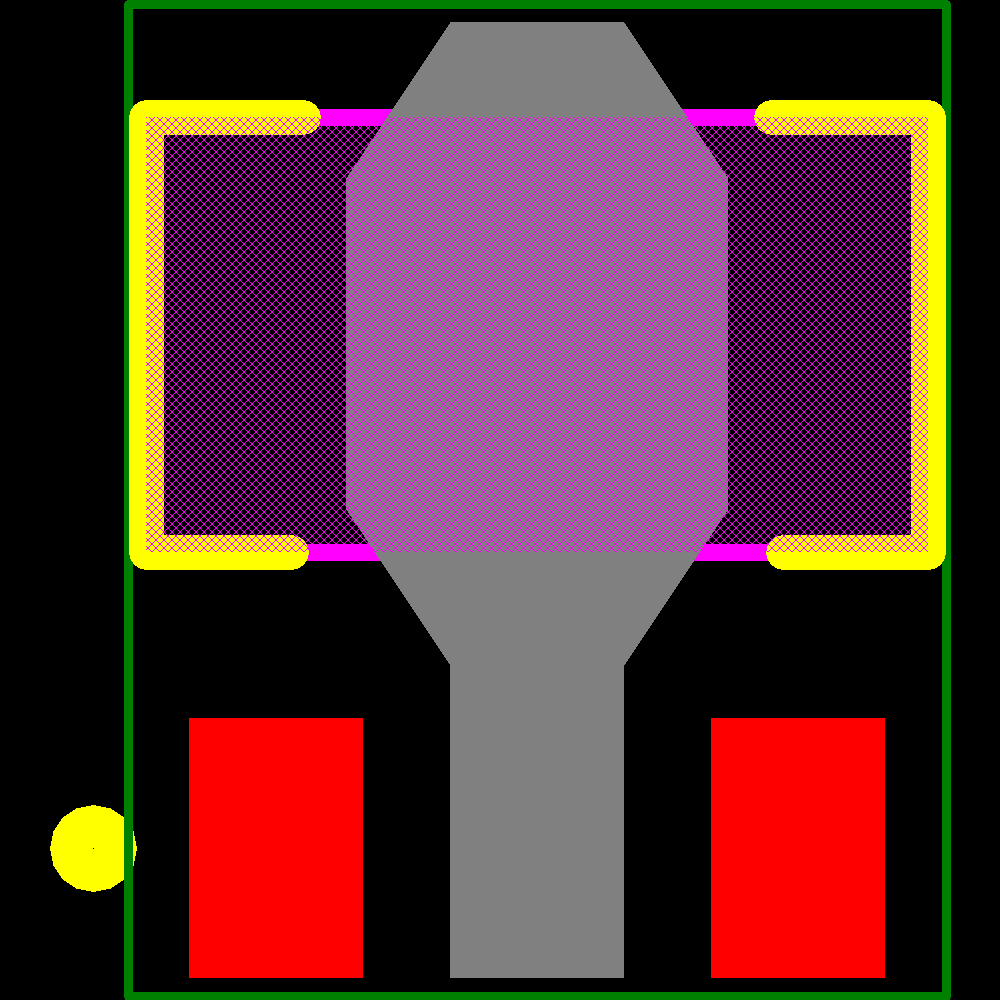

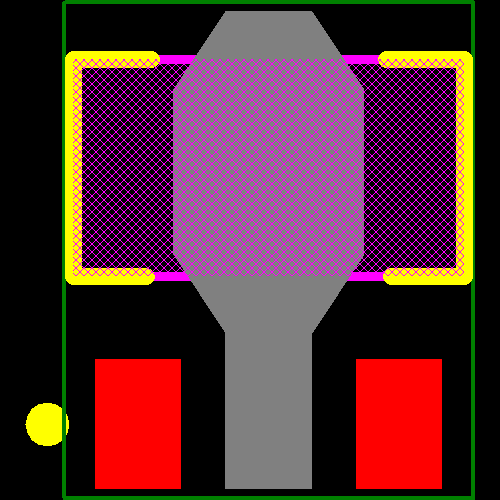

Footprint
