2SB1201S-E - onsemi
Bipolar Transistor, -50V, -2A, Low VCE(sat), (PNP)NPN Single TP/TP-FA
Technical Details
| Case/Package | TO-252-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Emitter Base Voltage (VEBO) | -6V |
| hFE Min | 100 |
| Introduction Date | 2012-06-05 |
| Lead Free | Lead Free |
| Lifecycle Status | EOL |
| Manufacturer Lifecycle Status | LAST SHIPMENTS |
| Max Collector Current | 2A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 800mW |
| Min Operating Temperature | -55°C |
| Number of Pins | 3 |
| Packaging | Bulk |
| Polarity | PNP |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 150MHz |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

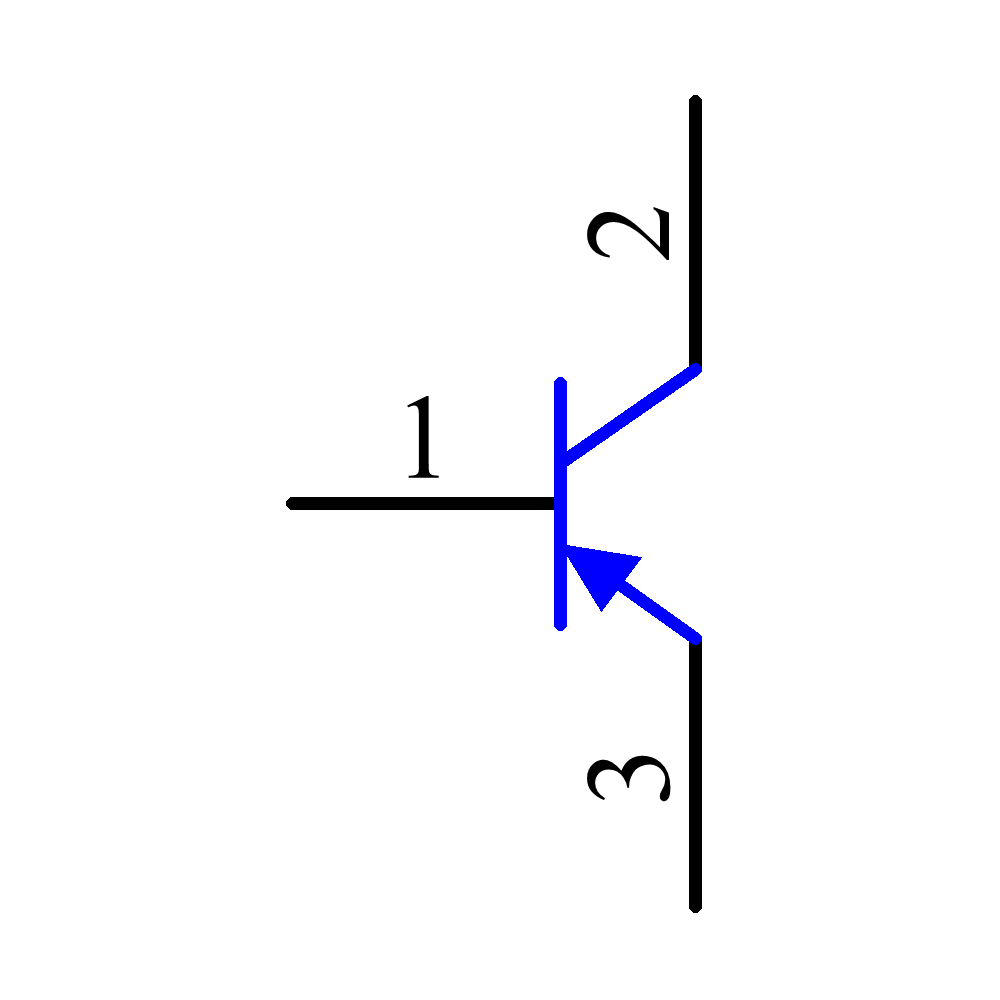

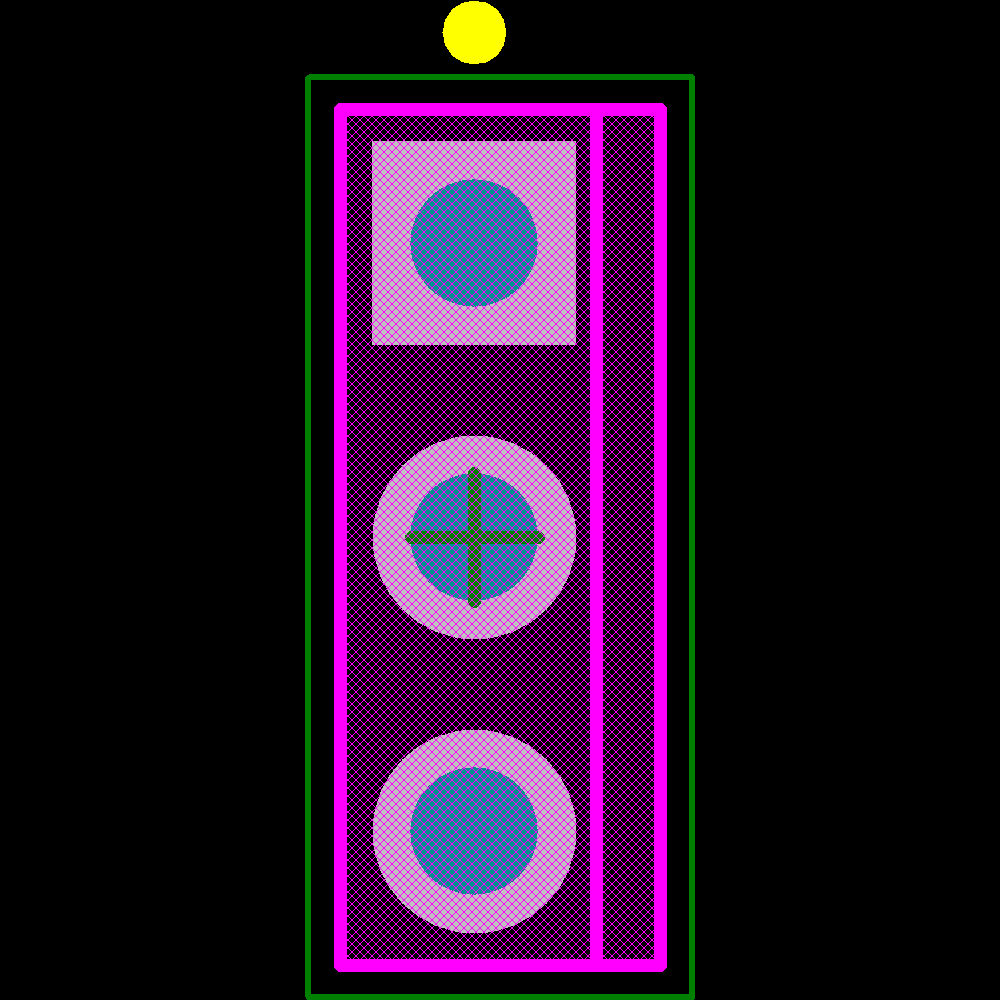

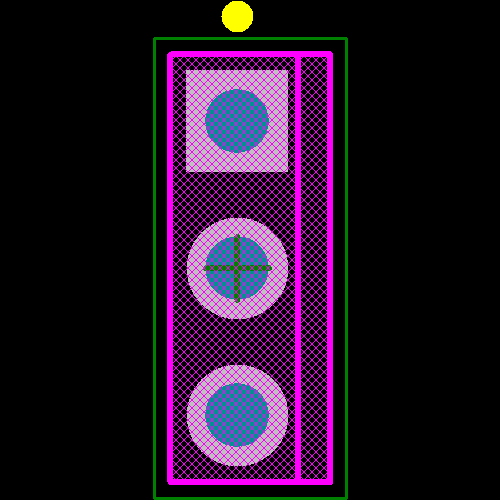

Images
