2SB1201S-TL-E - onsemi

Bipolar Transistor, -50V, -2A, Low VCE(sat), (PNP)NPN Single TP/TP-FA. ONSSPCDDENY1E7M;

Technical Details

Case/Package	TO-252-3
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	-60V
Collector Emitter Breakdown Voltage	50V
Collector Emitter Saturation Voltage	-300mV
Collector Emitter Voltage (VCEO)	50V
Contact Plating	Tin Bismuth
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	-6V
Gain Bandwidth Product	150MHz
Height	2.3mm
hFE Min	140
Lead Free	Lead Free
Length	6.5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	2A
Max Frequency	150MHz
Max Operating Temperature	150°C
Max Power Dissipation	800mW
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	2
Packaging	Tape and Reel
Polarity	PNP
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080, 8541210080\|8541210080\|8541210080, 8541210080\|8541210080\|8541210080\|8541210080
Transition Frequency	150MHz
Width	5.5mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi 2SB1201S-TL-E | Farnell

Farnell

Datasheets

Master Electronics

Lifecycle Status Indicator

Production

Symbol

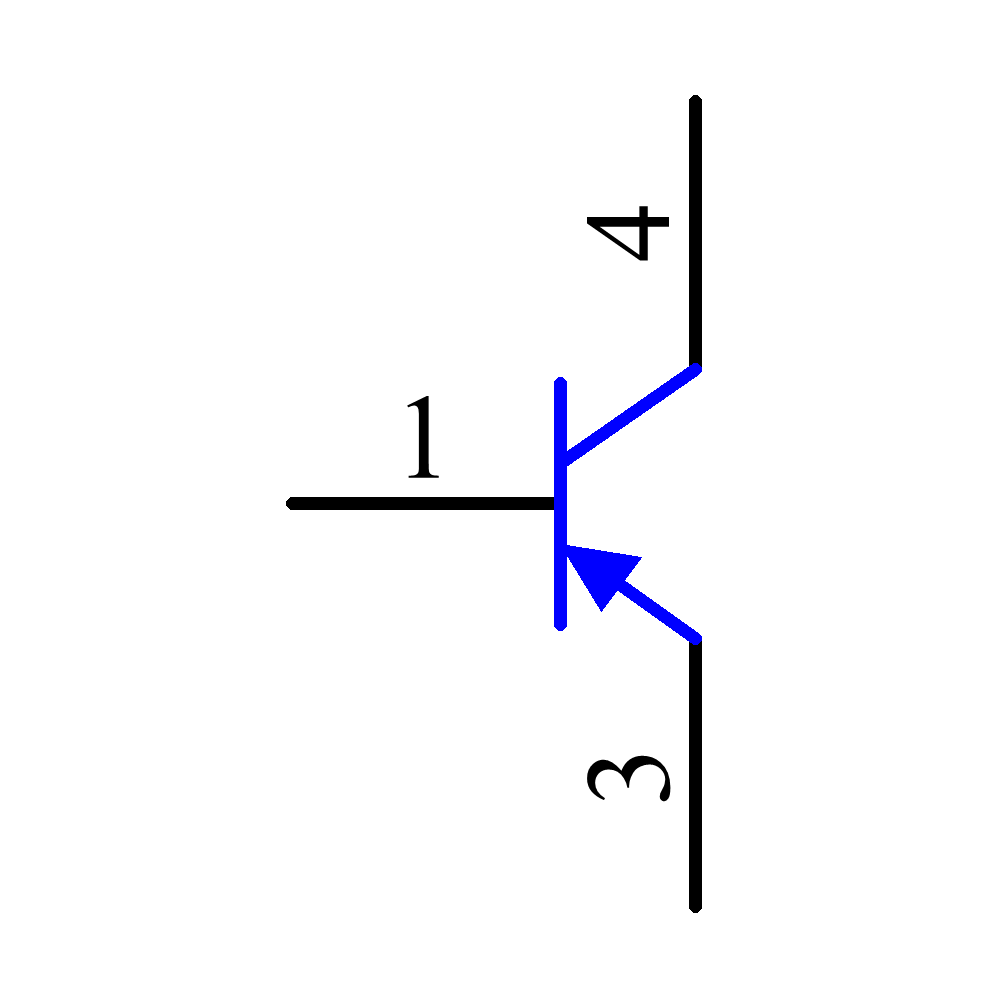

2SB1201S-TL-E Symbol - onsemi

2SB1201S-TL-E Symbol - onsemi

2SB1201S-TL-E Symbol - onsemi

2SB1201S-TL-E Symbol - onsemi

‹ ›

Footprint

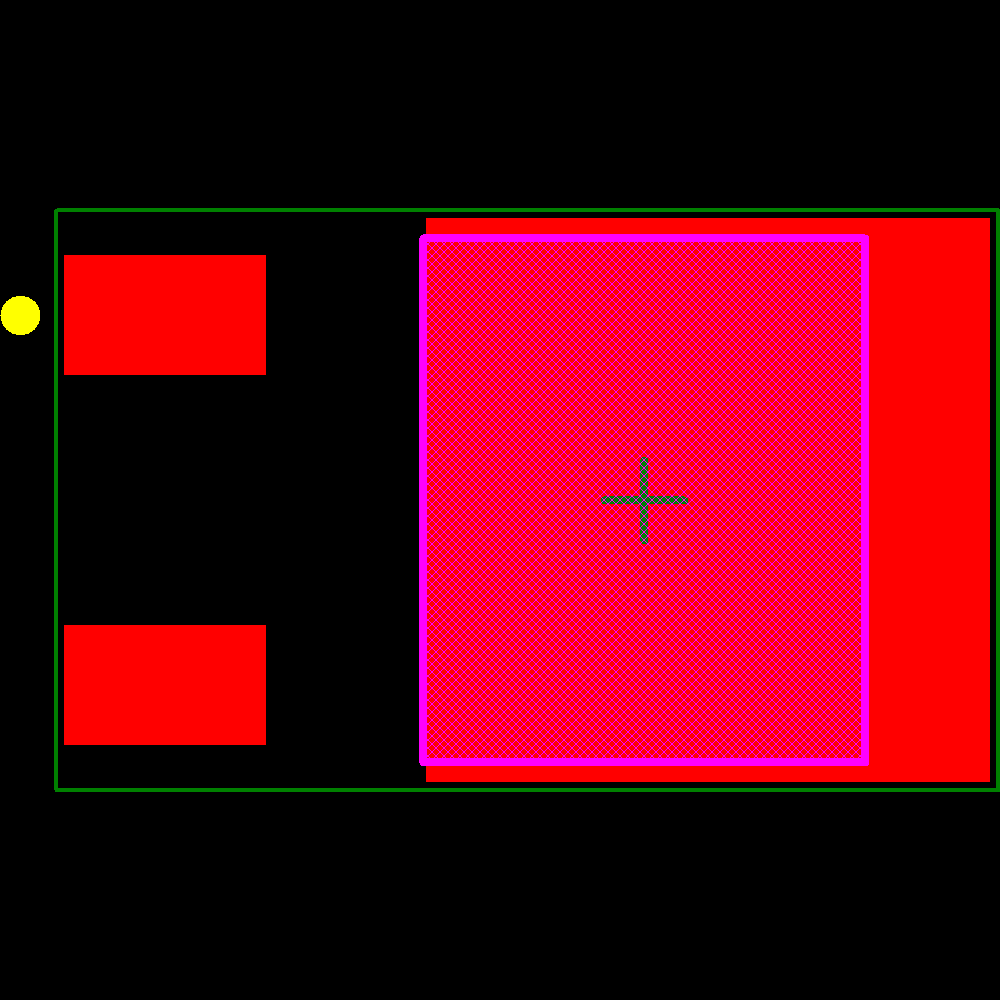

2SB1201S-TL-E Footprint - onsemi
