Discrete Semiconductors > Transistors > BJTs

2SD1623S-TD-E - onsemi

Bipolar Transistor, 50V, 2A, Low VCE(sat), (PNP)NPN Single PCP hFE 140-280

Technical Details

China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	60V
Collector Emitter Breakdown Voltage	50V
Collector Emitter Saturation Voltage	150mV
Collector Emitter Voltage (VCEO)	50V
Element Configuration	Single
Emitter Base Voltage (VEBO)	6V
Frequency	150MHz
Gain Bandwidth Product	150MHz
Height	1.5mm
hFE Min	100
Lead Free	Lead Free
Length	4.5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	2A
Max Frequency	150MHz
Max Operating Temperature	150°C
Max Power Dissipation	500mW
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Packaging	Tape and Reel
Polarity	NPN
Power Dissipation	500mW
REACH SVHC	No
RoHS	Compliant
Transition Frequency	150MHz
Width	2.5mm

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

onsemi 2SD1623S-TD-E | Farnell

Farnell

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

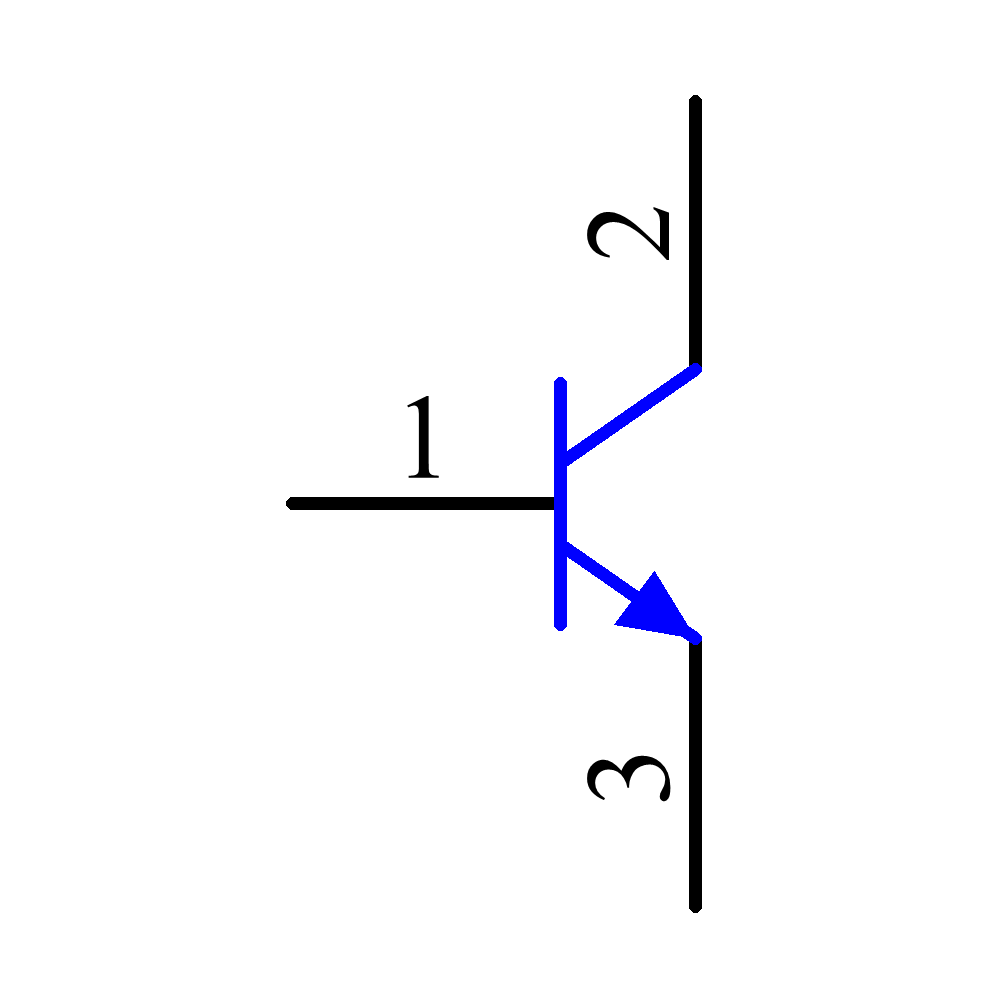

Symbol

2SD1623S-TD-E Symbol - onsemi

2SD1623S-TD-E Symbol - onsemi

2SD1623S-TD-E Symbol - onsemi

2SD1623S-TD-E Symbol - onsemi

‹ ›

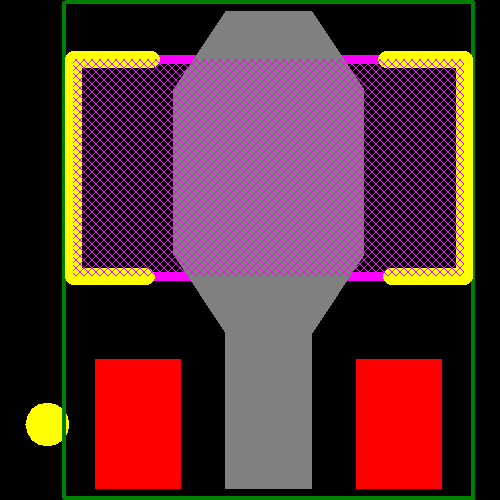

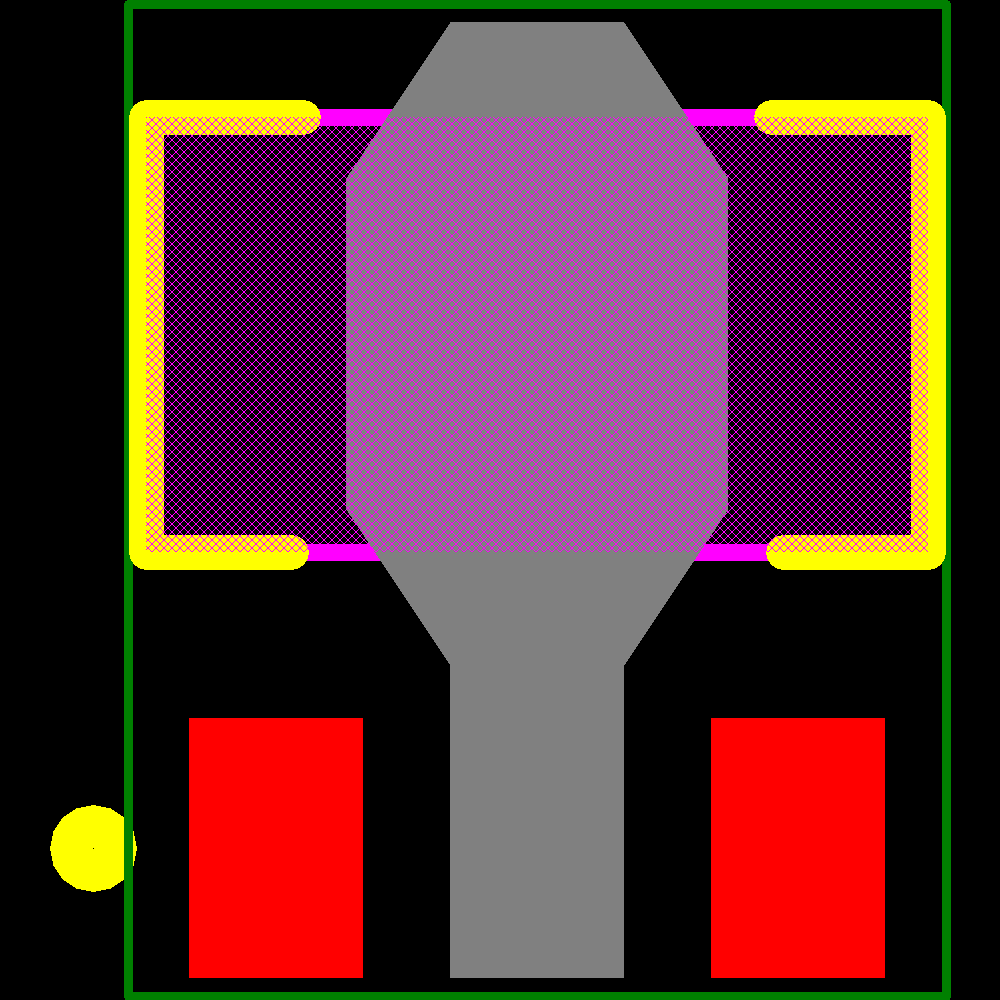

Footprint
