2SD1624S-TD-E - onsemi

Bipolar Transistor, (-)50V, (-)3A, Low VCE(sat), (PNP)NPN Single PCP. ONSSPCDDENY1E7M;

Technical Details

Case/Package	SOT-89
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	60V
Collector Emitter Breakdown Voltage	50V
Collector Emitter Saturation Voltage	500mV
Collector Emitter Voltage (VCEO)	50V
Element Configuration	Single
Emitter Base Voltage (VEBO)	6V
Height	1.5mm
hFE Min	140
Lead Free	Lead Free
Length	4.5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	3A
Max Frequency	150MHz
Max Operating Temperature	150°C
Max Power Dissipation	500mW
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Tape and Reel
Polarity	NPN
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080, 8541210080\|8541210080\|8541210080, 8541210080\|8541210080\|8541210080\|8541210080
Transition Frequency	150MHz
Width	2.5mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi 2SD1624S-TD-E | RS

RS

Datasheets

Lifecycle Status Indicator

Production

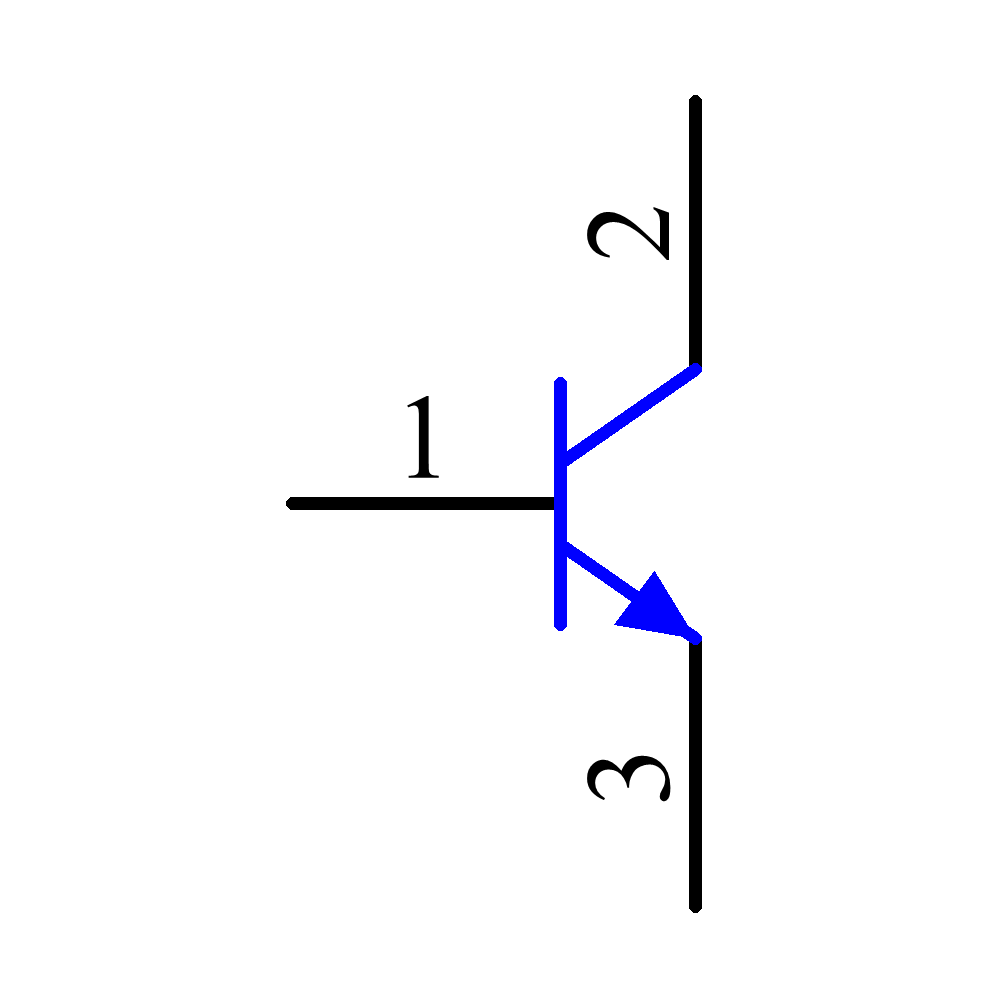

Symbol

2SD1624S-TD-E Symbol - onsemi

2SD1624S-TD-E Symbol - onsemi

2SD1624S-TD-E Symbol - onsemi

2SD1624S-TD-E Symbol - onsemi

‹ ›

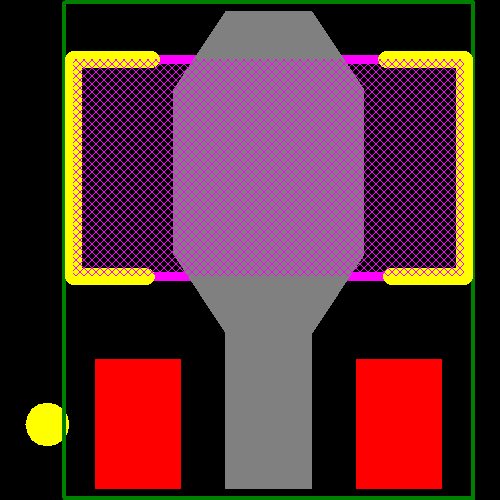

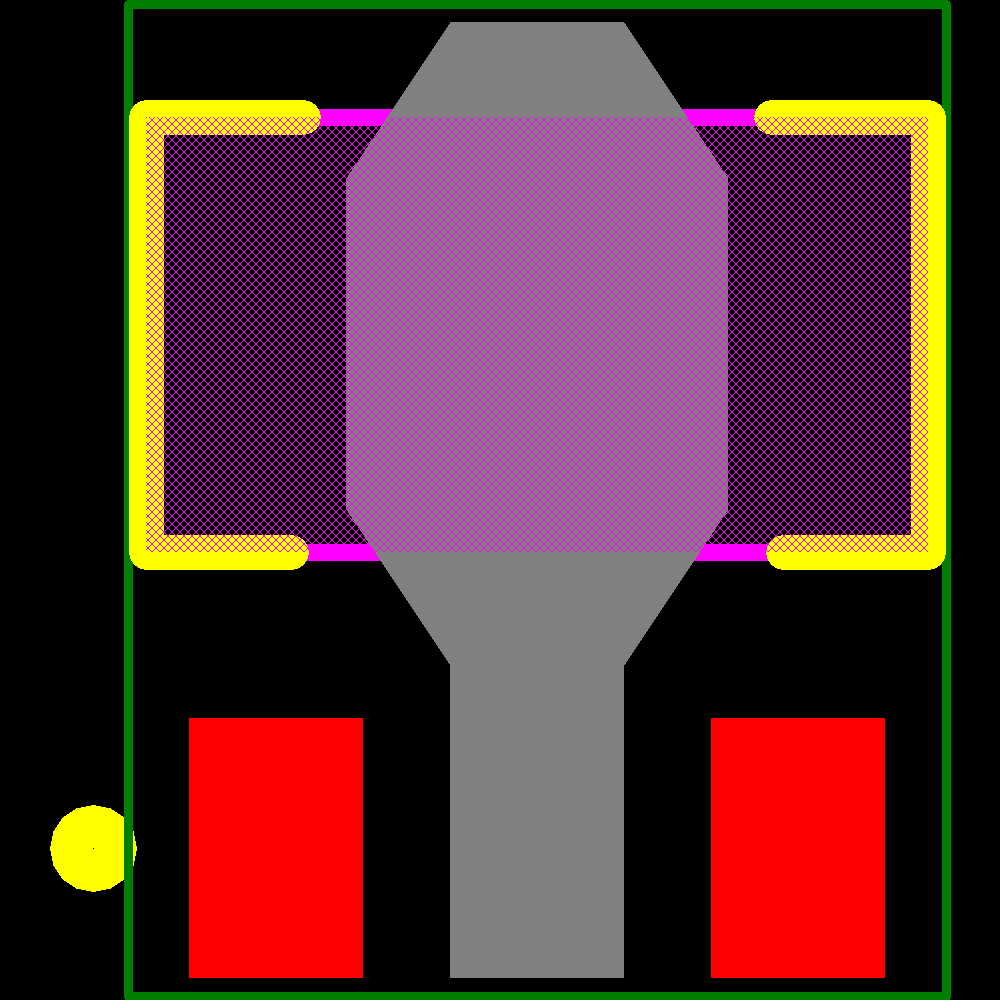

Footprint
