Discrete Semiconductors > Transistors > JFETs

2SK3557-7-TB-E - onsemi

2SK3557 Series Single N Channel 15V Surface Mount JFET - SOT-23

Technical Details

Breakdown Voltage	15V
Case/Package	SOT-23
China RoHS	Compliant
Contact Plating	Tin Bismuth
Continuous Drain Current (ID)	50mA
Country of Origin	Mainland China
Current Rating	50mA
Drain to Source Voltage (Vdss)	15V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Frequency	1kHz
Gate to Source Voltage (Vgs)	-15V
Height	1.1mm
Introduction Date	2011-03-18
Lead Free	Lead Free
Length	2.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	150°C
Max Power Dissipation	200mW
Min Operating Temperature	-55°C
Noise Figure	1dB
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Tape and Reel
Power Dissipation	200mW
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080\|8541210080\|8541210080\|8541210080
Termination	SMD/SMT
Test Current	1mA
Test Voltage	5V
Voltage Rating	15V
Width	1.5mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

onsemi 2SK3557-7-TB-E | Newark

Newark

Datasheets

Lifecycle Status Indicator

Production

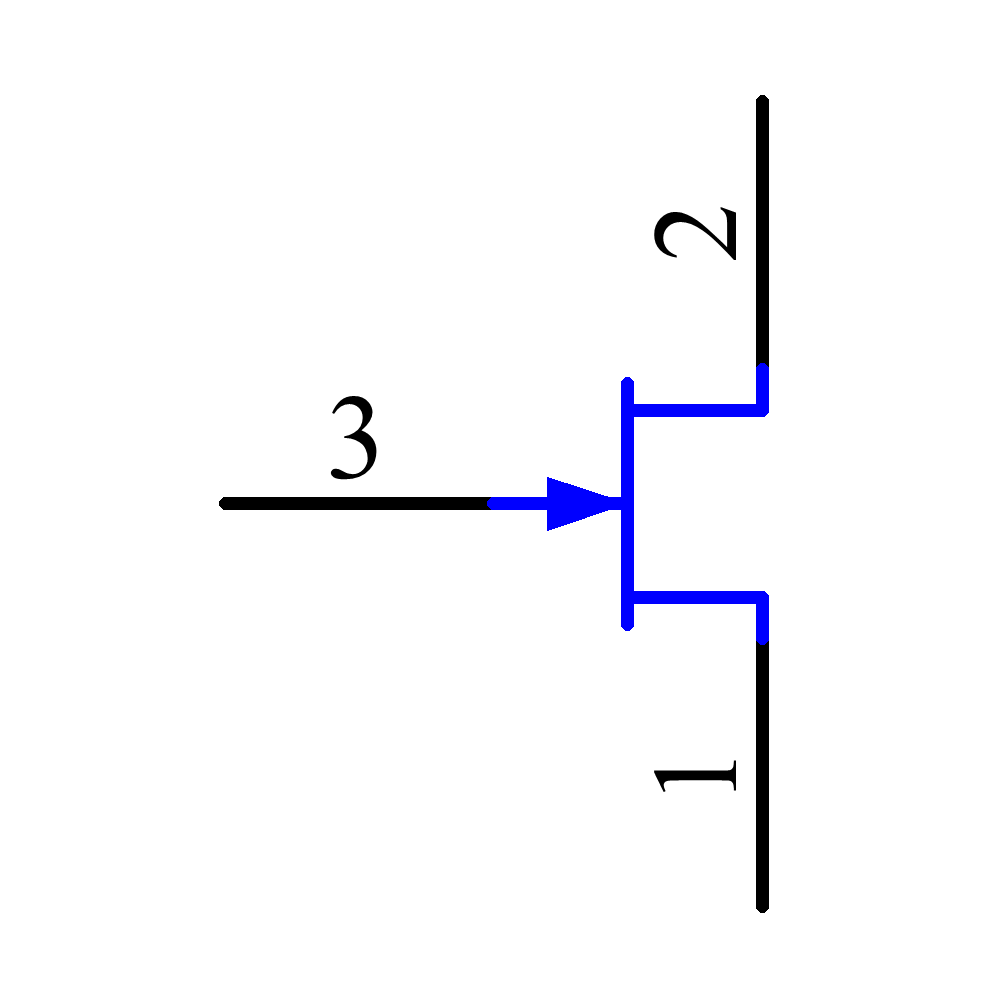

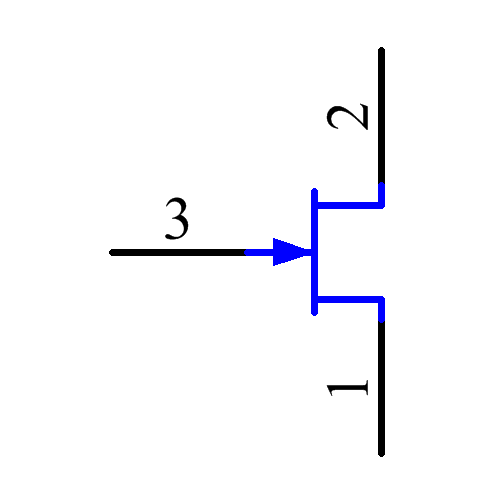

Symbol

2SK3557-7-TB-E Symbol - onsemi

2SK3557-7-TB-E Symbol - onsemi

2SK3557-7-TB-E Symbol - onsemi

2SK3557-7-TB-E Symbol - onsemi

‹ ›

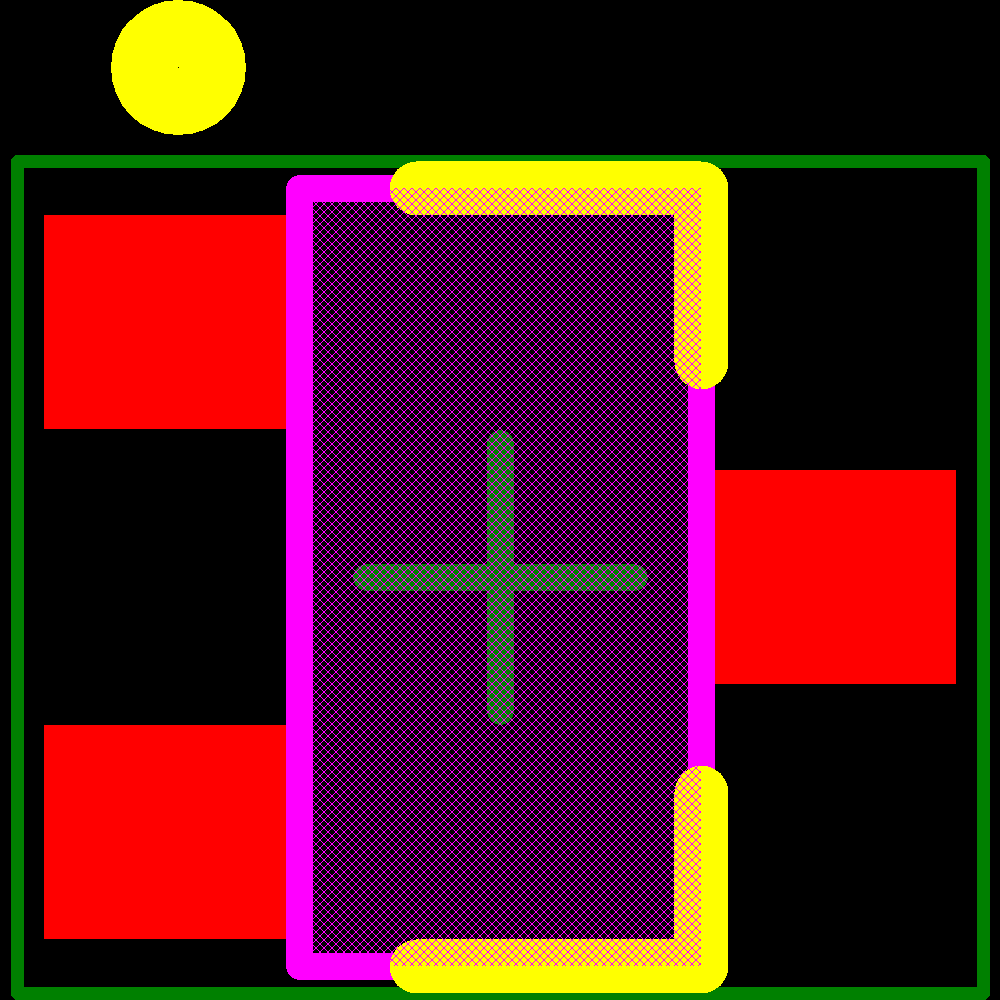

Footprint
