Technical Details
| Breakdown Voltage | 30V |
| Case/Package | SOT-23 |
| Contact Plating | Tin Bismuth |
| Continuous Drain Current (ID) | 10mA |
| Country of Origin | Mainland China |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 200Ω |
| Drain to Source Voltage (Vdss) | 30V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | -30V |
| Height | 1.1mm |
| Input Capacitance | 4pF |
| Introduction Date | 2011-03-18 |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Min Operating Temperature | -55°C |
| Number of Pins | 3 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080 |
| Termination | SMD/SMT |
| Weight | 7.994566mg |
| Width | 1.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

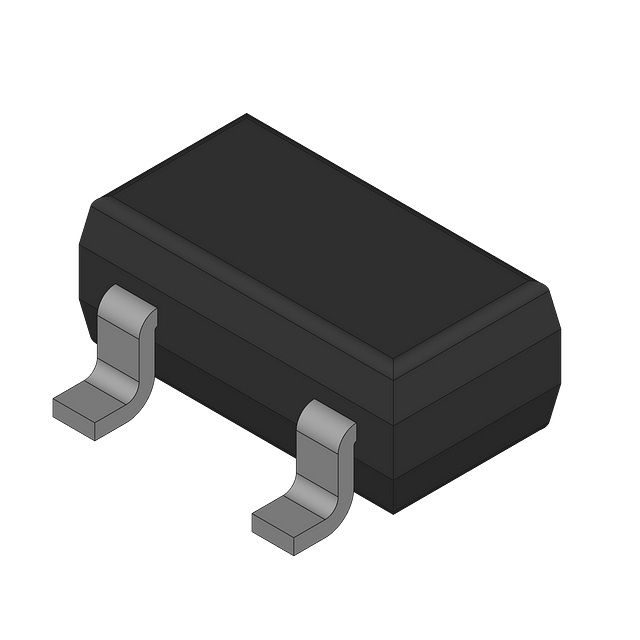

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| InterFET | Unknown | ||
| Central Semiconductor | Production | ||
| onsemi | Production | ||
| NXP Semiconductors | Obsolete | ||
| Central Semiconductor | Unknown | ||
| onsemi | Production | ||
| onsemi | Production | ||
| onsemi | Production | ||
| Central Semiconductor | Production |
