Discrete Semiconductors  >  Transistors  >  JFETs

onsemi - 2SK3796-3-TL-E

2SK3796-3-TL-E - onsemi

ON Semiconductor 2SK3796-3-TL-E N-channel JFET Transistor, 30 V, Idss 1.23.0mA, 3-Pin SMCP

 Datasheets

Technical Details

Contact Plating Tin Bismuth
Continuous Drain Current (ID) 10mA
Country of Origin Mainland China
Drain to Source Breakdown Voltage 30V
Drain to Source Resistance 200Ω
Drain to Source Voltage (Vdss) 30V
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Gate to Source Voltage (Vgs) -30V
Height 750µm
Input Capacitance 4pF
Introduction Date 2011-03-18
Lead Free Lead Free
Length 1.6mm
Lifecycle Status Obsolete
Max Operating Temperature 150°C
Max Power Dissipation 100mW
Min Operating Temperature -55°C
Number of Pins 3
Packaging Tape and Reel
Power Dissipation 100mW
REACH SVHC Yes
RoHS Compliant
Width 800µm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

Datasheets

 Component Stockers USA
 Win Source
 Microchip USA

Lifecycle Status Indicator

   Obsolete

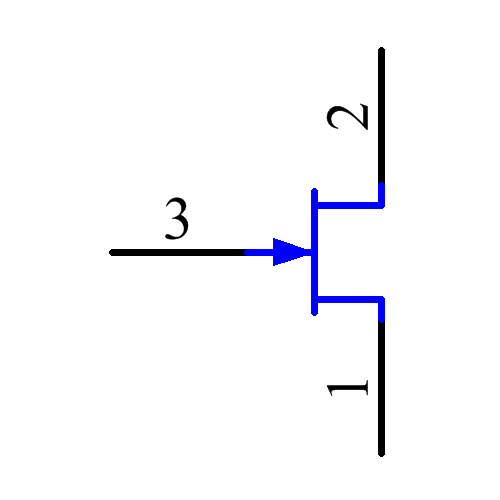

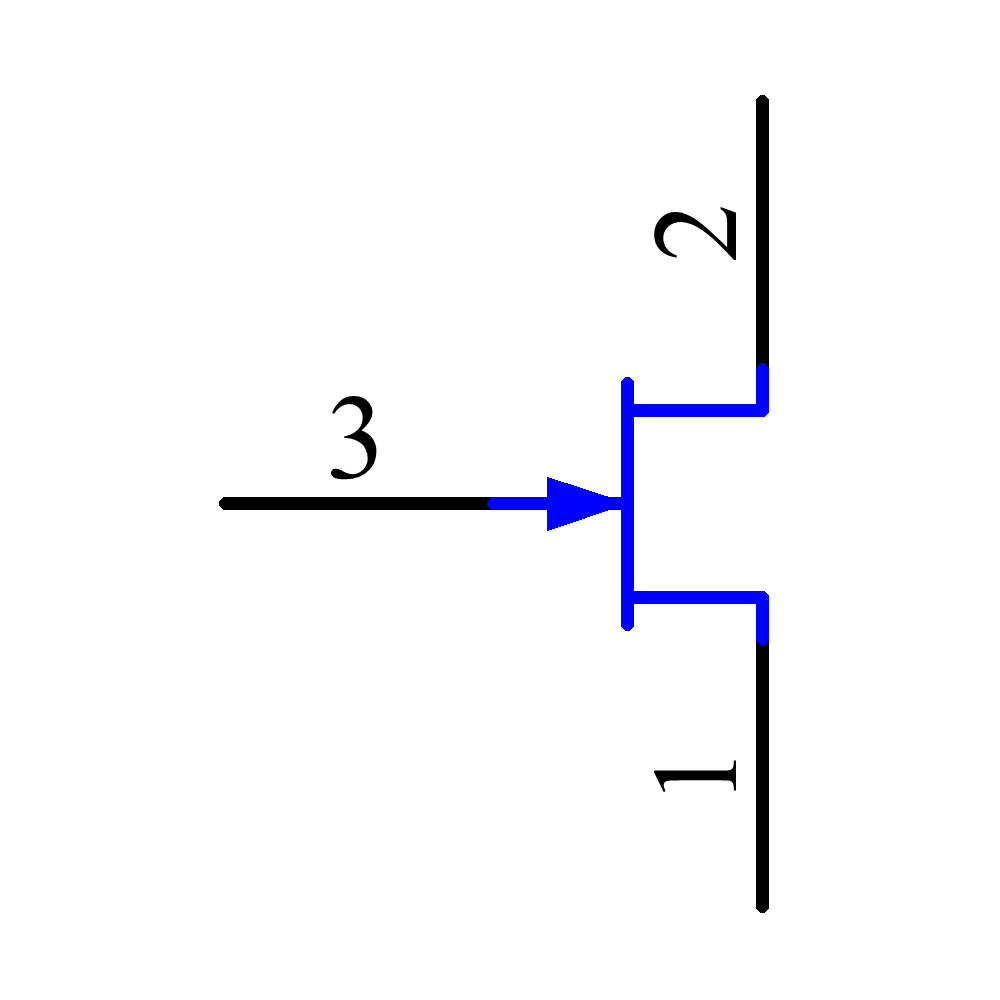

Symbol

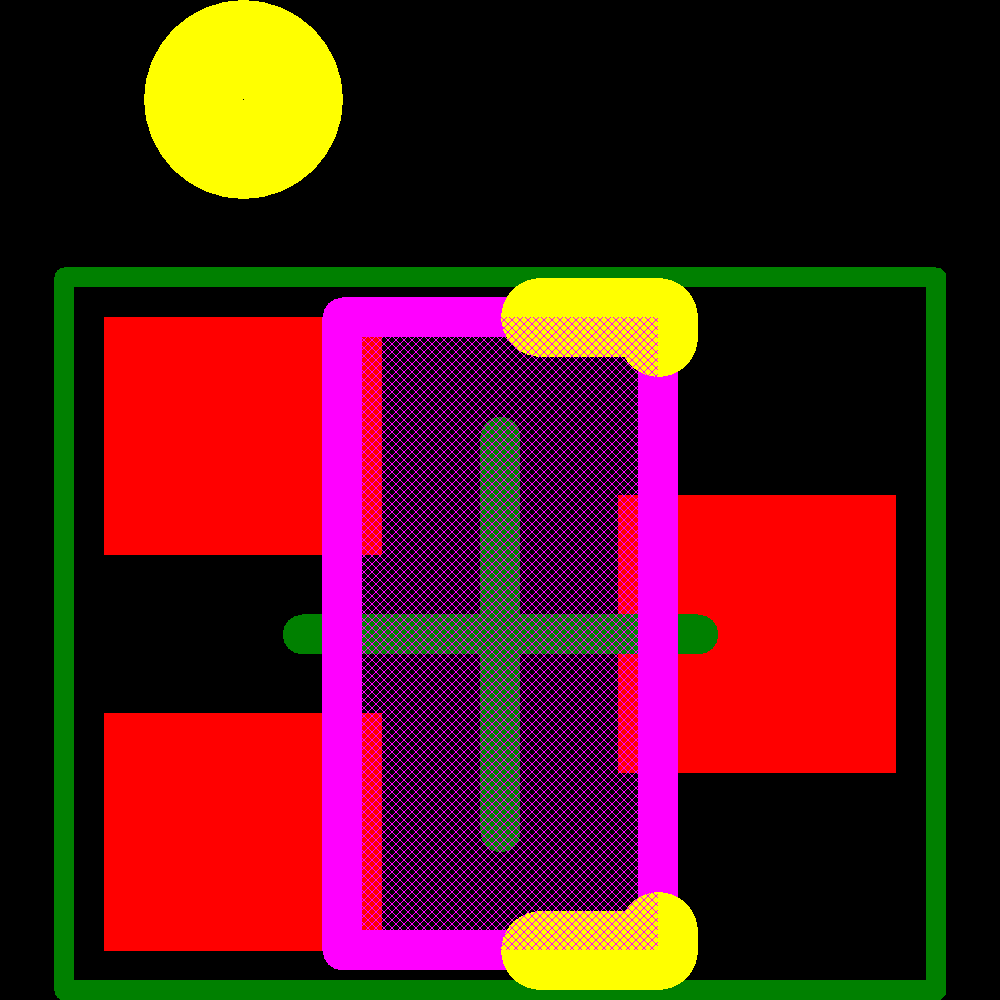

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
onsemi
2SK3738-TL-E
Obsolete
onsemi
2SK3796-2-TL-E
Obsolete
onsemi
2SK3796-4-TL-E
Obsolete
