2SK932-22-TB-E - onsemi
2SK932-22-TB-E N-channel JFET Transistor; 15 V; Idss 7.3 - 12mA; 3-Pin CP
Technical Details
| Case/Package | TO-236-3 |
| China RoHS | Compliant |
| Contact Plating | Tin Bismuth |
| Continuous Drain Current (ID) | 50mA |
| Country of Origin | Mainland China |
| Drain to Source Breakdown Voltage | 15V |
| Drain to Source Voltage (Vdss) | 15V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | -15V |
| Height | 1.1mm |
| Introduction Date | 1999-05-12 |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Min Operating Temperature | -55°C |
| Number of Pins | 3 |
| Packaging | Tape and Reel |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541210080 |
| Width | 1.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

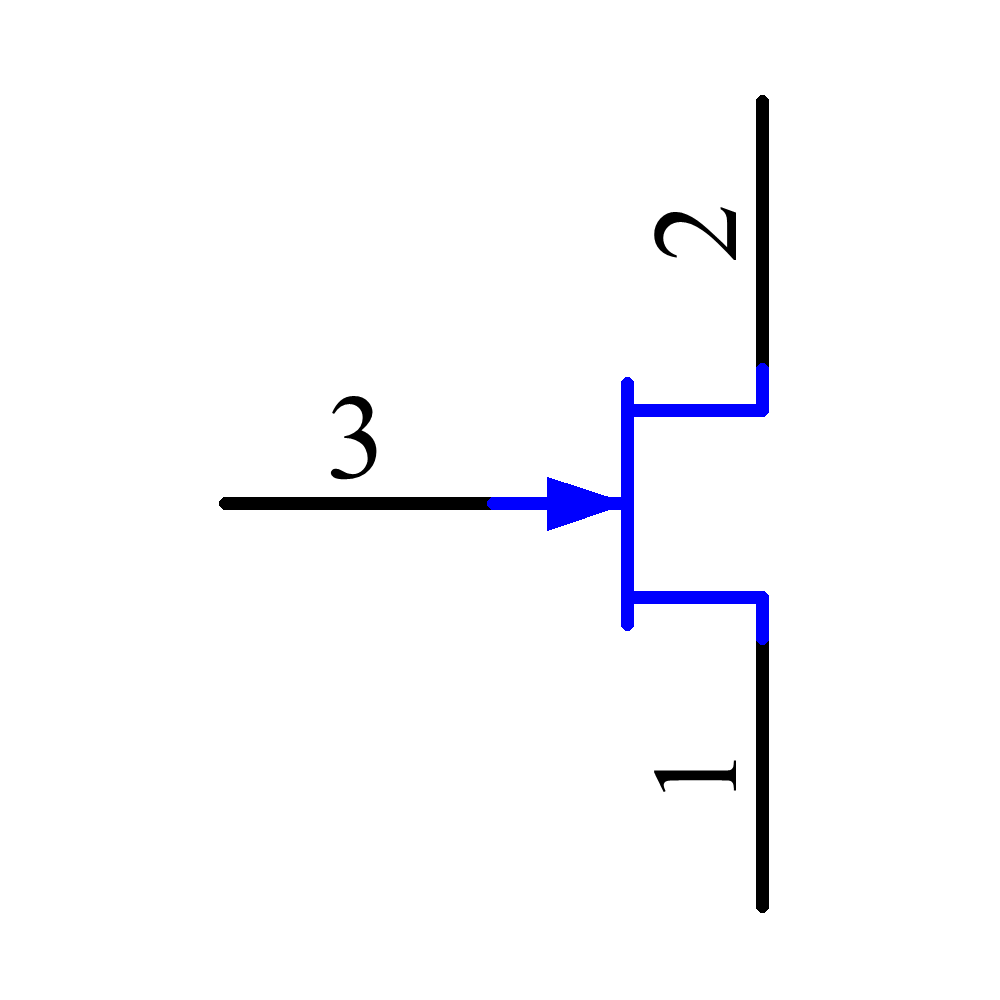

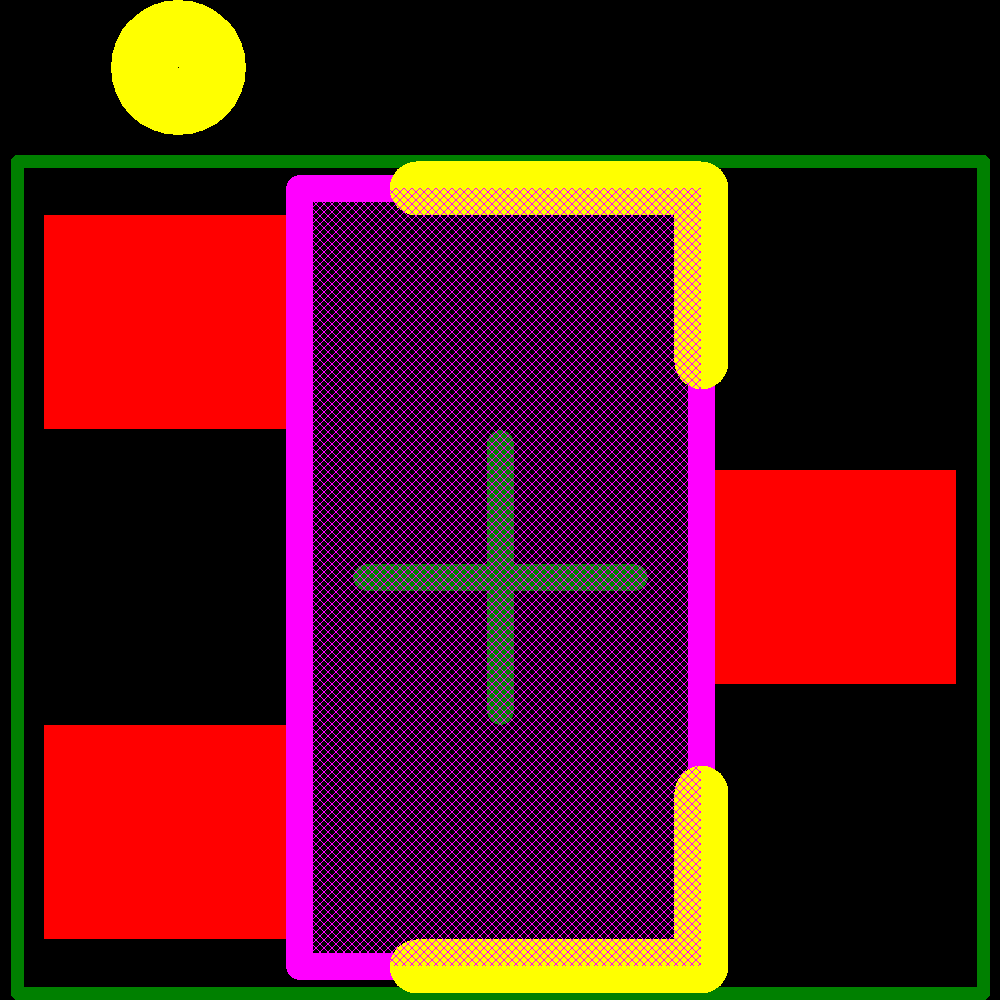

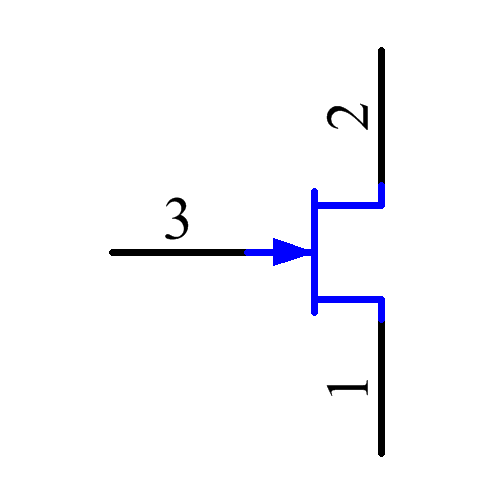

Images

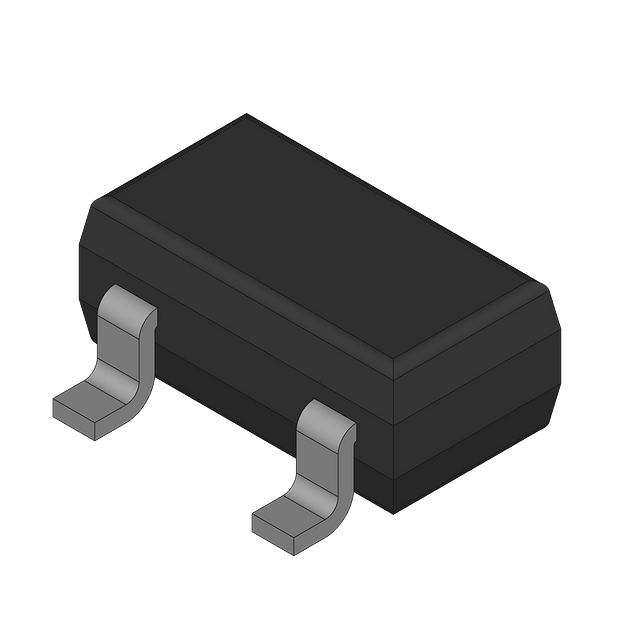

Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| InterFET | Unknown | ||
| Central Semiconductor | Production | ||
| onsemi | Production | ||
| NXP Semiconductors | Obsolete | ||
| Central Semiconductor | Unknown | ||
| onsemi | Production | ||
| onsemi | Production | ||
| onsemi | Production | ||
| Central Semiconductor | Production |
