Technical Details
| Case/Package | SOP |
| Height - Seated (Max) | 1.75mm |
| High Level Output Current | -1mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1985-07-01 |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Obsolete |
| Logic Function | OR, XOR |
| Low Level Output Current | 20mA |
| Max Operating Temperature | 70°C |
| Max Supply Current | 28mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operating Supply Voltage | 5V |
| Propagation Delay | 8ns |
| Quiescent Current | 18mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schmitt Trigger Input | No |
| Temperature Grade | Commercial |
| Terminal Pitch | 1.27mm |
| Turn-On Delay Time | 12ns |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

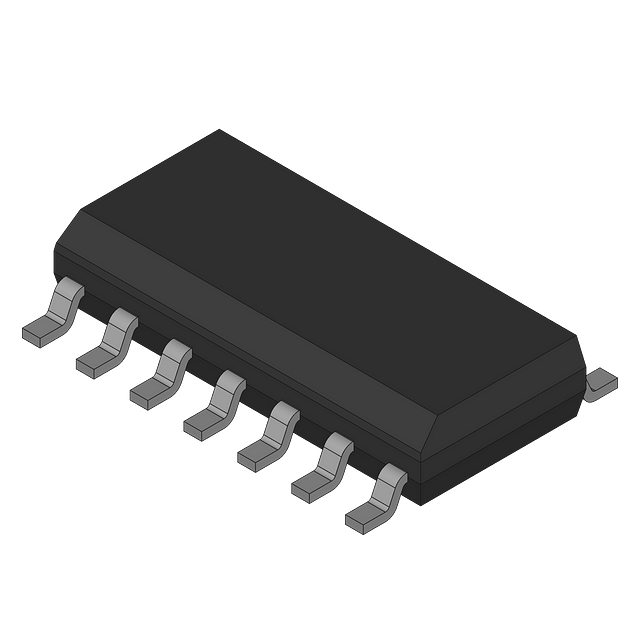

Images
