BC32716BU - onsemi
Bipolar (BJT) Single Transistor, PNP, -45 V, 100 MHz, 625 mW, -800 mA, 60
Technical Details
| Case/Package | TO-92 |
| Collector Base Voltage (VCBO) | -10V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | -700mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Current Rating | -800mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | -5V |
| Frequency | 100MHz |
| Gain Bandwidth Product | 100MHz |
| Height | 4.58mm |
| hFE Min | 60 |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Length | 4.58mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 800mA |
| Max Frequency | 20MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 625mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Polarity | PNP |
| Power Dissipation | 625mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 100MHz |
| Voltage Rating (DC) | -45V |
| Weight | 179mg |
| Width | 3.86mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

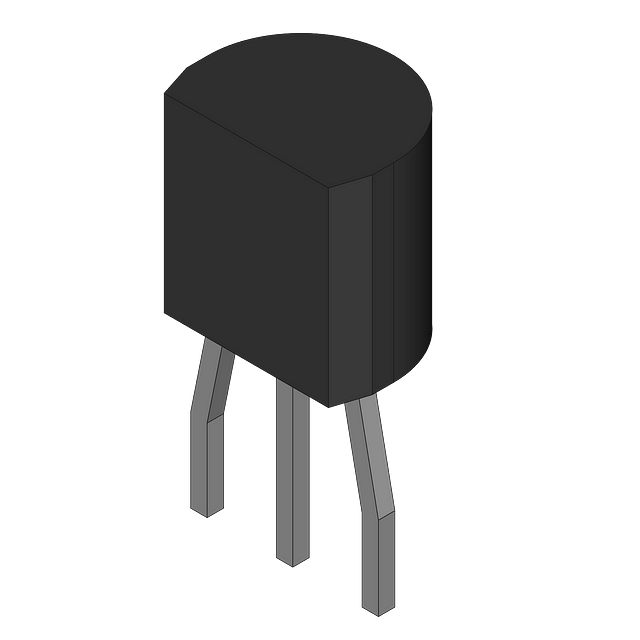

Images
