BC640G - onsemi
Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-92
Technical Details
| Case/Package | TO-92-3 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | -80V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | -500mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Country of Origin | Thailand |
| Current Rating | -500mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 150MHz |
| Gain Bandwidth Product | 150MHz |
| hFE Min | 40 |
| Introduction Date | 1994-10-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 500mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1.5W |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Polarity | PNP |
| Power Dissipation | 625mW |
| RoHS | Compliant |
| Transition Frequency | 150MHz |
| Voltage Rating (DC) | -80V |
Compliance
RoHS : Unconfirmed

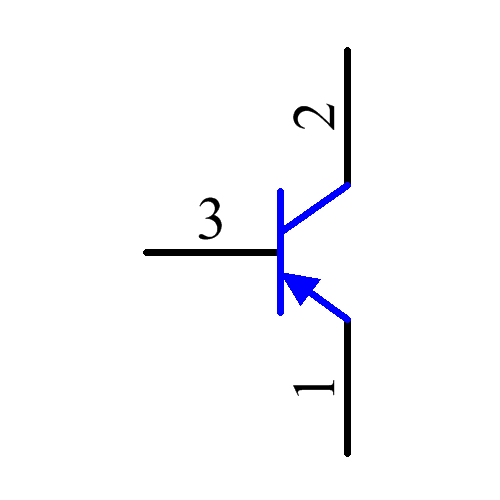

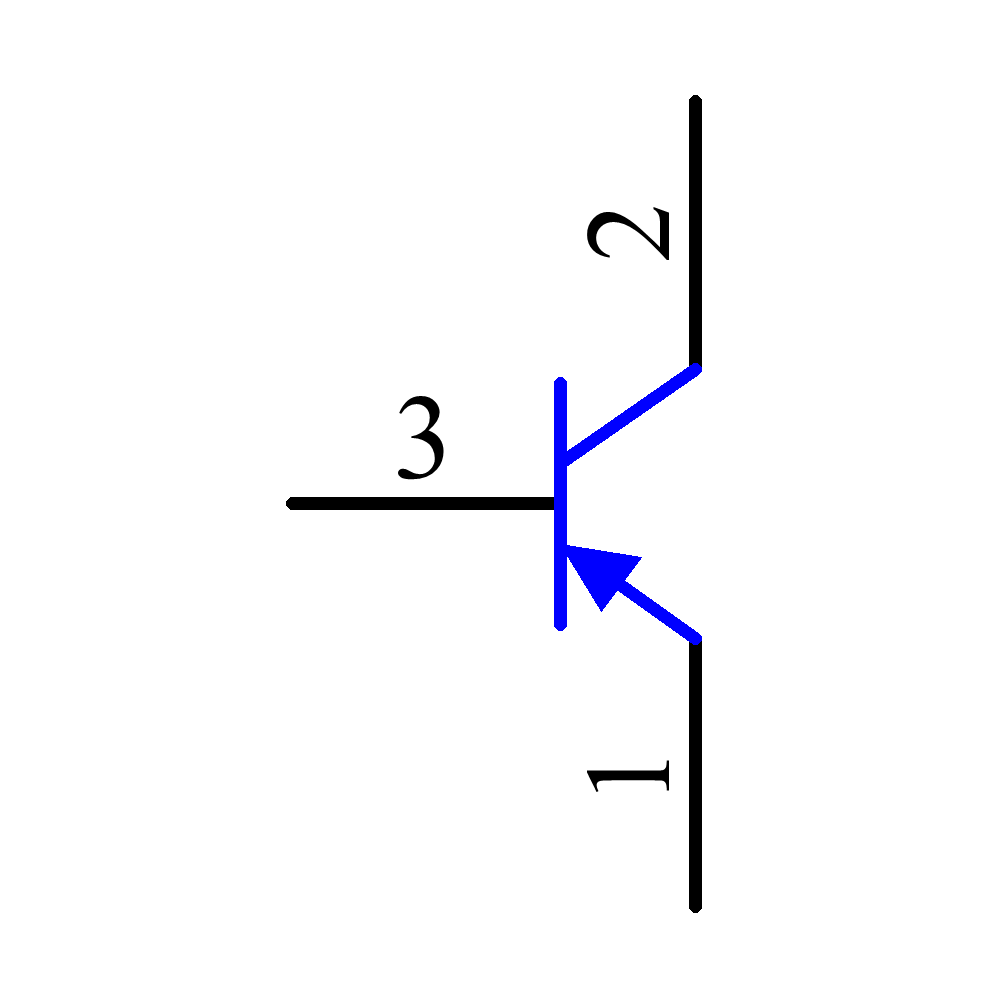

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| CDIL | Unknown | ||
| onsemi | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete |
