BC847A - onsemi
Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon
Technical Details
| Case/Package | SOT-23-3 |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 6V |
| Gain Bandwidth Product | 100MHz |
| Height | 1.2mm |
| hFE Min | 110 |
| Introduction Date | 1994-01-01 |
| Lifecycle Status | Obsolete |
| Max Collector Current | 100mA |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 310mW |
| RoHS | Non-Compliant |
| Transition Frequency | 300MHz |
Compliance
RoHS : Unconfirmed

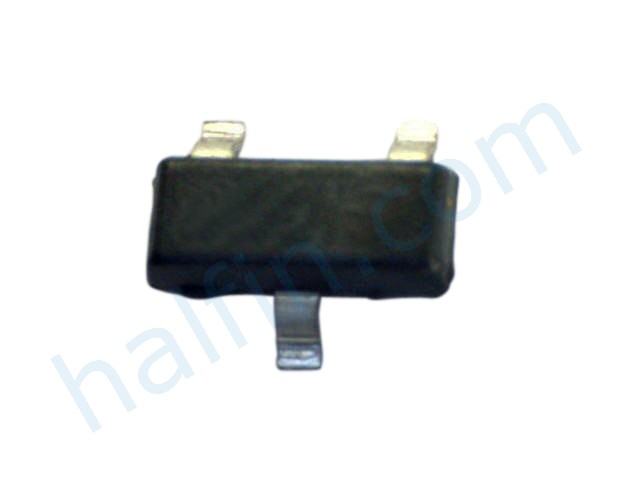

Images
