BC856BLT1 - onsemi
Cut Tape (CT) Single 3 EAR99 Bipolar (BJT) Transistor -100mA 300mW 100MHz -50V
Technical Details

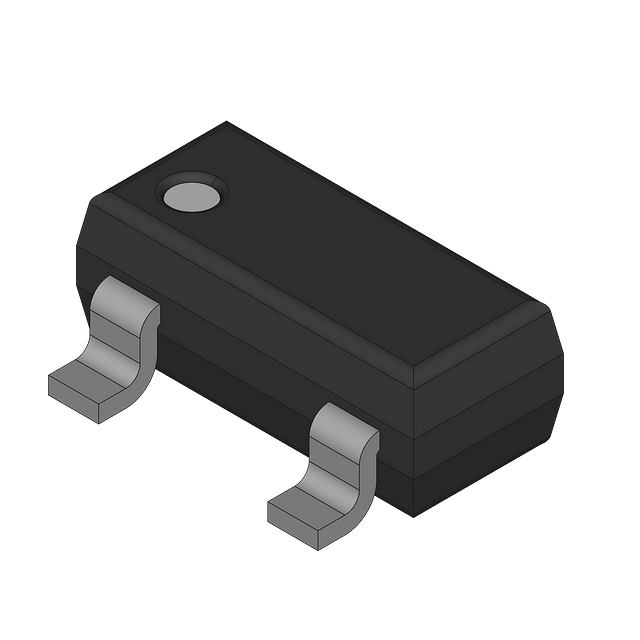

| Case/Package | SOT-23-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | -50V |
| Collector Emitter Saturation Voltage | -650mV |
| Collector Emitter Voltage (VCEO) | 65V |
| Contact Plating | Lead, Tin |
| Country of Origin | Mainland China |
| Current Rating | -100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 100MHz |
| hFE Min | 220 |
| Introduction Date | 1994-05-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape and Reel |

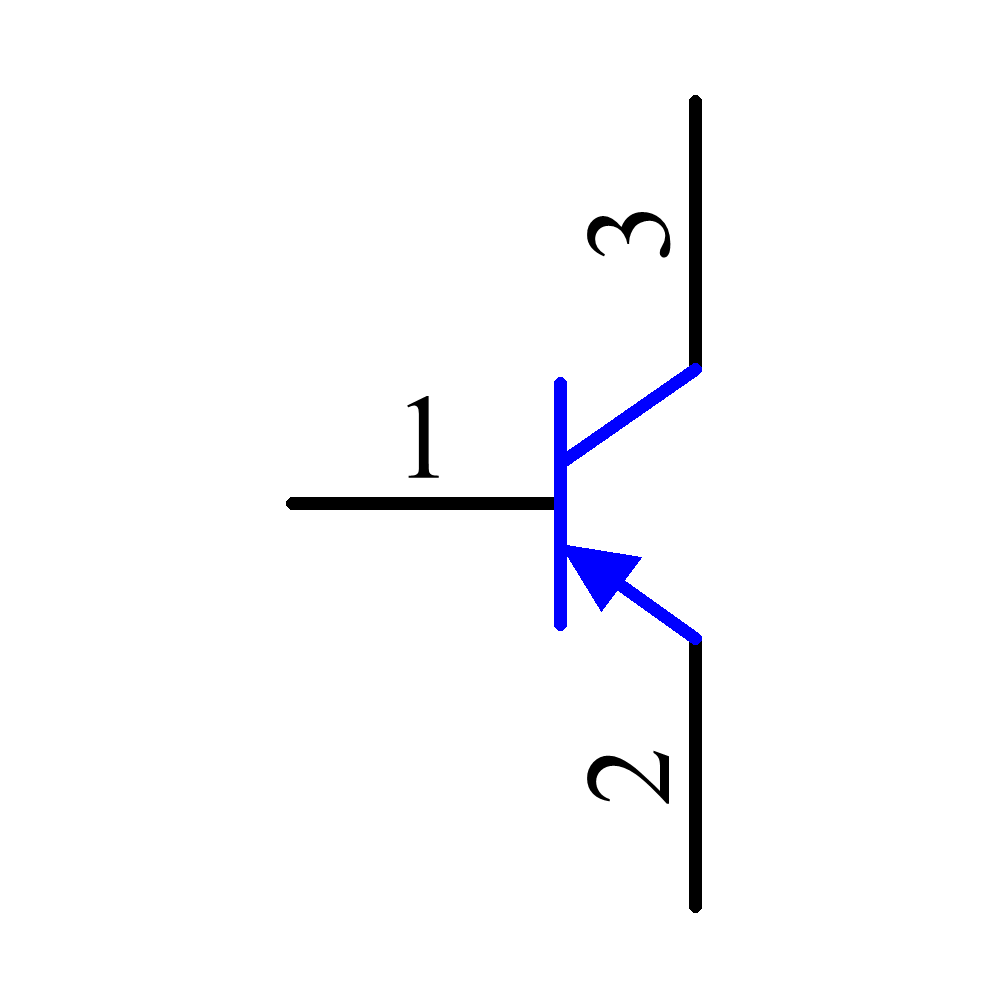

| Polarity | PNP |
| Power Dissipation | 300mW |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 100MHz |
| Voltage Rating (DC) | -65V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
