Discrete Semiconductors > Transistors > BJTs

BC857BTT1G - onsemi

Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon

Technical Details

Case/Package	SOT-416
China RoHS	Compliant
Collector Base Voltage (VCBO)	50V
Collector Emitter Breakdown Voltage	45V
Collector Emitter Saturation Voltage	-650mV
Collector Emitter Voltage (VCEO)	45V
Contact Plating	Tin
Country of Origin	Mainland China
Current Rating	-100mA
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	100MHz
Gain Bandwidth Product	100MHz
Height	900µm
hFE Min	220
Introduction Date	2000-03-01
Lead Free	Lead Free
Length	1.65mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	45V
Max Collector Current	100mA
Max Frequency	100MHz
Max Operating Temperature	150°C
Max Power Dissipation	300mW
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Tape and Reel
Polarity	PNP
Power Dissipation	300mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|85
Transition Frequency	100MHz
Voltage Rating (DC)	-45V
Width	900µm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi BC857BTT1G | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

Symbol

BC857BTT1G Symbol - onsemi

BC857BTT1G Symbol - onsemi

BC857BTT1G Symbol - onsemi

BC857BTT1G Symbol - onsemi

‹ ›

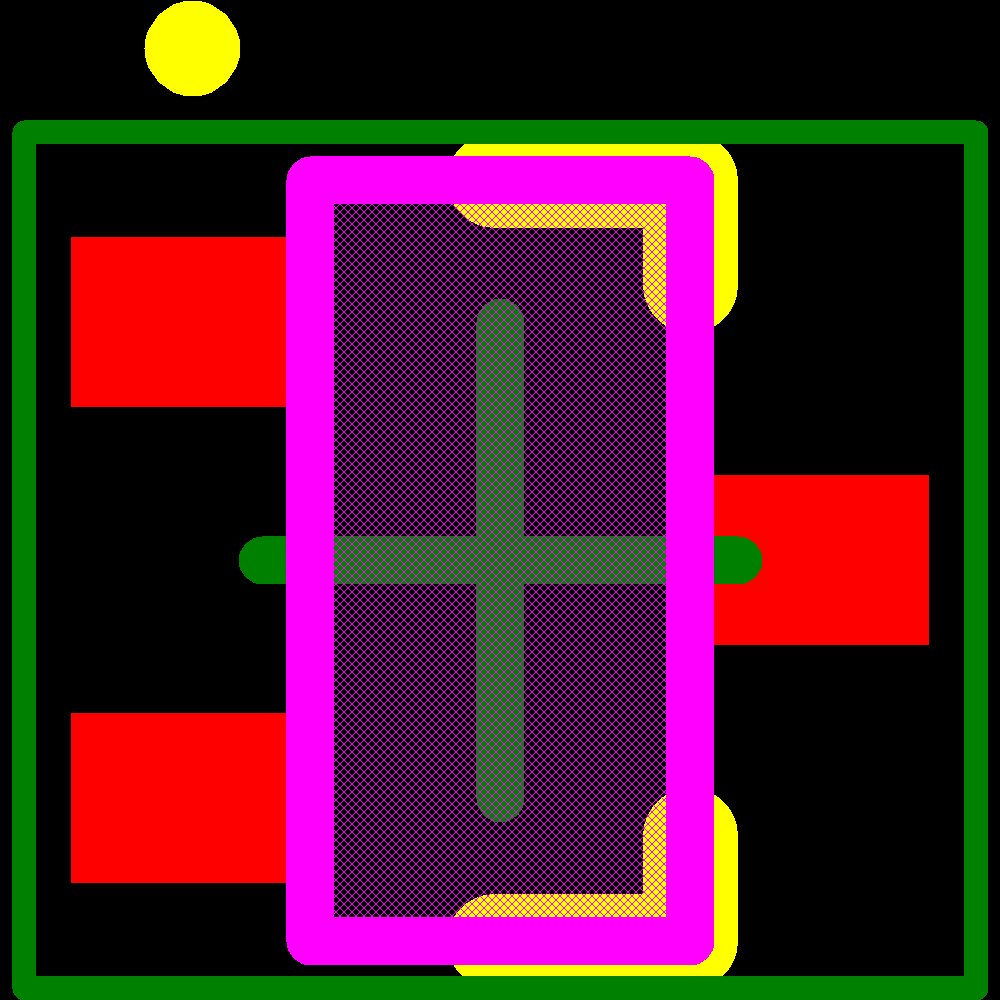

Footprint

BC857BTT1G Footprint - onsemi

BC857BTT1G Footprint - onsemi

BC857BTT1G Footprint - onsemi

BC857BTT1G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	BC857BTT1	Obsolete
Infineon	BC857BT	Obsolete
onsemi	2SA1774T1	Obsolete
ROHM	2SA1774TLR	Production
onsemi	2SA1774T1G	Production
Toshiba	2SA1832-Y	Production
onsemi	2SA1774	Production
Sanyo	12A01S	Obsolete
Toshiba	2SA1832-GR	Production
onsemi	NSL05TT1	Obsolete

See more alternatives See less alternatives

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

RS

DE: 3000

$

0.053

0.053

RS

DE: 3000

$

0.053

0.053

RS

DE: 3000

$

0.0284

Future Electronics

CA: 1257000

$

0.017

Future Electronics

CA: 276000

$

0.017

Future Electronics

CA: 0

$

0.017

Future Electronics

CA: 0

$

0.017

Farnell

DE: 27000

$

0.0312

Farnell

DE: 0

$

0.1529

0.0788

0.0399

0.0371

0.0341

Farnell

DE: 0

$

0.0371

0.0341

Chip One Stop

JP: 212852

$

0.0933

0.0933

0.055

0.0373

0.0206

Rochester Electronics

US: 54000

$

0.0374

0.031

0.0277

Avnet

US: 30000

$

0.0116

Verical

US: 212852

$

0.0504

Verical

US: 123000

$

0.0168

Verical

US: 33000

$

0.0144

Verical

US: 30000

$

0.0388

Verical

US: 15000

$

0.0388

Verical

US: 5985

$

0.0151

0.0145

Arrow Electronics

US: 123000

$

0.0167

Arrow Electronics

US: 33000

$

0.0144

Arrow Electronics

US: 5985

$

0.0273

0.0176

0.0174

0.0168

0.0151

0.0145

DigiKey

BC857BTT1GOSCT-ND

DE: 17935

$

0.1603

0.0974

0.0974

0.1603

0.038

0.038

DigiKey

BC857BTT1GOSDKR-ND

DE: 17935

$

0.1603

0.0974

0.0974

0.1603

0.038

0.038

DigiKey

BC857BTT1GOSTR-ND

DE: 15000

$

0.0312

Mouser

US: 24276

$

0.15

0.092

0.092

0.056

0.036

0.021

EBV Elektronik

EU: 6174000

$

Avnet Silica

EU: 0

$

Onlinecomponents.com

US: 0

$

0.0229

Master Electronics

US: 0

$

0.0229

Newark

US: 27000

$

0.033

element14 APAC

SG: 27000

$

0.0243

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Component Stockers USA

US: 41259

$

0.02

Win Source

74152-BC857BTT1G

CN: 2570

$

0.0233

Worldway Electronics

HK: 28784

$

0.0315

0.0315

0.0305

0.0289

0.0289

UnikeyIC

SG: 31680

$

0.0888

0.0198

0.0184

Fmall Co., Limited

HK: 10790

$

0.0217

0.0217

0.0217

0.0203

0.0191

0.0175

AAA CHIPS

HK: 29749

$

0.007

0.0068

0.0068

0.0066

0.0066

0.0066

Chipsmall Limited

CN: 1086852

$

0.138

0.092

0.092

0.0552

0.046

0.046

ZTZ Technology Limited

CN: 226990

$

0.0294

0.0294

0.0294

0.0294

0.0294

0.0294

Anlinkda

HK: 123956

$

0.044

0.039

0.039

0.036

0.031

0.024

RC Electronics

CN: 120653

$

0.044

0.04

0.04

0.04

0.03

0.03

Quest

US: 13609

$

0.0728

0.0728

0.0728

0.0455

0.0273

0.0137

Lixinc

CN: 608

$

0.14

0.14

0.14

0.14

0.14

0.0269

TME

PL: 1897

$

0.141

0.0975

0.063

0.0518

0.0291

0.0197

Classic Components

US: 7026000

$

Classic Components

US: 150000

$

Classic Components

US: 3060

$

ODG (Origin Data Global)

CN: 29994

$

0.0512

0.041

Bison Technologies

BC857BTT1G-157983

CN: 20000

$

0.01

0.01

0.01

Heisener Electronics

CN: 7527

$

XingHuan International

CN: 55000

$

ComSIT Distribution GmbH

DE: 3000

$

Digi-ic_SMART PIONEER

HK: 4088

$

Lingto Electronic Ltd.

CN: 17816

$

0.17

0.1615

0.1615

0.153

0.1513

0.1496

Sourcengine

US: 1257000

$

Abacus Technologies

US: 0

$

NAC Semi

US: 4938000

$

0.06
