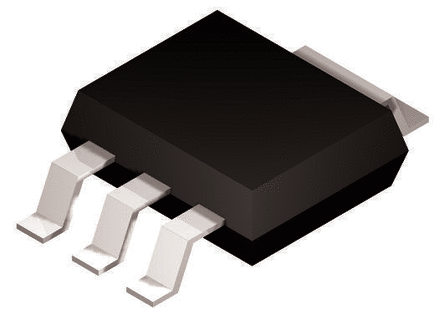

BCP56-10T1G - onsemi

Bipolar (BJT) Single Transistor, General Purpose, NPN, 80 V, 1 A, 1.5 W, SOT-223, Surface Mount

Technical Details

Case/Package	SOT-223-4
China RoHS	Compliant
Collector Base Voltage (VCBO)	100V
Collector Emitter Breakdown Voltage	80V
Collector Emitter Saturation Voltage	500mV
Collector Emitter Voltage (VCEO)	80V
Contact Plating	Tin
Current Rating	1A
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Frequency	130MHz
Gain Bandwidth Product	130MHz
Height	1.65mm
hFE Min	63
Lead Free	Lead Free
Length	6.7mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	80V
Max Collector Current	1A
Max Frequency	130MHz
Max Operating Temperature	150°C
Max Power Dissipation	1.5W
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	4
Number of Terminals	4
Packaging	Tape and Reel
Polarity	NPN
Power Dissipation	1.5W
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080
Transition Frequency	130MHz
Voltage Rating (DC)	80V
Width	3.7mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

onsemi BCP56-10T1G | RS

RS

Datasheets

Lifecycle Status Indicator

Production

Symbol

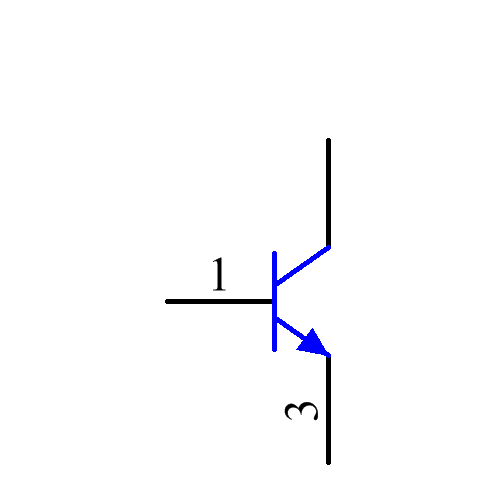

BCP56-10T1G Symbol - onsemi

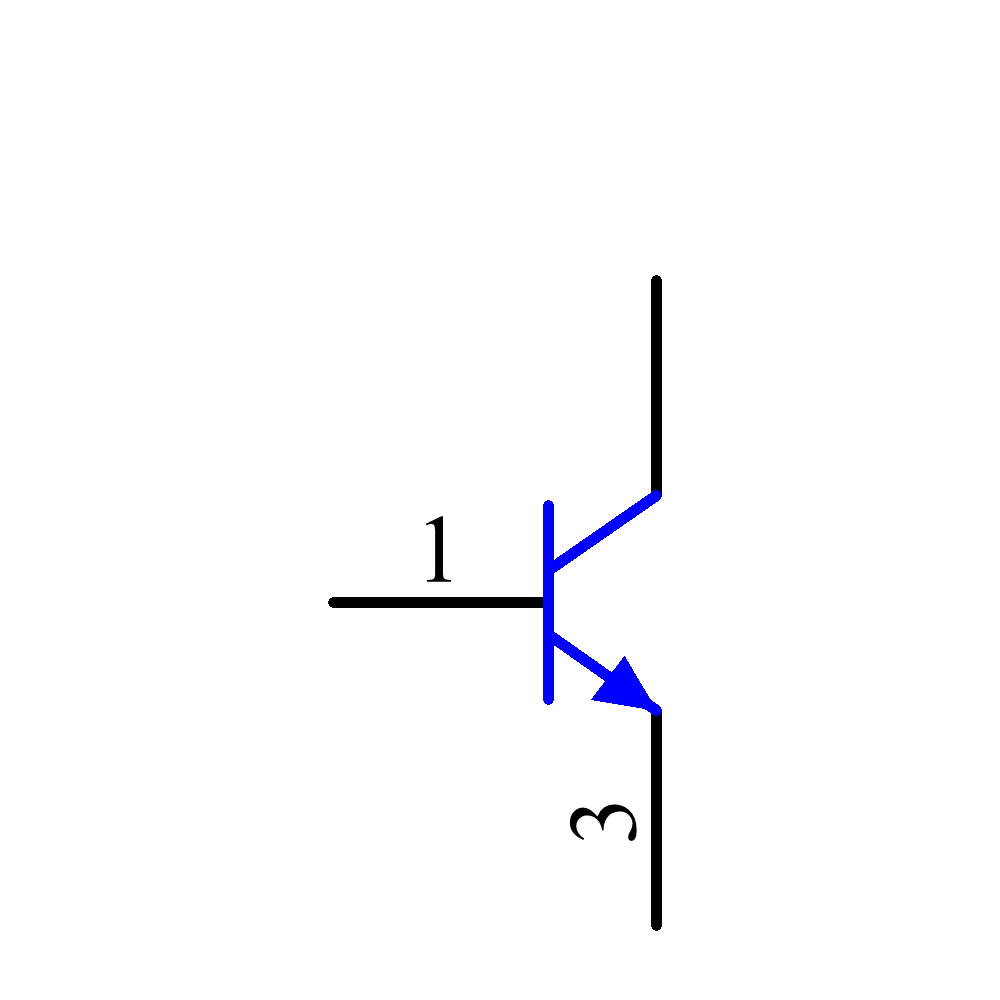

BCP56-10T1G Symbol - onsemi

BCP56-10T1G Symbol - onsemi

BCP56-10T1G Symbol - onsemi

‹ ›

Footprint

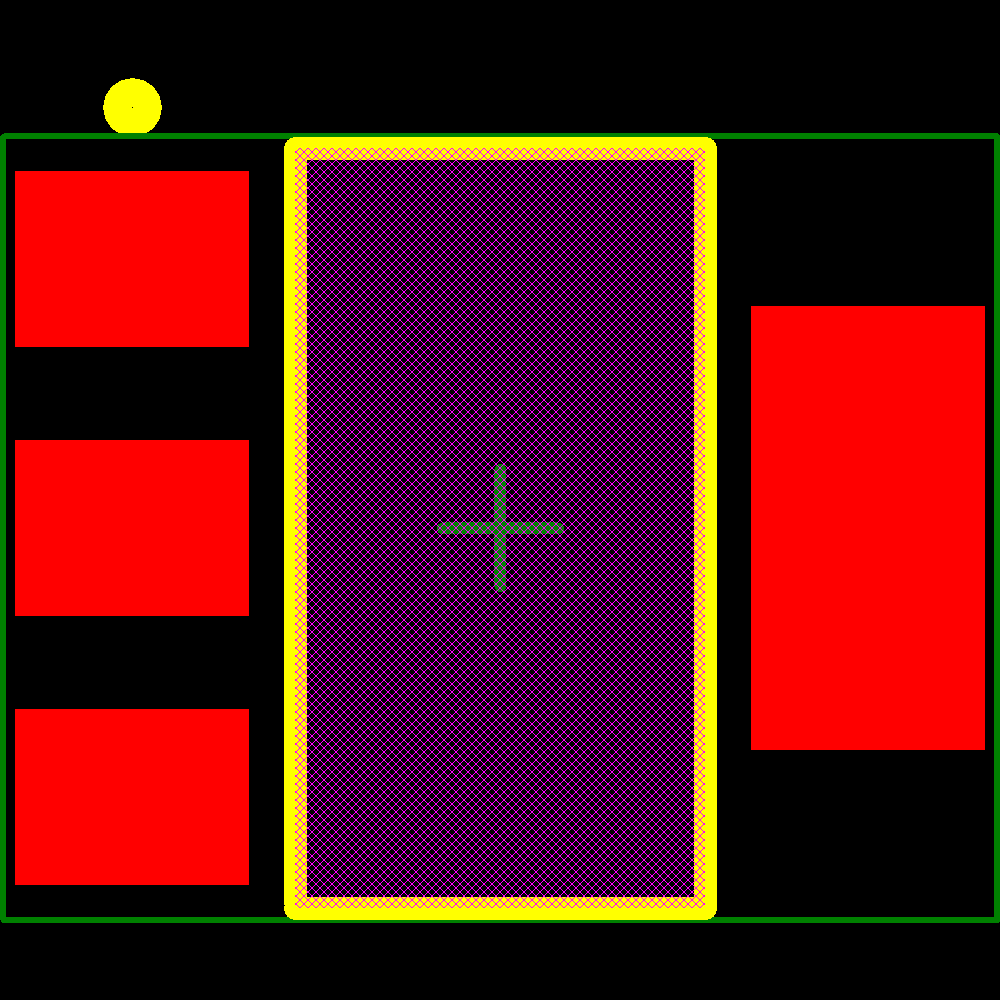

BCP56-10T1G Footprint - onsemi
