BCP69T1 - onsemi
Cut Tape (CT) Single 4 EAR99 Bipolar (BJT) Transistor -1A 1.5W 60MHz -25V
Technical Details
| Case/Package | SOT-223-4 |
| Collector Base Voltage (VCBO) | -25V |
| Collector Emitter Breakdown Voltage | 20V |
| Collector Emitter Saturation Voltage | -500mV |
| Collector Emitter Voltage (VCEO) | 20V |
| Country of Origin | Malaysia |
| Current Rating | -1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 60MHz |
| hFE Min | 60 |
| Introduction Date | 1992-10-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 20V |
| Max Collector Current | 1A |
| Max Operating Temperature | 140°C |
| Max Power Dissipation | 1.5W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 60MHz |
| Voltage Rating (DC) | -20V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

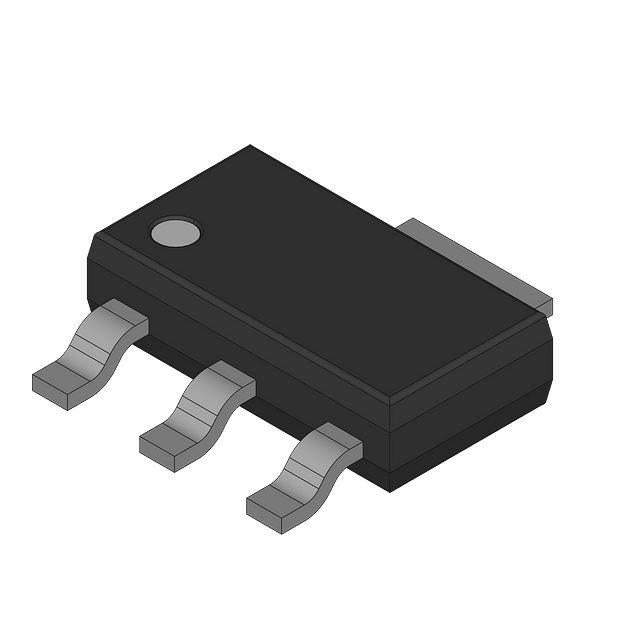

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Infineon | Obsolete | ||
| onsemi | Production | ||
| Nexperia | Production | ||
| Nexperia | Production | ||
| Diodes Inc. | Obsolete | ||
| Nexperia | Production | ||
| NXP Semiconductors | Obsolete |
