Technical Details

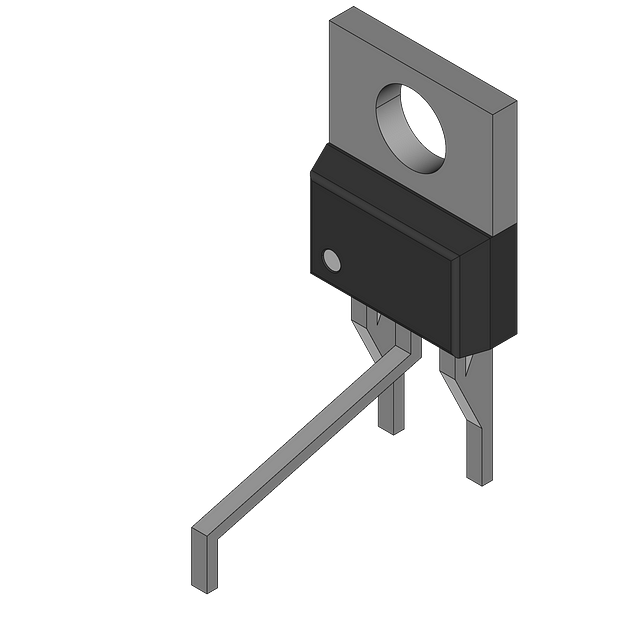

| Case/Package | TO-126 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 45V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Current Rating | 1.5A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 14.2mm |
| hFE Min | 63 |
| Introduction Date | 2000-12-20 |
| Lead Free | Lead Free |
| Length | 8.3mm |
| Lifecycle Status | EOL |
| Manufacturer Lifecycle Status | LAST SHIPMENTS |
| Max Collector Current | 1.5A |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 13W |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 1.25W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 50MHz |
| Voltage Rating (DC) | 45V |
| Weight | 761mg |
| Width | 3.45mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
