BD139G - onsemi

1.5 A, 80 V NPN Power Bipolar Junction Transistor. ONSSPCTRNSTLT1T0R;

Technical Details

Case/Package	TO-225
China RoHS	Compliant
Collector Base Voltage (VCBO)	100V
Collector Emitter Breakdown Voltage	80V
Collector Emitter Saturation Voltage	500mV
Collector Emitter Voltage (VCEO)	80V
Contact Plating	Tin
Country of Origin	Mainland China
Current Rating	1.5A
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	5V
Height	13.64mm
hFE Min	25
Introduction Date	1999-01-01
Lead Free	Lead Free
Length	7.74mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	1.5A
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	150°C
Max Power Dissipation	12.5W
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Bulk
Polarity	NPN
Power Dissipation	1.25W
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080, 8541290080\|8541290080\|8541290080, 8541290080\|8541290080\|8541290080\|8541290080
Voltage Rating (DC)	80V
Weight	4.535924g
Width	2.66mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi BD139G | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

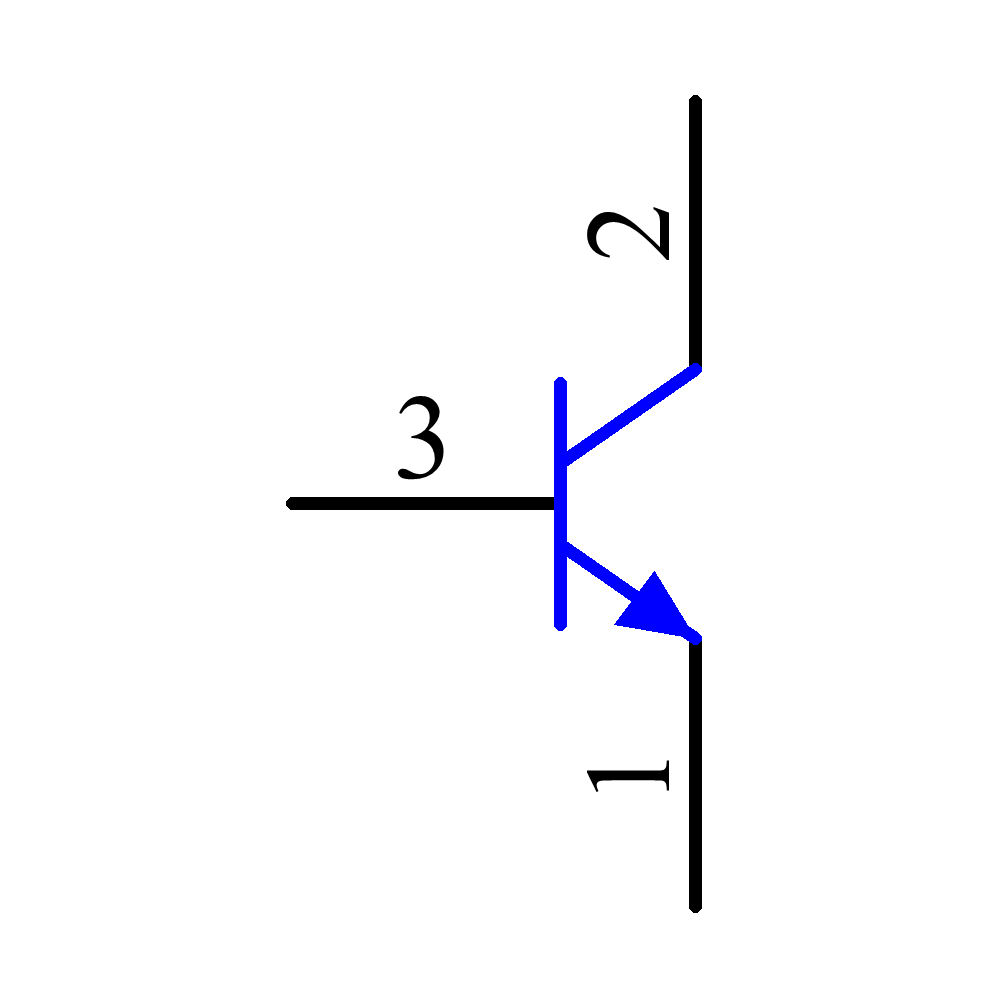

Symbol

BD139G Symbol - onsemi

BD139G Symbol - onsemi

BD139G Symbol - onsemi

BD139G Symbol - onsemi

‹ ›

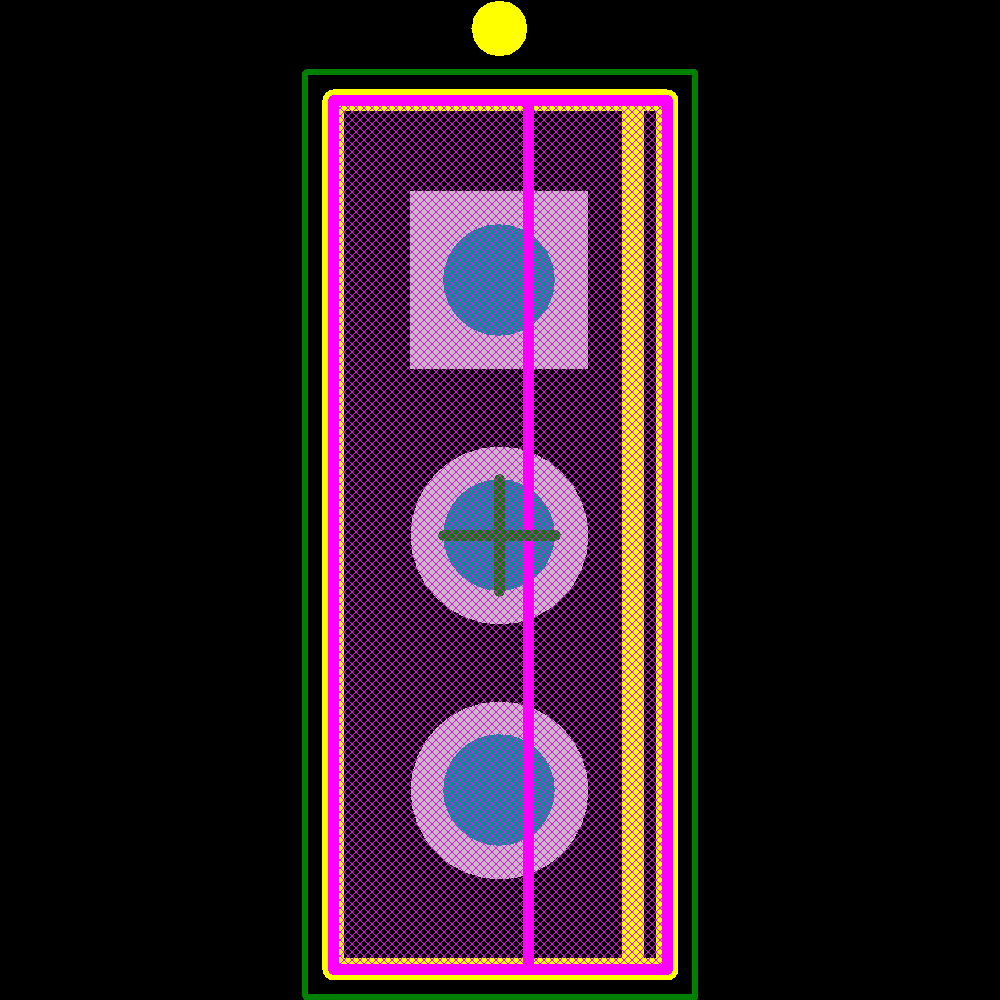

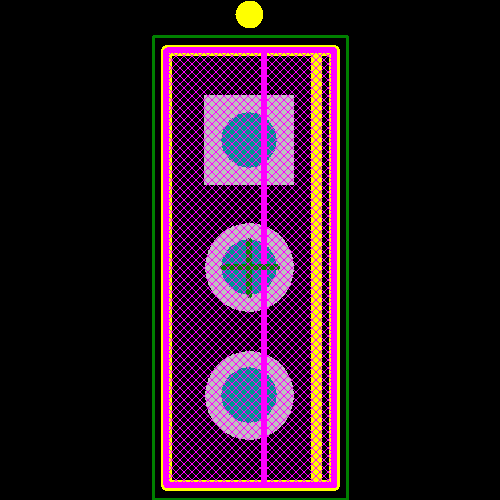

Footprint
