Technical Details

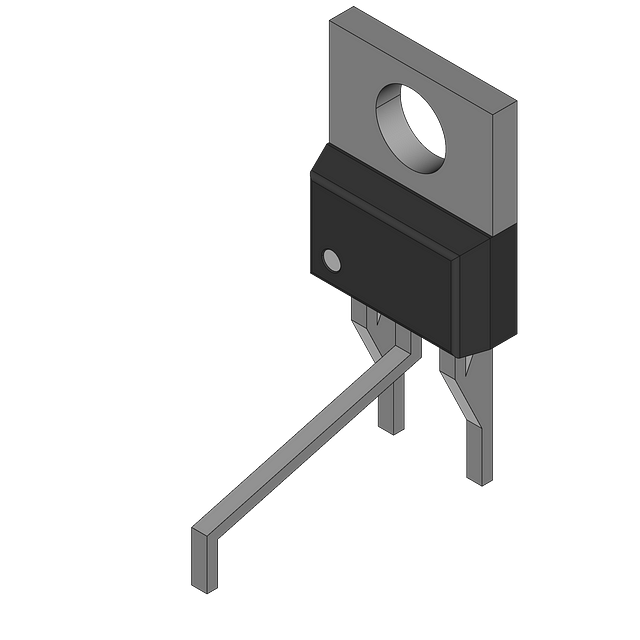

| Case/Package | TO-126 |
| Collector Base Voltage (VCBO) | 32V |
| Collector Emitter Breakdown Voltage | 32V |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 32V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Current Rating | 4A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 3MHz |
| Gain Bandwidth Product | 3MHz |
| hFE Min | 50 |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 4A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 36W |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Polarity | NPN |
| Power Dissipation | 36W |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 3MHz |
| Voltage Rating (DC) | 32V |
| Weight | 761mg |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
