Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 2.5V |
| Collector Emitter Voltage (VCEO) | 80V |
| Country of Origin | Mainland China |
| Current Rating | -10A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 15.75mm |
| hFE Min | 750 |
| Introduction Date | 1995-07-01 |
| Lead Free | Lead Free |
| Length | 10.53mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 10A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 70W |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | PNP |
| Power Dissipation | 70W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Transition Frequency | 3MHz |
| Voltage Rating (DC) | -80V |
| Weight | 6.000006g |
| Width | 4.83mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

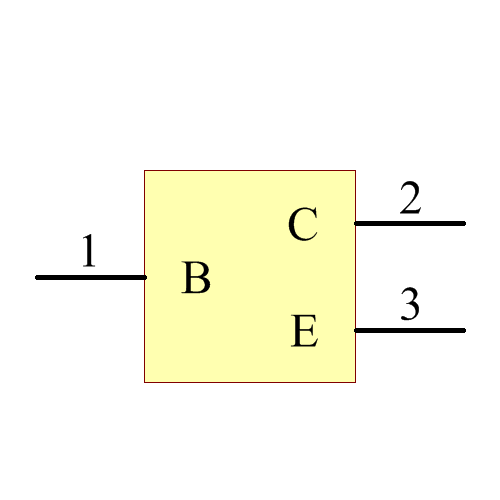

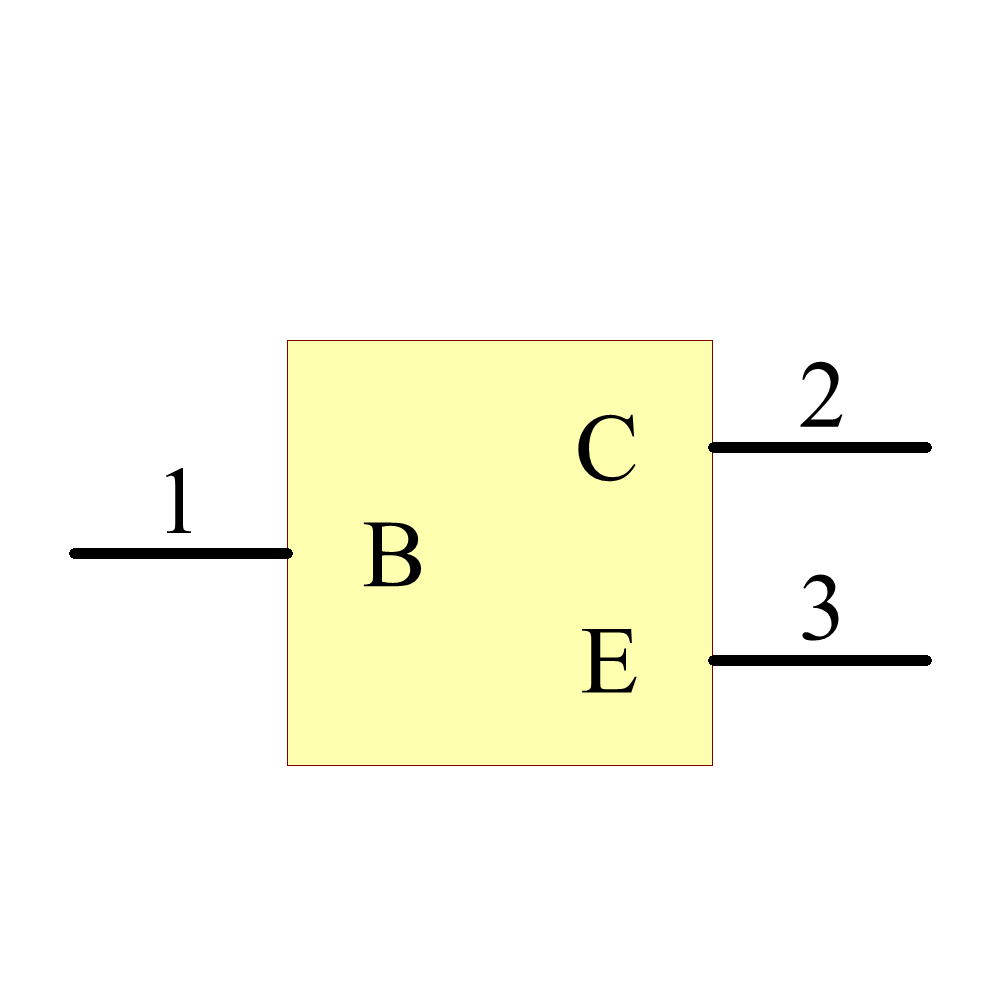

Images
