BDX54C - onsemi
Tube Through Hole PNP - Darlington Single Bipolar (BJT) Transistor 750 @ 3A 3V -8A 65W -100V
Technical Details
| Case/Package | TO-220AB |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | -100V |
| Collector Emitter Saturation Voltage | 2V |
| Collector Emitter Voltage (VCEO) | 100V |
| Contact Plating | Tin |
| Continuous Collector Current | -8A |
| Country of Origin | Mainland China |
| Current Rating | -8A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | -5V |
| Height | 6.35mm |
| hFE Min | 750 |
| Introduction Date | 1995-07-01 |
| Lead Free | Lead Free |
| Length | 6.35mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 100V |
| Max Collector Current | 8A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 60W |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Polarity | PNP |
| Power Dissipation | 60W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 20MHz |
| Voltage Rating (DC) | -100V |
| Weight | 1.8g |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

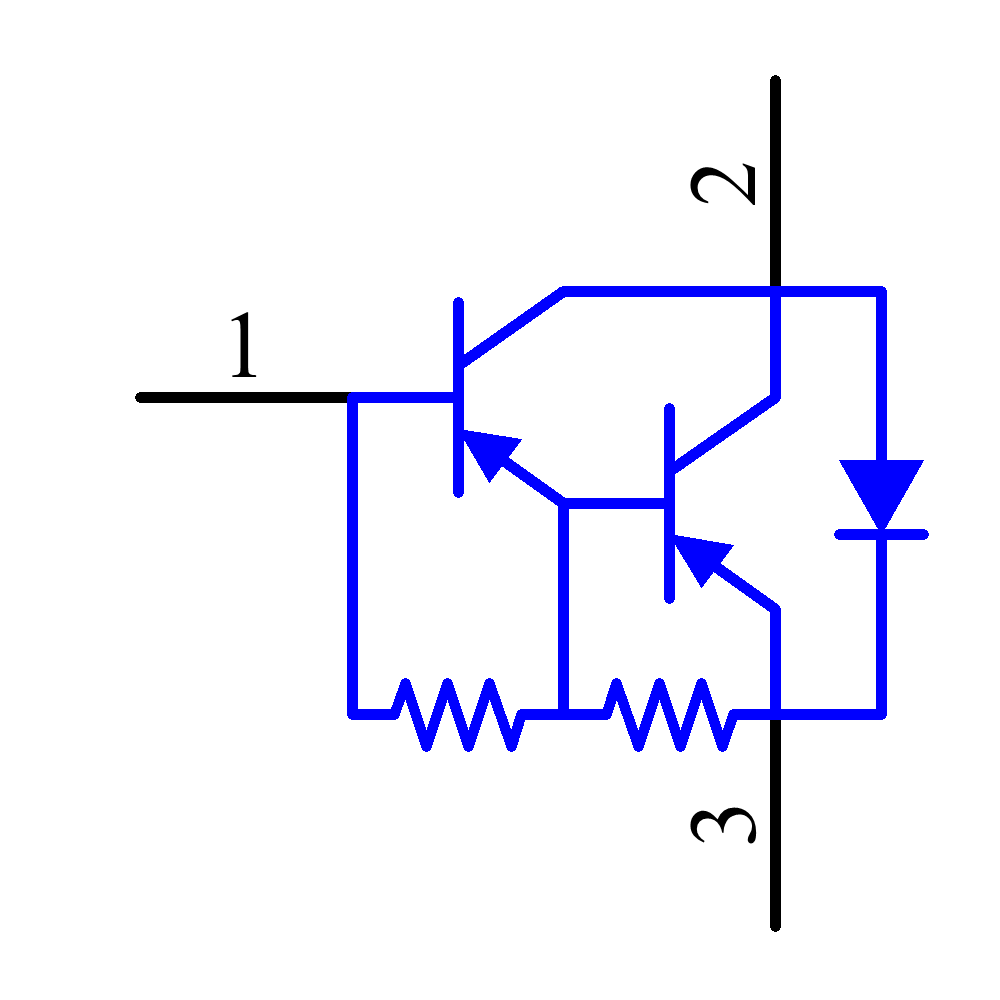

Images
