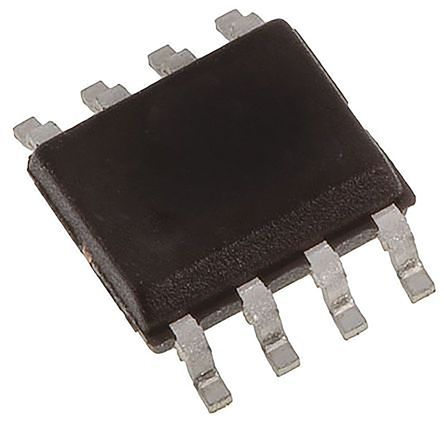

CAT24C512WI-GT3 - onsemi
EEPROM Serial-I2C 512K-bit 64K x 8 2.5V/3.3V/5V 8-Pin SOIC N T/R
Technical Details
| Case/Package | SOP |
| China RoHS | Compliant |
| Contact Plating | Gold |
| Country of Origin | Thailand |
| Density | 512kb |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 1MHz |
| Halogen Free | Halogen Free |
| Height | 1.75mm |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.51 |
| Interface | Serial |
| Introduction Date | 2011-05-20 |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Current | 3mA |
| Max Supply Voltage | 5.5V |
| Memory Size | 64kB |
| Memory Type | EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Supply Current | 2.5mA |
| Number of Circuits | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Number of Words | 64000 |
| Operating Supply Voltage | 5V |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542320050, 8542320050|8542320050|8542320050|8542320050|8542320050 |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
