CAT3649HV3-GT2 - onsemi
CAT3649 Series 6-Channel 5.5 V 25 mA PWM 32 Dimming Level LED Driver - TQFN-16
Technical Details
| China RoHS | Compliant |
| Contact Plating | Gold |
| Country of Origin | Thailand |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Efficiency | 92% |
| Frequency | 1.6MHz |
| Halogen Free | Halogen Free |
| Height | 800µm |
| Height - Seated (Max) | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2010-11-16 |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Max Supply Current | 4mA |
| Max Supply Voltage | 5.5V |
| Min Input Voltage | 2.4V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Number of Characters | 6 |
| Number of Circuits | 1 |
| Number of Outputs | 6 |
| Number of Pins | 16 |
| Number of Segments | 6 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 3.6V |
| Output Current | 25mA |
| Output Voltage | 7V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Switching Frequency | 200kHz |
| Temperature Grade | Industrial |
| Terminal Pitch | 500µm |
| Topology | Charge Pump |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

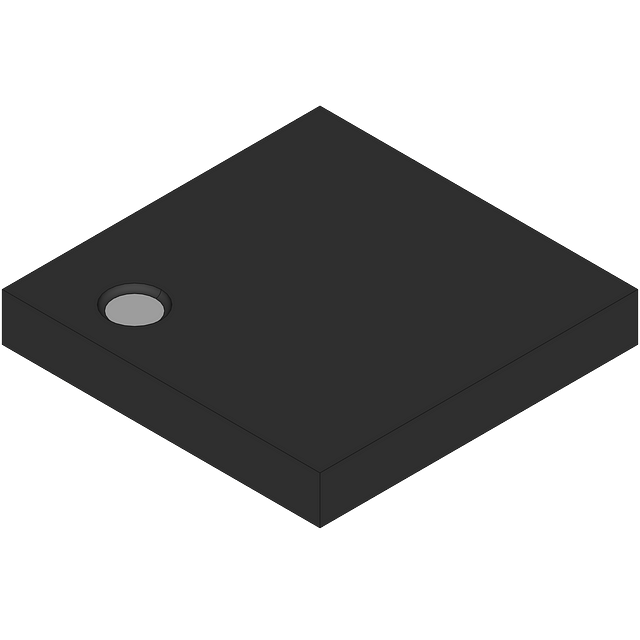

Images
