Technical Details
| Case/Package | SOP |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Country of Origin | Philippines |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Halogen Free | Halogen Free |
| Height - Seated (Max) | 2.65mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2006-09-25 |
| Lead Free | Lead Free |
| Length | 15.3mm |
| Lifecycle Status | Obsolete |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Number of Bits | 16 |
| Number of I/Os | 16 |
| Number of Pins | 24 |
| Number of Ports | 2 |
| Number of Terminals | 24 |
| Operating Supply Voltage | 3V |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 7.47mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

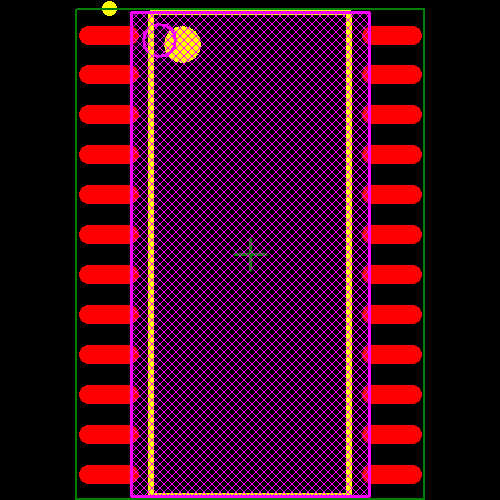

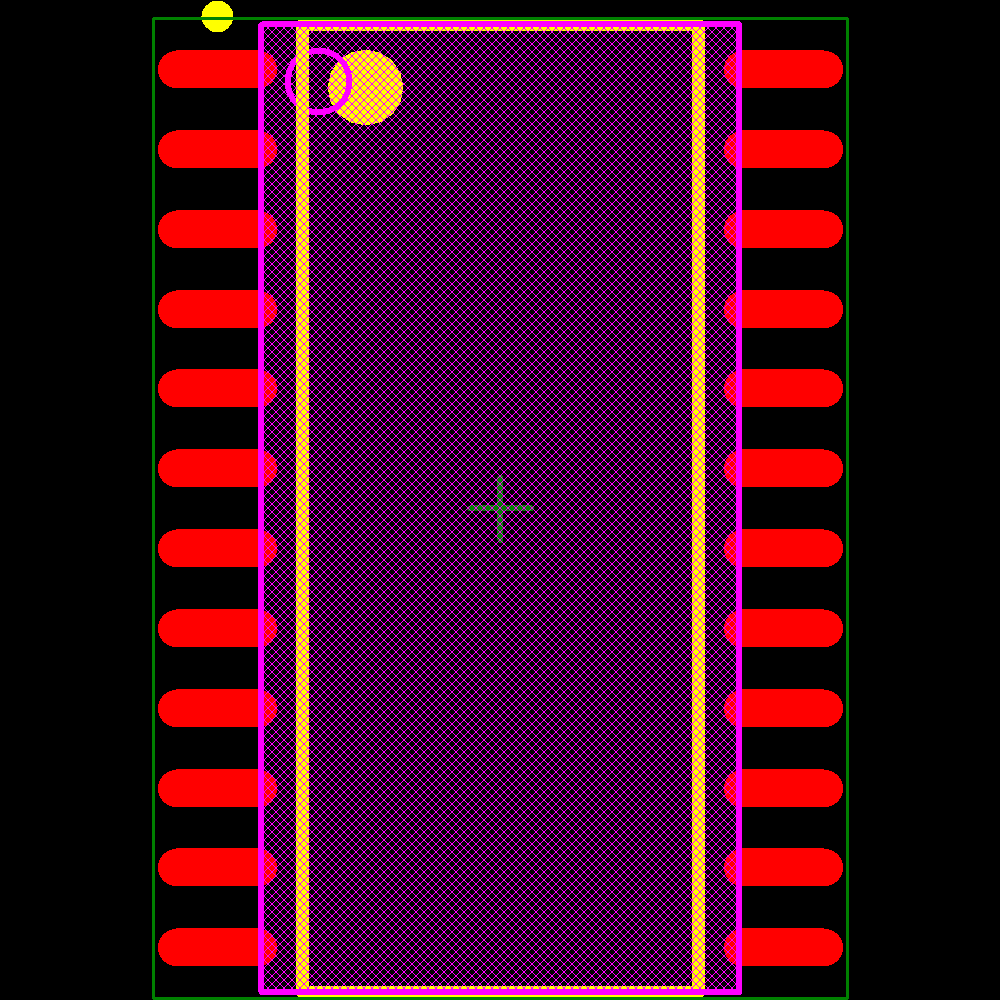

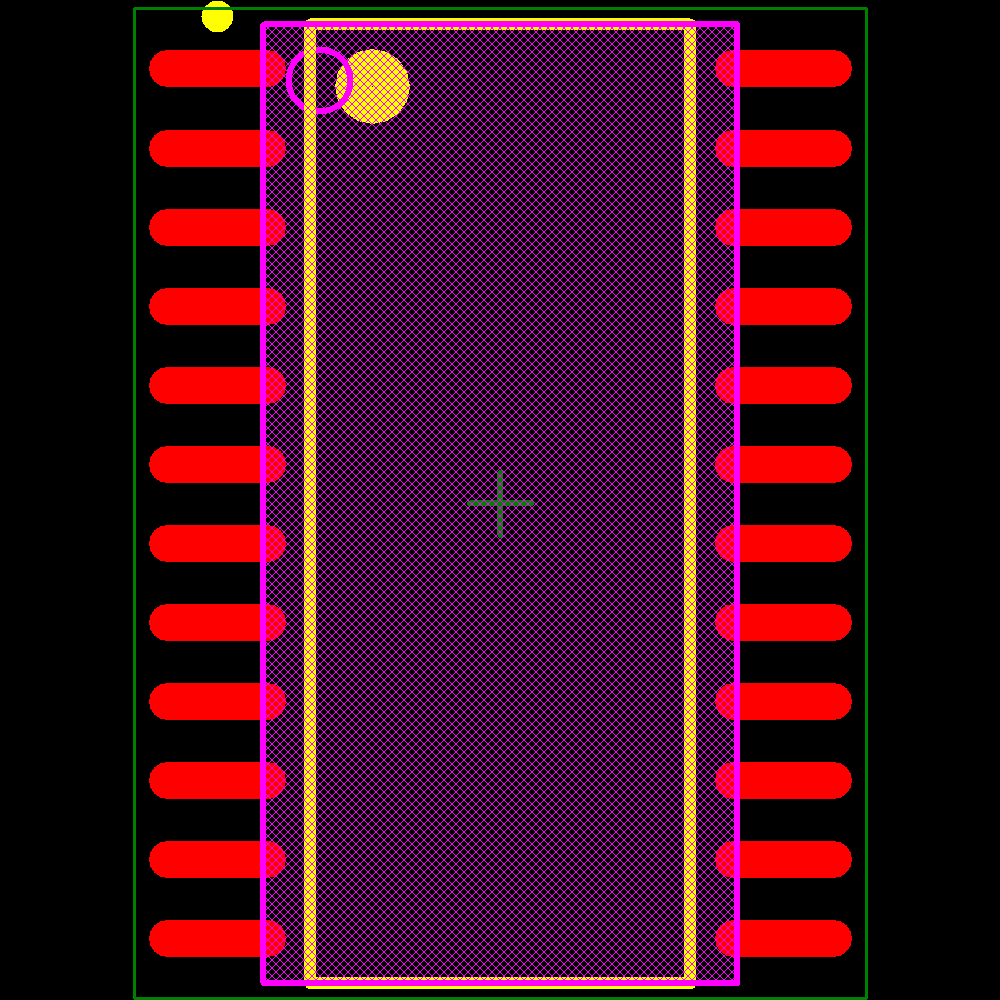

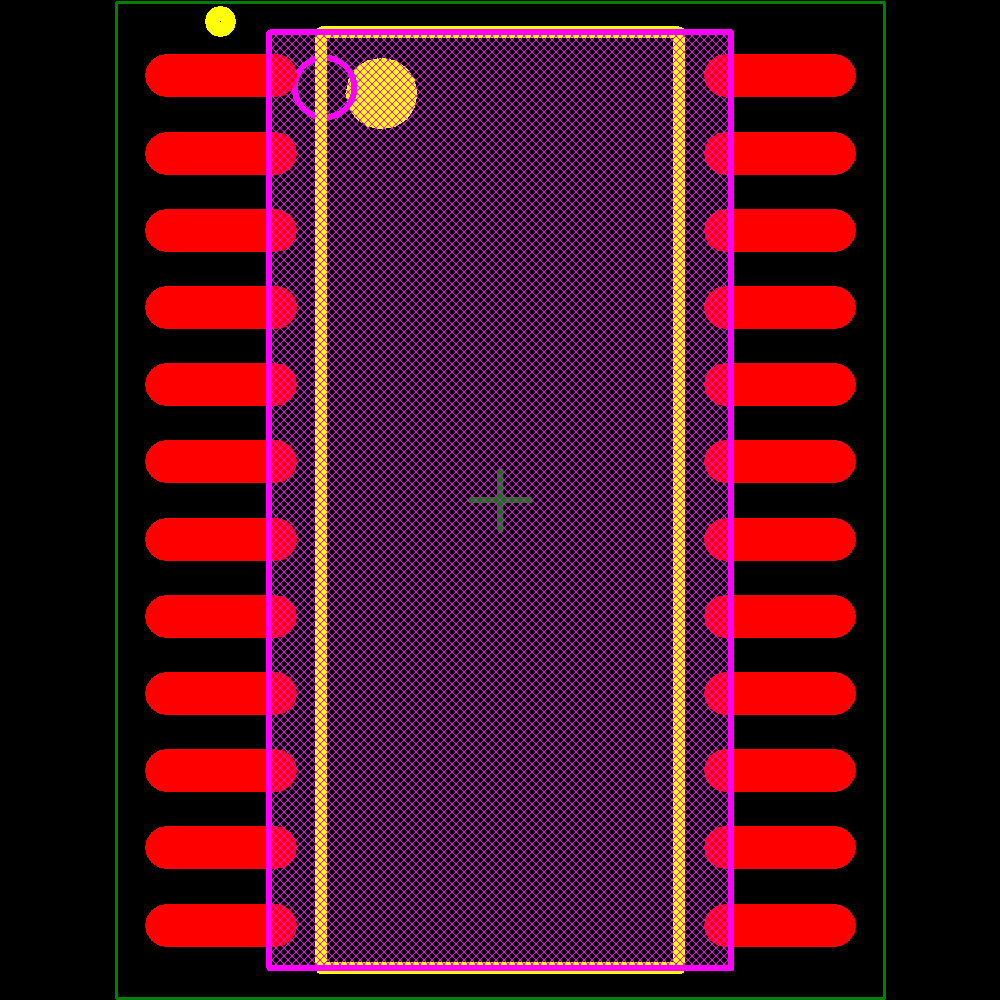

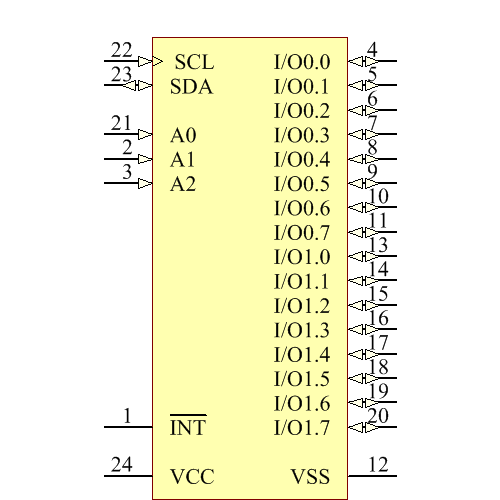

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | EOL | ||
| onsemi | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete |
