CM1213A-01SO - onsemi
CM1213 Series 10 V 0.85 pF Single Channel Low Capacitance ESD Protection Array
Technical Details
| Breakdown Voltage | 7.75V |
| Capacitance | 850fF |
| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 10V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Current Rating | 8µA |
| Depth | 1.4mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Forward Voltage | 950mV |
| Halogen Free | Halogen Free |
| Height | 1.11mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Interface | USB |
| Introduction Date | 2007-04-17 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 3.04mm |
| Lifecycle Status | EOL |
| Manufacturer Lifecycle Status | LAST SHIPMENTS |
| Max Breakdown Voltage | 9V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Reverse Leakage Current | 1µA |
| Min Breakdown Voltage | 6.5V |
| Min Operating Temperature | -40°C |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Lines | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Peak Pulse Power | 225mW |
| Peak Reverse Current | 1µA |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|85 |
| Termination | SMD/SMT |
| Width | 1.4mm |
| Working Voltage | 5.5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

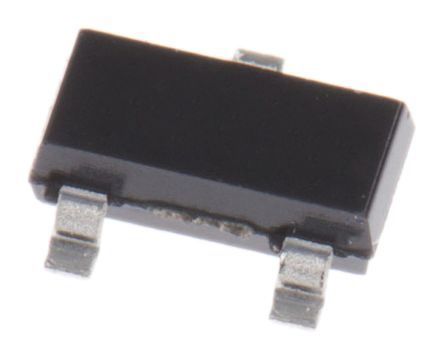

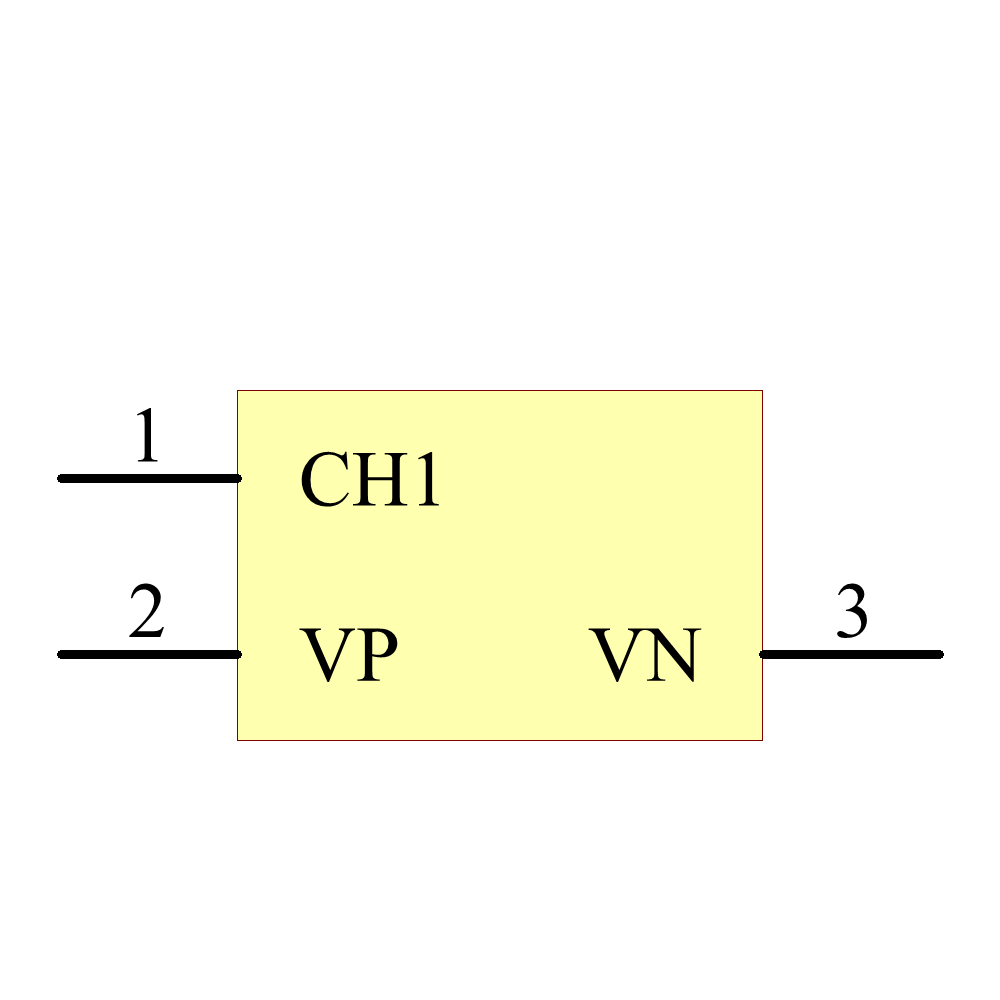

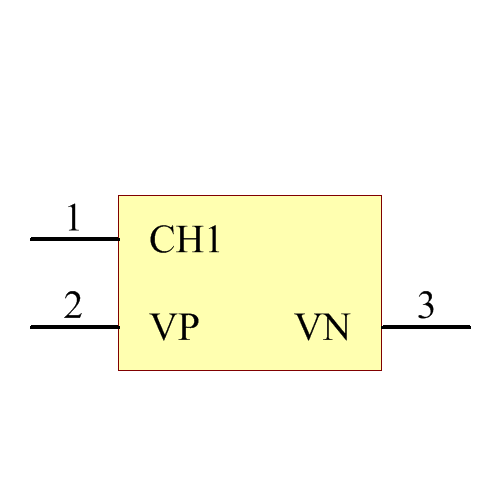

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Semtech | Production | ||
| Diodes Inc. | Obsolete | ||
| Protek Devices | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Protek Devices | Production | ||
| Littelfuse | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete |
