Technical Details
| Approvals | IEC |
| Breakdown Voltage | 6V |
| China RoHS | Compliant |
| Clamping Voltage | 9.2V |
| Contact Plating | Tin |
| Country of Origin | India |
| Current Rating | 100mA |
| Depth | 1.7mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8504.50.80.00 |
| Impedance | 100Ω |
| Introduction Date | 2009-02-25 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 4.1mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 85°C |
| Max Reverse Leakage Current | 1µA |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -40°C |
| Number of Bidirectional Channels | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Lines | 8 |
| Number of Pins | 16 |
| Operating Supply Voltage | 5.5V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Polarity | Bidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5.5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Voltage Rating | 5.5V |
| Width | 1.8mm |
| Working Voltage | 5.5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

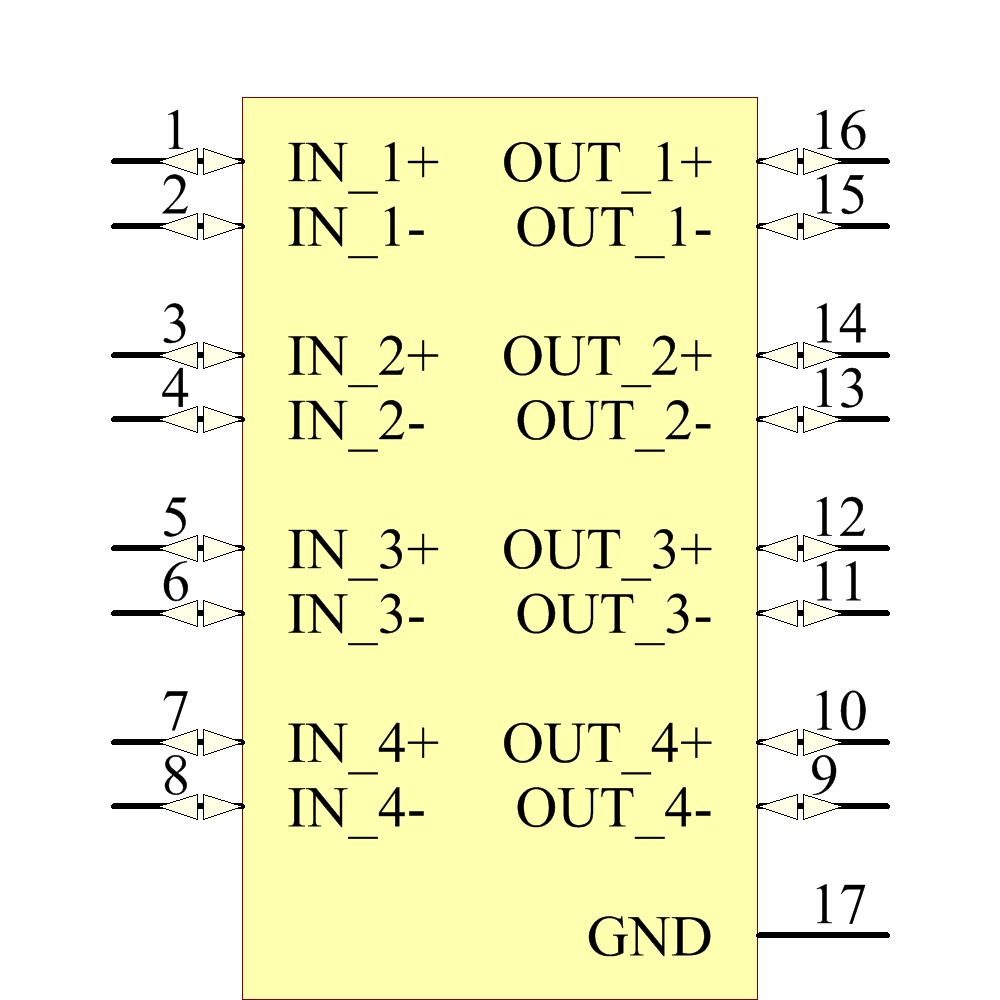

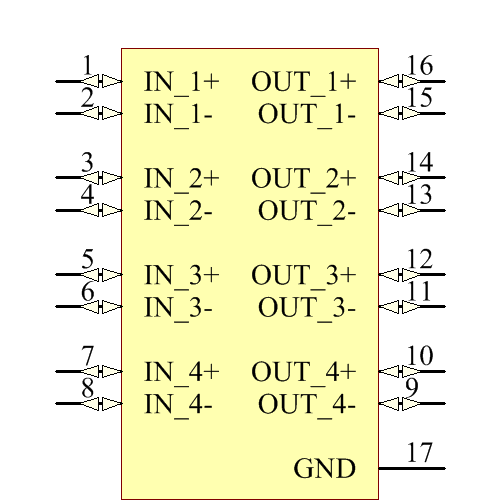

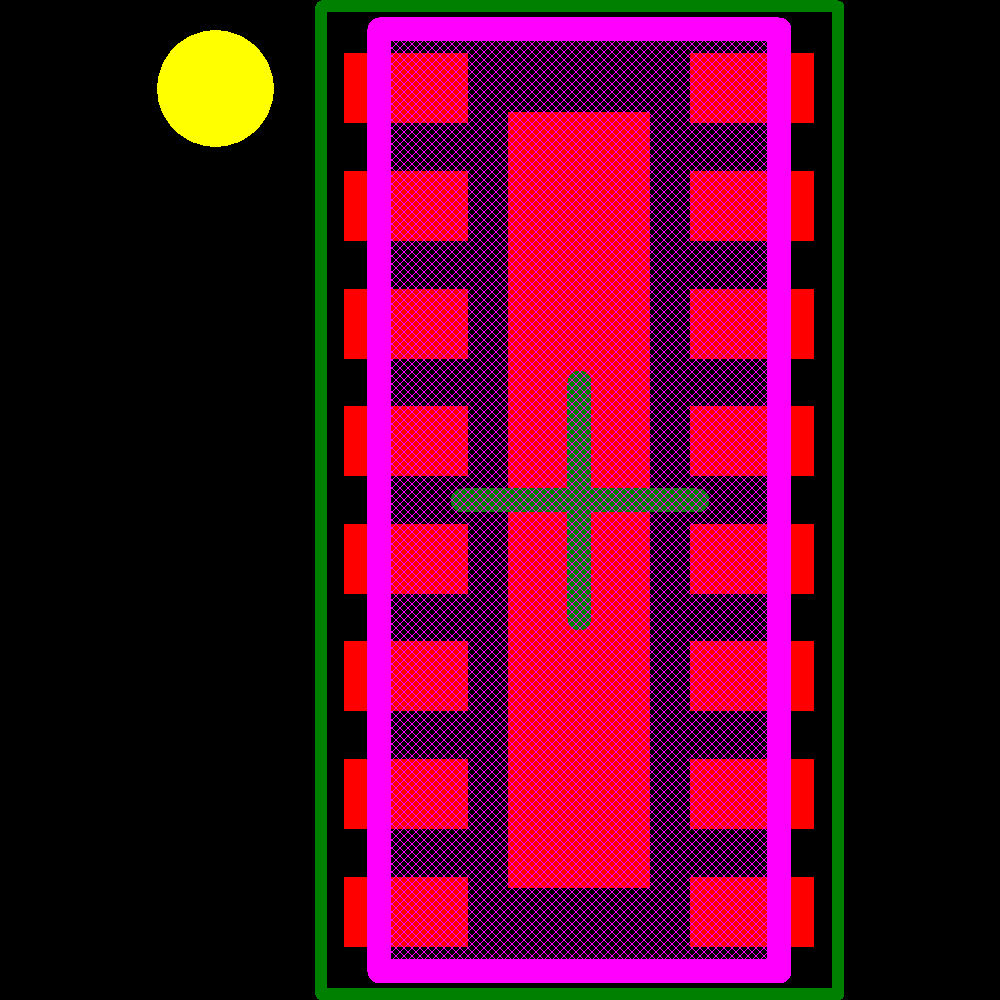

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| Semtech | Production | ||
| Semtech | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| Littelfuse | Obsolete | ||
| STMicroelectronics | Production |
