CM1236-08DE - onsemi
ESD Suppressor Diode Diode Array Uni-Dir 5.5V 9.2Vc 16-Pin WDFN EP T/R
Technical Details
| Approvals | IEC |
| Breakdown Voltage | 6V |
| China RoHS | Compliant |
| Clamping Voltage | 9.2V |
| Contact Plating | Tin |
| Country of Origin | India |
| Current Rating | 100mA |
| Depth | 4mm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Halogen Free | Halogen Free |
| Height | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8504.50.80.00 |
| Impedance | 100Ω |
| Introduction Date | 2009-02-25 |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 6.1mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 85°C |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -40°C |
| Number of Bidirectional Channels | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Lines | 8 |
| Number of Pins | 16 |
| Operating Supply Voltage | 5.5V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5.5V |
| RoHS | Compliant |
| Termination | Solder |
| Voltage Rating | 5.5V |
| Width | 4.1mm |
| Working Voltage | 5.5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

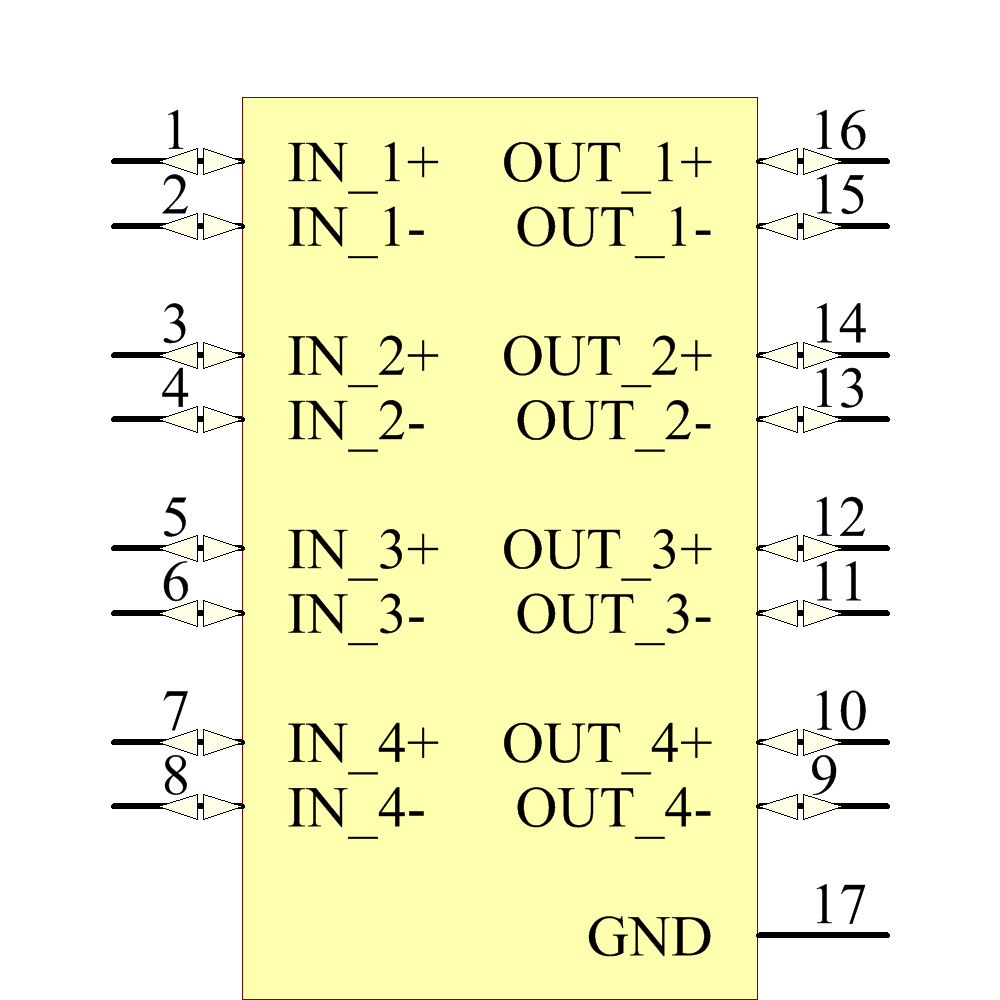

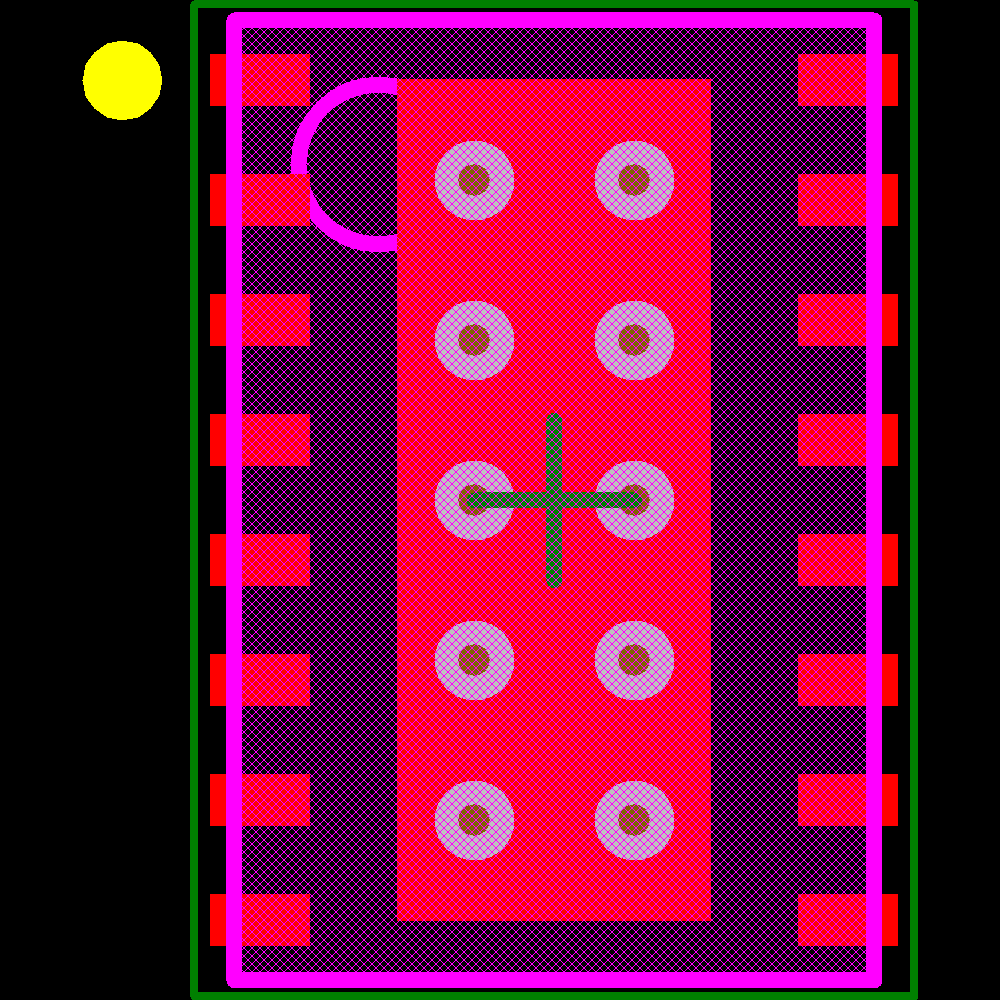

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| Semtech | Production | ||
| Semtech | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Infineon | Obsolete | ||
| Infineon | Obsolete | ||
| Littelfuse | Obsolete | ||
| STMicroelectronics | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 8000
|
$ | 0.5945 | 0.4934 | 0.4399 | |||||
| Verical |
US: 8000
|
$ | 0.6168 | 0.5499 | ||||||
| Mouser |
US: 2713
|
$ | 1.39 | 1.14 | 1.14 | 0.89 | 0.615 | 0.525 | ||
