CM1242-33CP - onsemi
0201 (0603Metric) 1 Surface Mount 1 Zener Tvs Diode 6V 1A 8/20mus 55pF -40C~85C TA
Technical Details
| Breakdown Voltage | 7.6V |
| Capacitance | 55pF |
| Case/Package | 0201 |
| Clamping Voltage | 8.6V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Depth | 300µm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Dual |
| Halogen Free | Halogen Free |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2010-05-05 |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 600µm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -40°C |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Lines | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 5.5V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Peak Reverse Current | 500nA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 3.3V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Working Voltage | 9V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

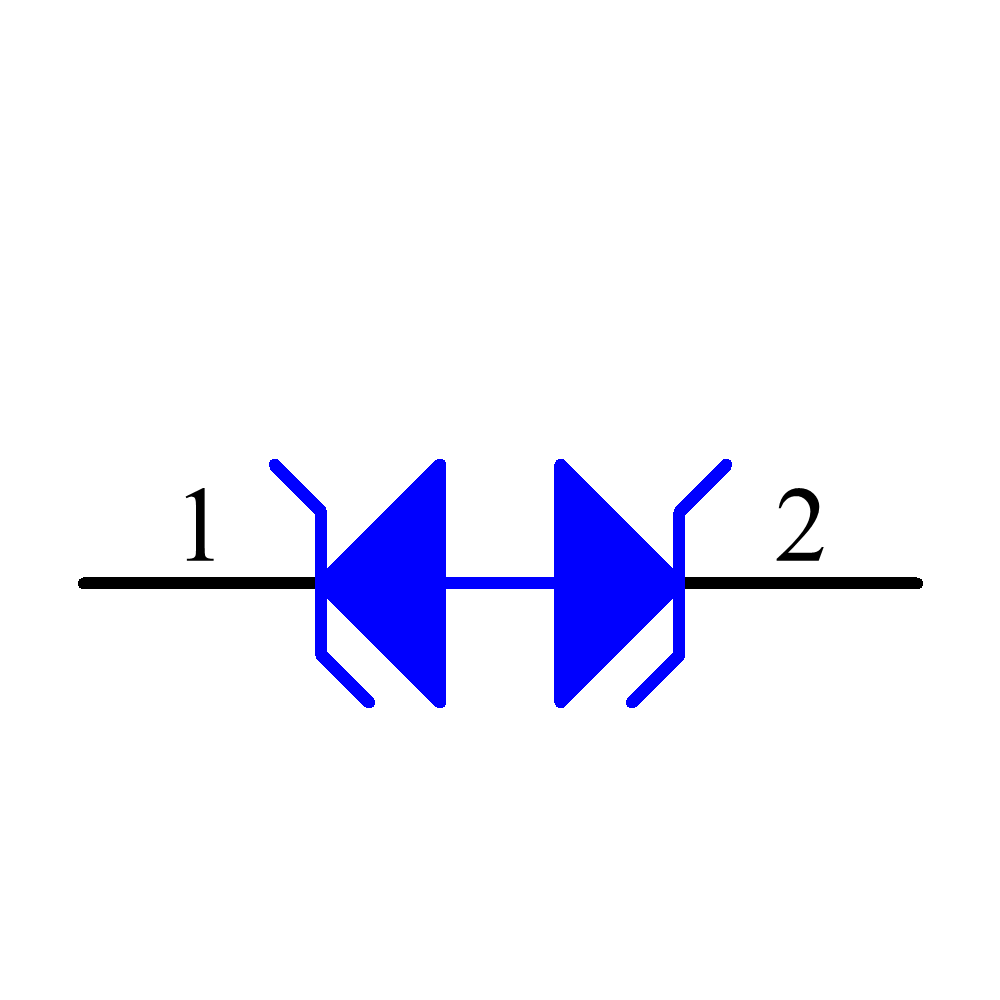

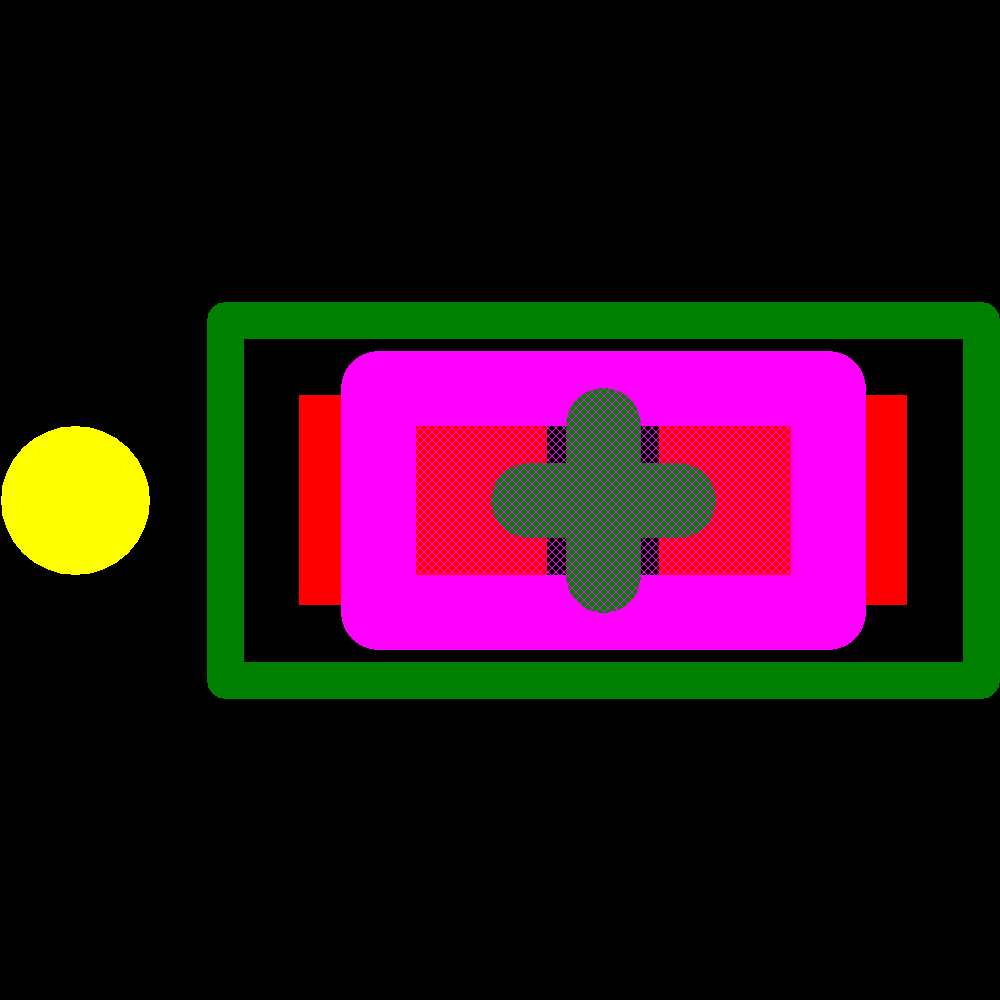

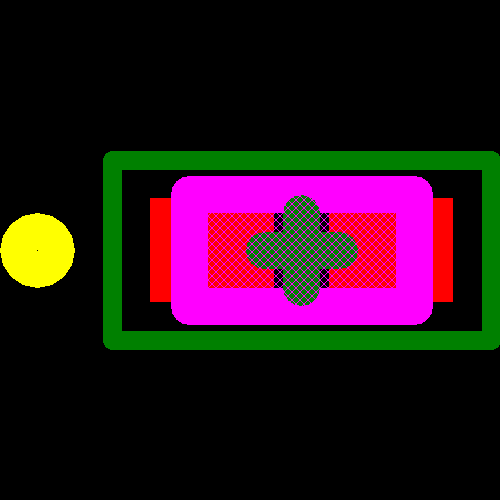

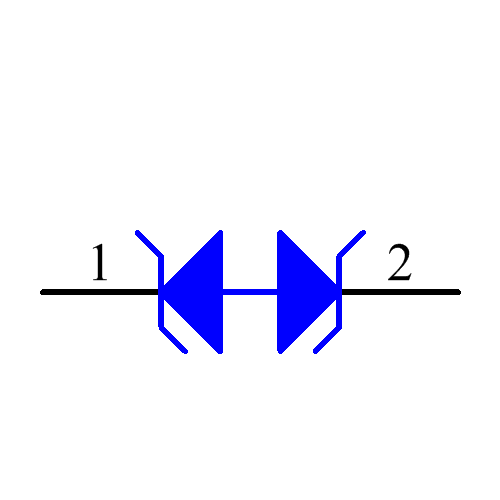

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Nexperia | Production | ||
| Lite-On | Obsolete | ||
| onsemi | Obsolete | ||
| Littelfuse | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Infineon | Obsolete | ||
| Diodes Inc. | Production | ||
| Semtech | Production |
