Technical Details
| Case/Package | DIP |
| Collector Emitter Breakdown Voltage | 70V |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 300mV |
| Current Transfer Ratio | 40% |
| Dark Current | 50nA |
| Forward Current | 60mA |
| Forward Voltage | 1.6V |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.80.00 |
| Introduction Date | 1991-01-02 |
| Isolation Voltage | 5300Vrms |
| Lifecycle Status | Obsolete |
| Max Collector Current | 50mA |
| Max Operating Temperature | 100°C |
| Max Power Dissipation | 150mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 6 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Packaging | Bulk |
| REACH SVHC | Yes |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

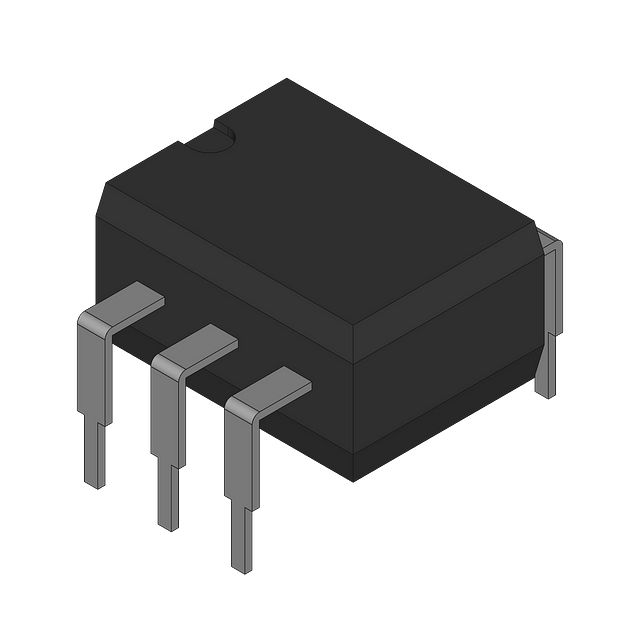

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Harris | Obsolete | ||
| Lite-On | Production | ||
| Toshiba | Obsolete | ||
| Motorola | Obsolete | ||
| Lite-On | Production | ||
| Lite-On | Production | ||
| California Eastern Laboratories | Obsolete | ||
| California Eastern Laboratories | Obsolete | ||
| California Eastern Laboratories | Obsolete |
