CPH5524-TL-E - onsemi

Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 50V 3A 380MHz 1.2W Sur

Technical Details

Case/Package	SOT-23-5
China RoHS	Non-Compliant
Collector Base Voltage (VCBO)	100V
Collector Emitter Breakdown Voltage	50V
Collector Emitter Saturation Voltage	240mV
Collector Emitter Voltage (VCEO)	50V
Element Configuration	Dual
Emitter Base Voltage (VEBO)	6V
Gain Bandwidth Product	380MHz
Height	900µm
hFE Min	200
Lead Free	Lead Free
Length	2.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	3A
Max Frequency	390MHz
Max Operating Temperature	150°C
Max Power Dissipation	1.2W
Min Operating Temperature	-55°C
Number of Elements	2
Number of Pins	5
Number of Terminals	5
Packaging	Tape and Reel
Polarity	NPN, PNP
Power Dissipation	1.2W
REACH SVHC	No
RoHS	Compliant
Schedule B	8541290080
Transition Frequency	380MHz
Width	1.6mm

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

onsemi CPH5524-TL-E | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

Symbol

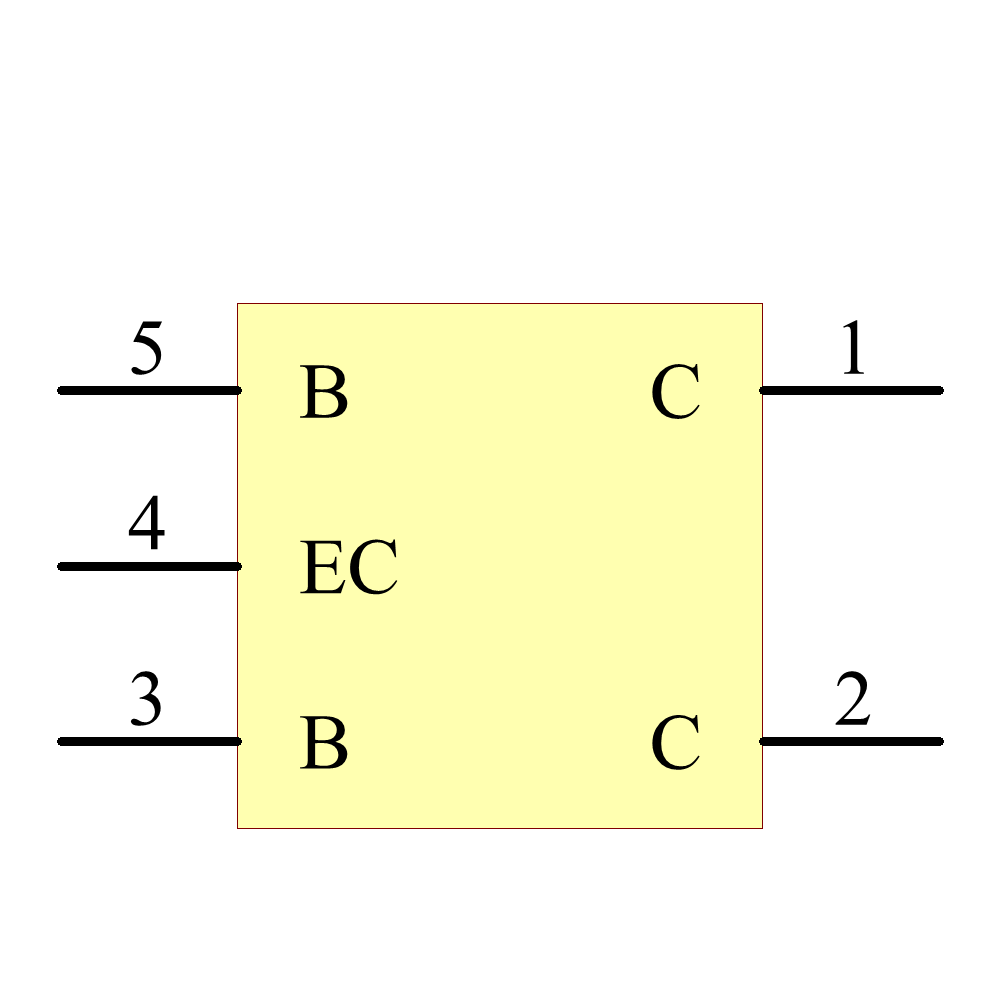

CPH5524-TL-E Symbol - onsemi

CPH5524-TL-E Symbol - onsemi

CPH5524-TL-E Symbol - onsemi

CPH5524-TL-E Symbol - onsemi

‹ ›

Footprint

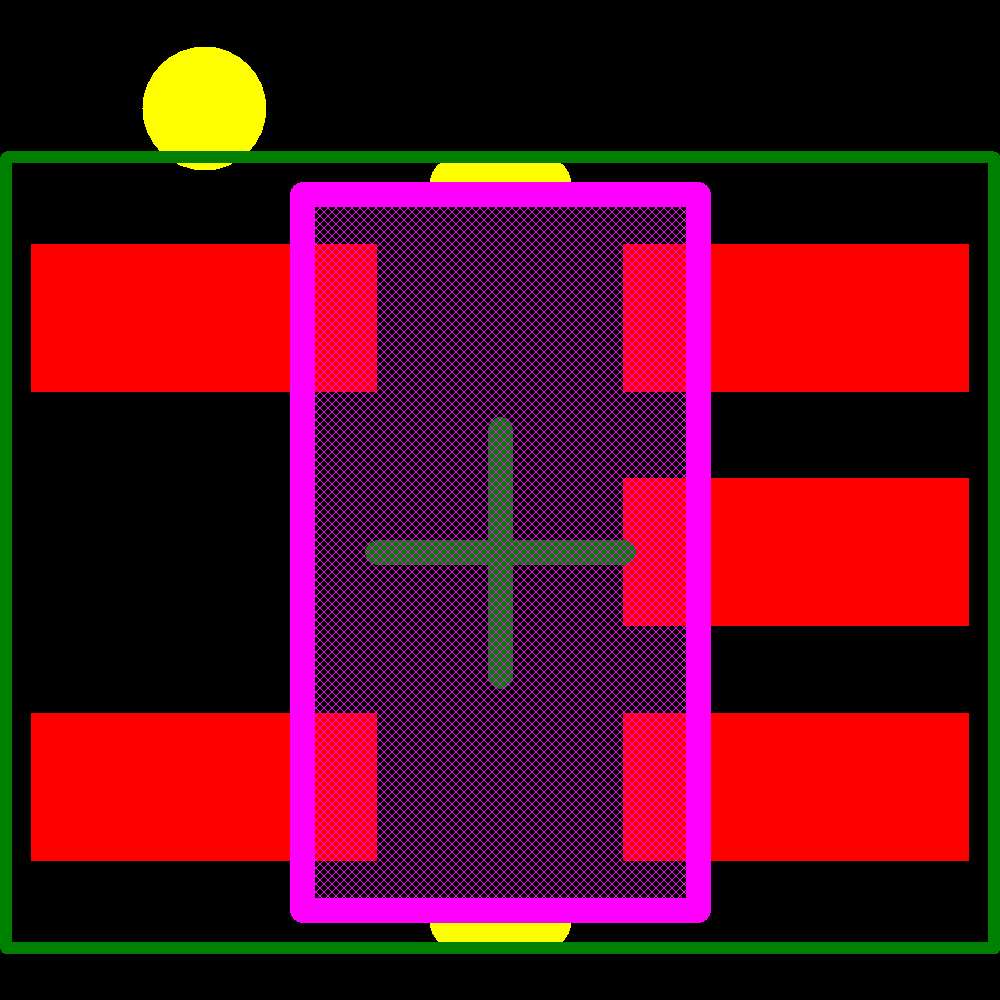

CPH5524-TL-E Footprint - onsemi
