CPH5901G-TL-E - onsemi
N-Channel JFET and NPN Bipolar Transistor, 15V, 6 to 20mA, 50V, 150mA, Composite type CPH5
Technical Details
| Case/Package | SOT-23-5 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 55V |
| Collector Emitter Saturation Voltage | 400µV |
| Collector Emitter Voltage (VCEO) | 50V |
| Contact Plating | Tin Bismuth |
| Continuous Drain Current (ID) | 50mA |
| Current Rating | 150mA |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 6V |
| Height | 900µm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Collector Current | 150mA |
| Max Frequency | 200MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 350mW |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 350mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Voltage Rating | 50V |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

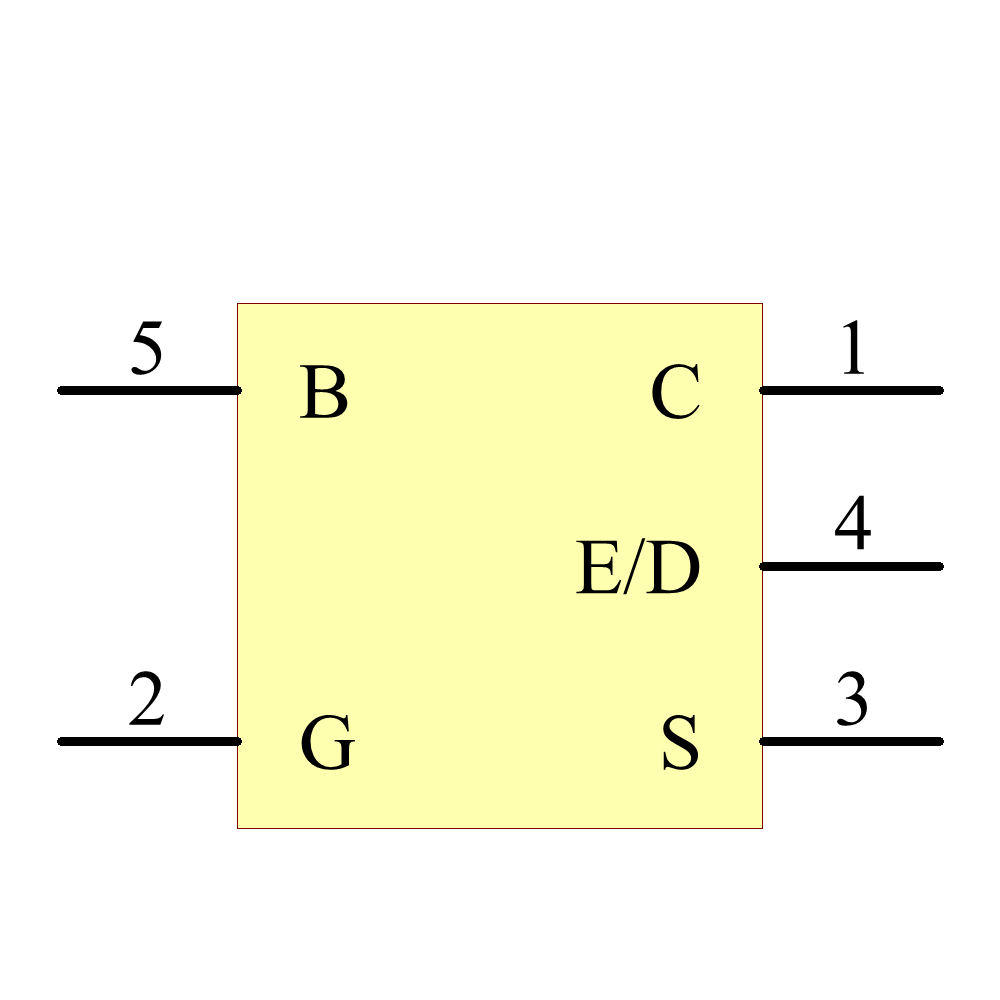

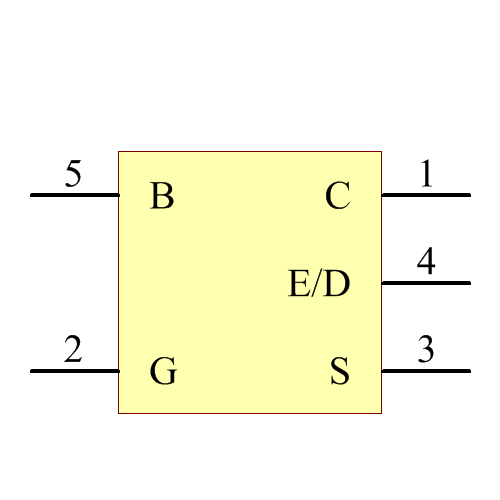

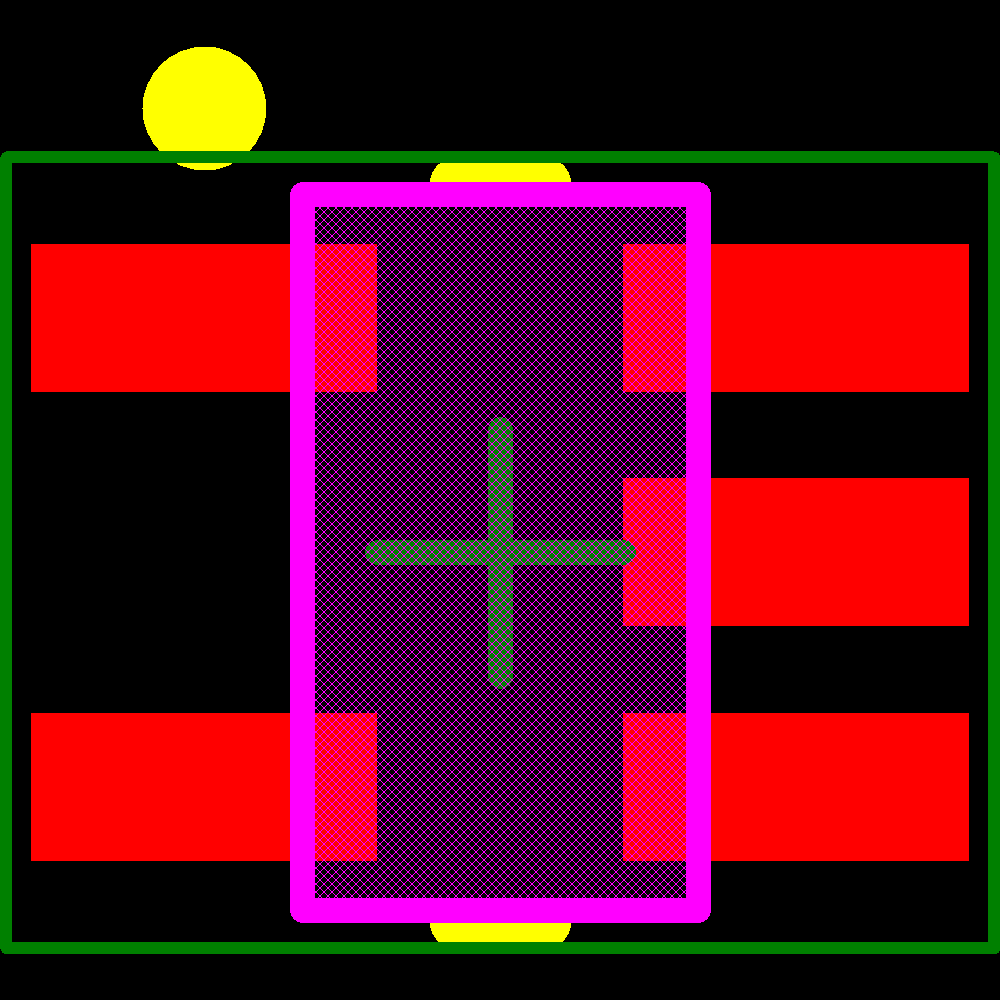

Images
