Discrete Semiconductors > Transistors > JFETs

CPH6904-TL-E - onsemi

CPH6904-TL-E; Dual N-channel JFET Transistor; 25 V; Idss 20 to 40mA; 6-Pin CPH

Technical Details

Case/Package	SC
China RoHS	Compliant
Contact Plating	Tin Bismuth
Continuous Drain Current (ID)	50mA
Country of Origin	Mainland China
Drain to Source Voltage (Vdss)	25V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Dual
Gate to Source Voltage (Vgs)	25V
Height	900µm
Input Capacitance	6pF
Introduction Date	2012-06-18
Lead Free	Lead Free
Length	2.9mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	150°C
Max Power Dissipation	700mW
Min Operating Temperature	-55°C
Number of Elements	2
Number of Pins	6
Packaging	Tape and Reel
Power Dissipation	700mW
REACH SVHC	Yes
RoHS	Compliant
Width	1.6mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

onsemi CPH6904-TL-E | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

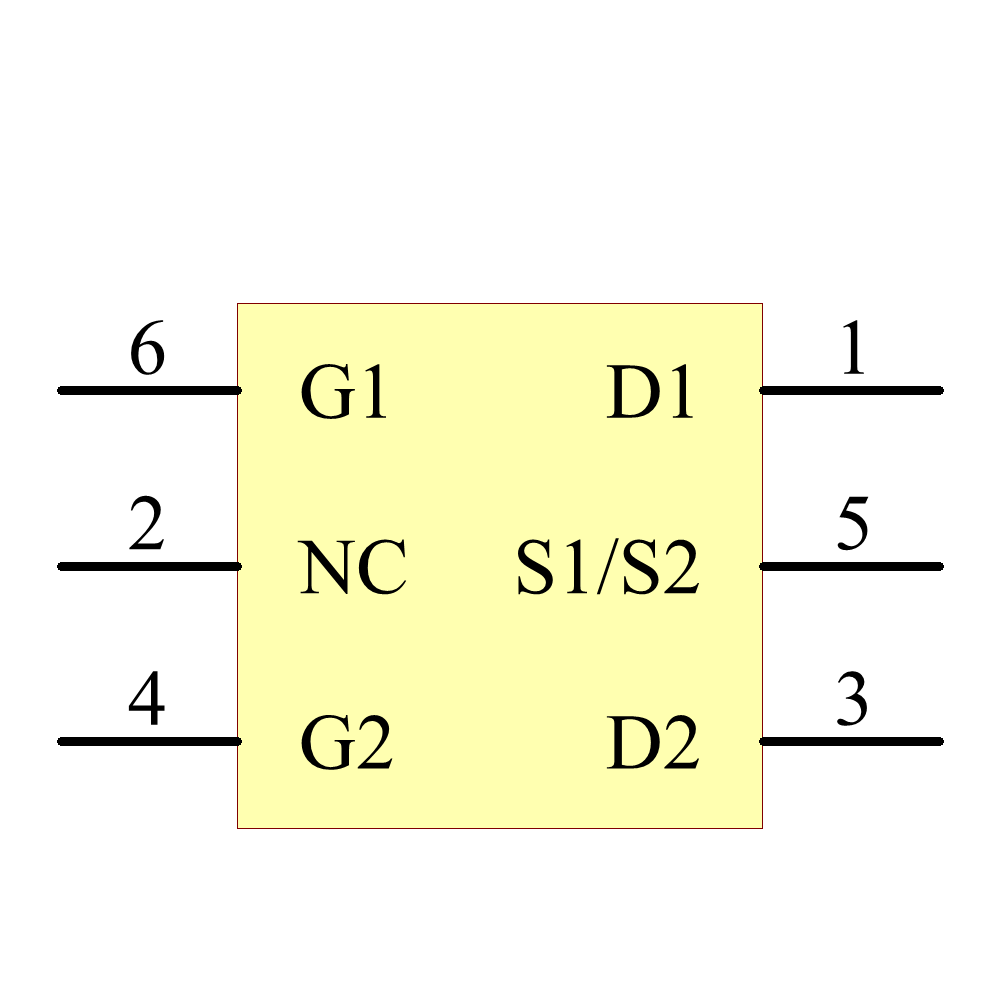

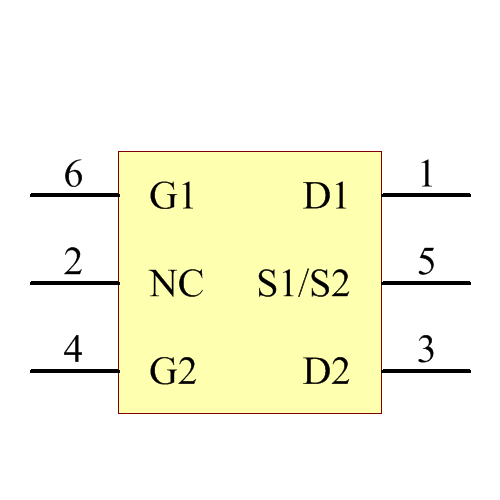

Symbol

CPH6904-TL-E Symbol - onsemi

CPH6904-TL-E Symbol - onsemi

CPH6904-TL-E Symbol - onsemi

CPH6904-TL-E Symbol - onsemi

‹ ›

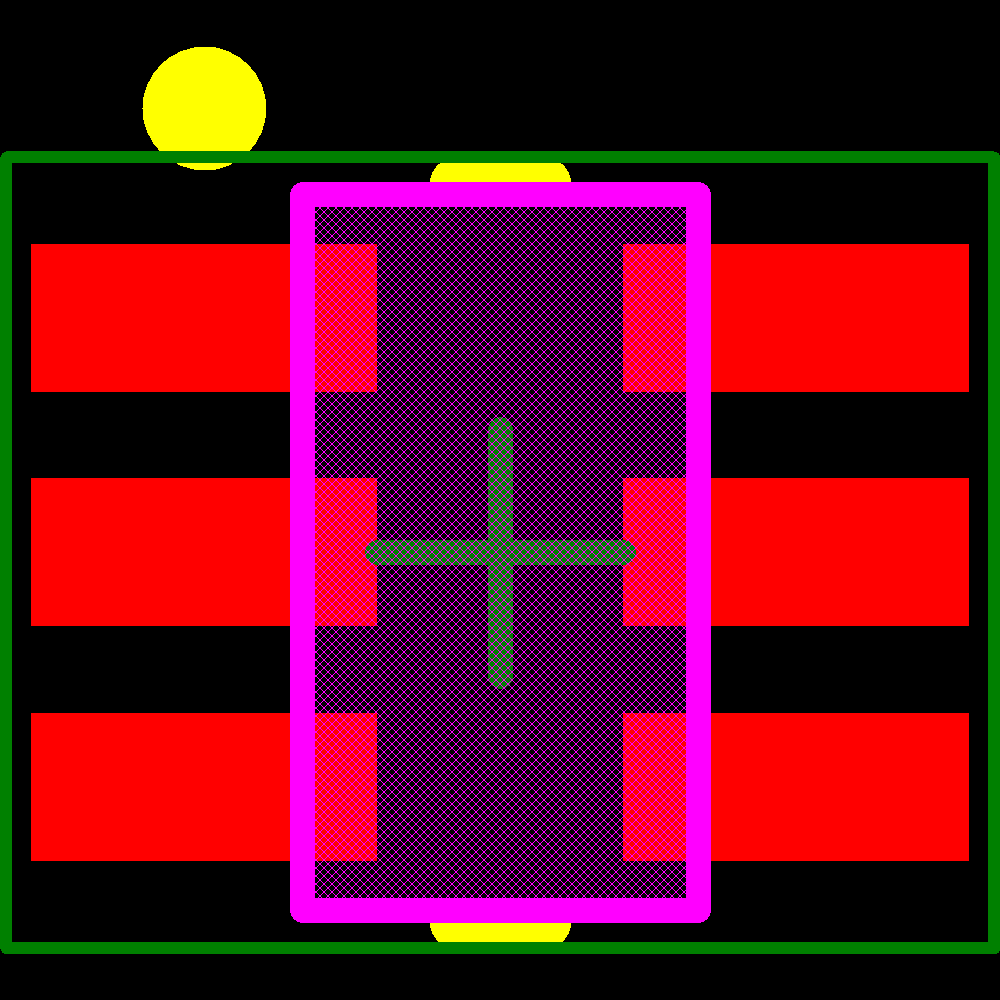

Footprint

CPH6904-TL-E Footprint - onsemi

CPH6904-TL-E Footprint - onsemi

CPH6904-TL-E Footprint - onsemi

CPH6904-TL-E Footprint - onsemi

‹ ›

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

RS

DE: 750

$

0.6706

0.4647

0.4647

RS

DE: 750

$

0.3094

RS

DE: 70

$

0.7766

0.7766

0.6706

0.4647

0.4647

Farnell

DE: 1966

$

1.2821

0.8013

0.8013

0.5251

0.3686

0.3193

Farnell

DE: 1966

$

0.5251

0.3686

0.3193

Chip One Stop

JP: 2960

$

0.677

0.514

0.443

0.308

0.246

Verical

US: 2960

$

0.443

0.443

DigiKey

CPH6904-TL-EOSCT-ND

DE: 43273

$

1.1464

0.7162

0.7162

1.1464

0.3288

0.3288

DigiKey

CPH6904-TL-EOSDKR-ND

DE: 43273

$

1.1464

0.7162

0.7162

1.1464

0.3288

0.3288

DigiKey

CPH6904-TL-EOSTR-ND

DE: 42000

$

0.2853

Avnet Silica

EU: 0

$

EBV Elektronik

EU: 0

$

Onlinecomponents.com

US: 0

$

0.36

0.247

Future Electronics

CA: 0

$

0.21

Avnet

US: 0

$

0.2664

Master Electronics

US: 0

$

0.36

0.247

element14 APAC

SG: 1966

$

1.2065

0.7452

0.7452

0.4887

0.2975

0.2838

element14 APAC

SG: 1966

$

0.4887

0.2975

0.2838

Mouser

863-CPH6904-TL-E

US: 4643

$

1.09

0.679

0.679

0.445

0.312

0.258

Newark

US: 0

$

0.374

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Microchip USA

US: 1998

$

7.0196

6.9978

Component Stockers USA

US: 7857

$

0.26

0.26

0.26

0.24

0.29

0.29

Win Source

969554-CPH6904-TL-E

CN: 6000

$

0.3053

0.2737

Worldway Electronics

HK: 35631

$

0.2427

0.2427

0.2353

0.2229

0.2229

Fmall Co., Limited

HK: 43660

$

0.1928

0.1928

0.1928

0.1804

0.17

0.1555

UnikeyIC

SG: 750

$

0.3396

Ansinor

CN: 43329

$

0.9312

0.577

0.577

0.3778

0.2666

0.2298

Bettlink

HK: 43148

$

0.4045

0.2996

0.2996

0.2606

0.2435

0.2188

AERI

US: 38945

$

0.258

SHENGYU ELECTRONICS

CN: 13813

$

0.3507

0.3437

0.3437

0.33

0.32

0.31

Lixinc

CN: 10640

$

0.72

0.72

0.72

0.72

0.72

0.2903

Fly-Wing Technology

HK: 2938

$

2.148

1.7632

1.7632

1.7081

1.5979

1.5979

XingHuan International

CN: 55000

$

Lingto Electronic Ltd.

CN: 34331

$

0.72

0.6912

0.6912

0.648

0.6408

0.6336

TME

PL: 0

$

0.8962

0.6423

0.4894

0.4401

0.3378

0.3378

Sourcengine

US: 2960

$

Richardson RFPD

US: -3

$
