D45H8 - onsemi
Tube Through Hole PNP Single Bipolar (BJT) Transistor 40 @ 4A 1V 10A 60W 40MHz
Technical Details
| Case/Package | TO-220AB |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 60V |
| Contact Plating | Tin |
| Country of Origin | Philippines |
| Current Rating | 8A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 40MHz |
| Gain Bandwidth Product | 40MHz |
| Height | 6.35mm |
| hFE Min | 40 |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.95 |
| Introduction Date | 1994-01-01 |
| Lead Free | Lead Free |
| Length | 6.35mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Breakdown Voltage | 100V |
| Max Collector Current | 8A |
| Max Frequency | 40MHz |
| Max Operating Temperature | 140°C |
| Max Power Dissipation | 50W |
| Manufacturer Package Identifier | CASE 221A−09 ISSUE AH |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |

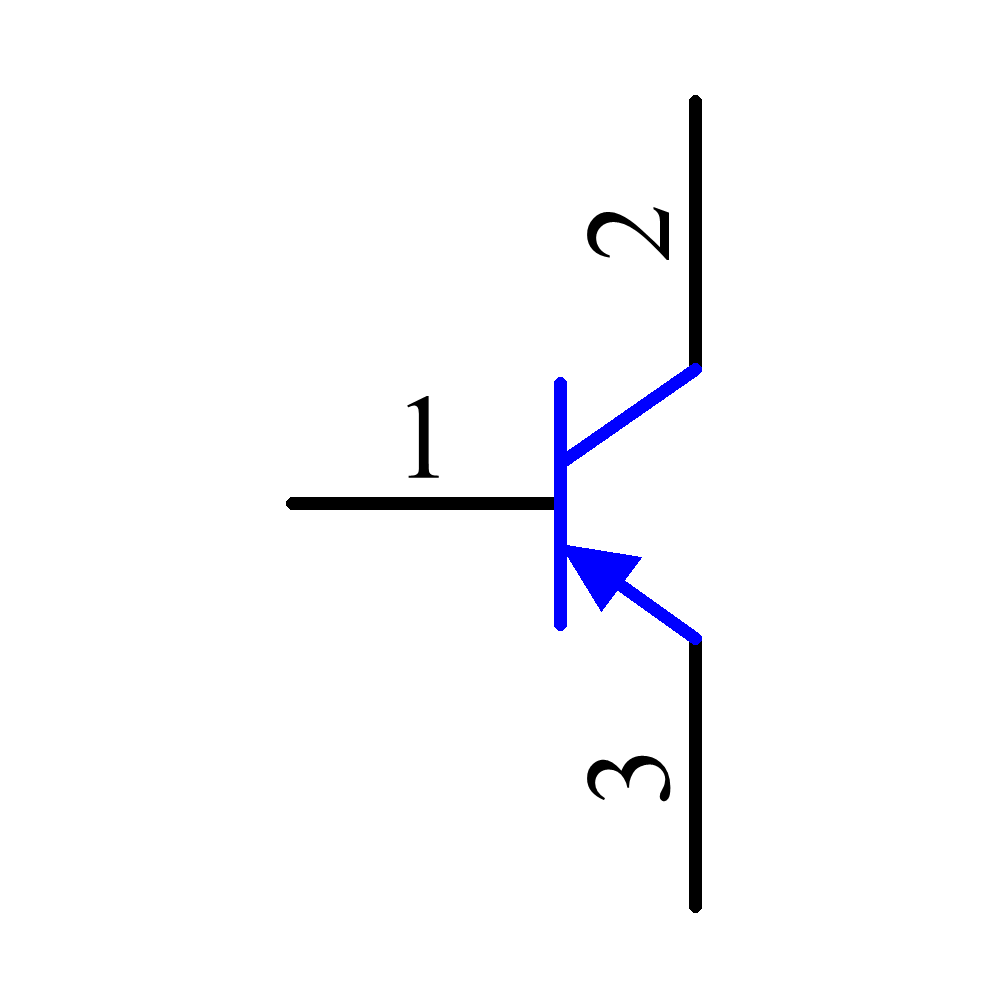

| Polarity | PNP |
| Power Dissipation | 60W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Transition Frequency | 40MHz |
| Voltage Rating (DC) | -60V |
| Weight | 1.8g |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
