Technical Details
| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Collector Base Voltage (VCBO) | 80V |
| Collector Emitter Saturation Voltage | 1.5V |
| Collector Emitter Voltage (VCEO) | 80V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Current Rating | -15A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 7V |
| Frequency | 50MHz |
| Gain Bandwidth Product | 50MHz |
| Height | 15.75mm |
| hFE Min | 20 |
| Introduction Date | 1995-07-01 |
| Lead Free | Lead Free |
| Length | 10.28mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Collector Current | 15A |
| Max Frequency | 50MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 83W |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | PNP |
| Power Dissipation | 83W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080 |
| Transition Frequency | 50MHz |
| Voltage Rating (DC) | -80V |
| Weight | 4.535924g |
| Width | 4.82mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

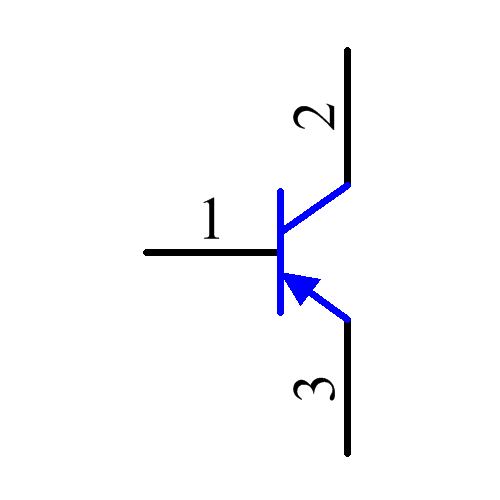

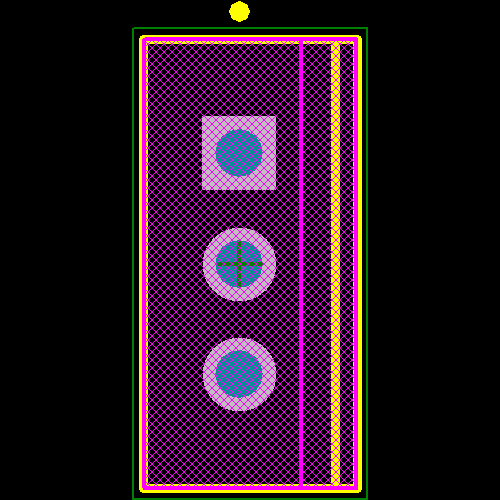

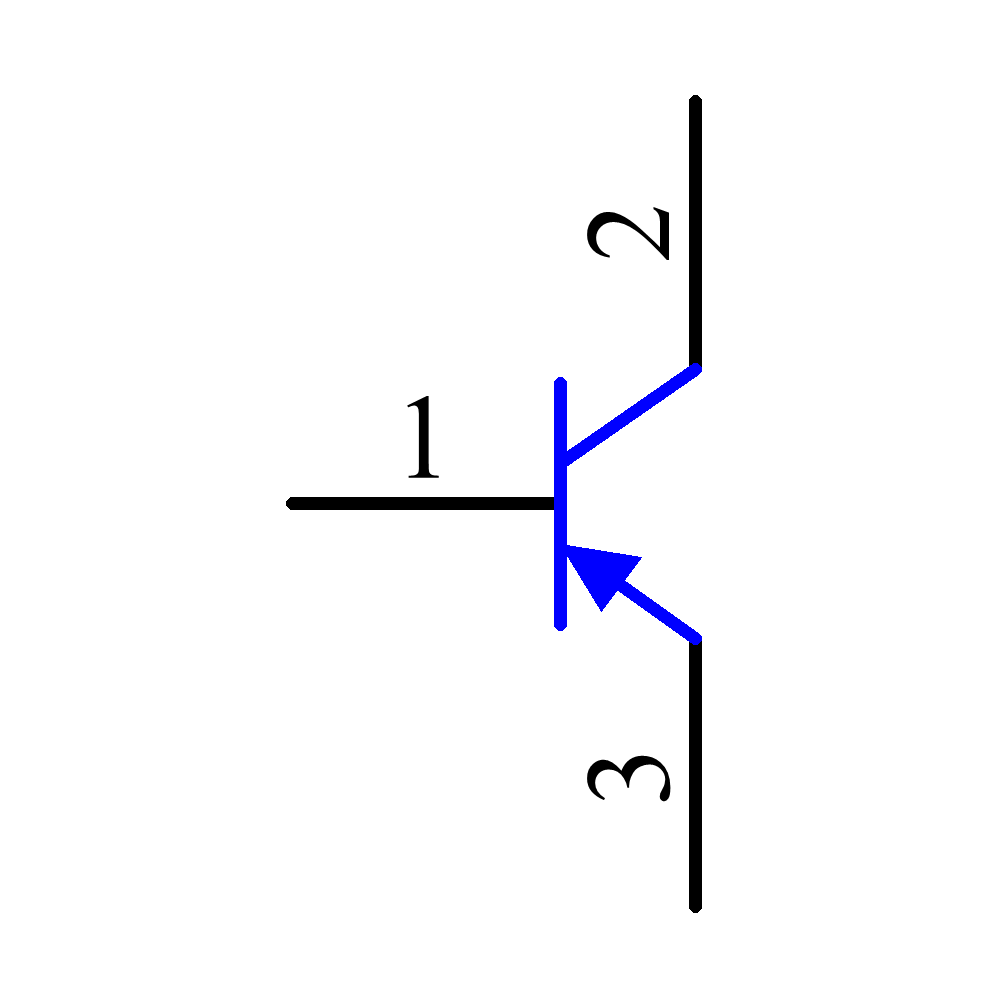

Images
Future Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| onsemi | Obsolete | ||
| Panasonic | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Bourns | Obsolete | ||
| Bourns | Obsolete |
