Discrete Semiconductors > Transistors > BJTs

DTA143ZET1G - onsemi

Trans Digital BJT PNP 50V 100mA 300mW 3-Pin SOT-416 T/R / TRANS PREBIAS PNP 200MW SC75

Technical Details

Case/Package	SOT-416
China RoHS	Compliant
Collector Emitter Breakdown Voltage	50V
Collector Emitter Saturation Voltage	250mV
Collector Emitter Voltage (VCEO)	50V
Contact Plating	Tin
Continuous Collector Current	100mA
Country of Origin	Mainland China
Current Rating	-100mA
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Emitter Base Voltage (VEBO)	6V
Halogen Free	Halogen Free
Height	800µm
hFE Min	80
Introduction Date	1997-04-23
Lead Free	Lead Free
Length	1.65mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Breakdown Voltage	50V
Max Collector Current	100mA
Max Operating Temperature	150°C
Max Power Dissipation	300mW
Min Operating Temperature	-55°C
Number of Elements	1
Number of Pins	3
Number of Terminals	3
Packaging	Tape and Reel
Polarity	PNP
Power Dissipation	200mW
Radiation Hardening	No
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|8541210080\|85
Voltage Rating (DC)	-50V
Width	900µm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

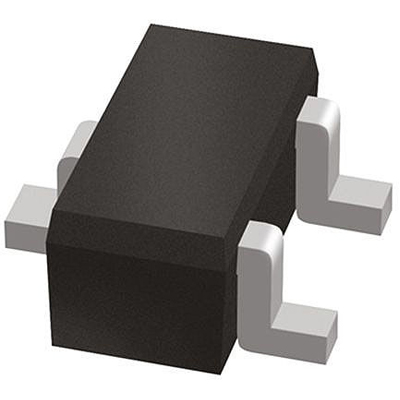

Images

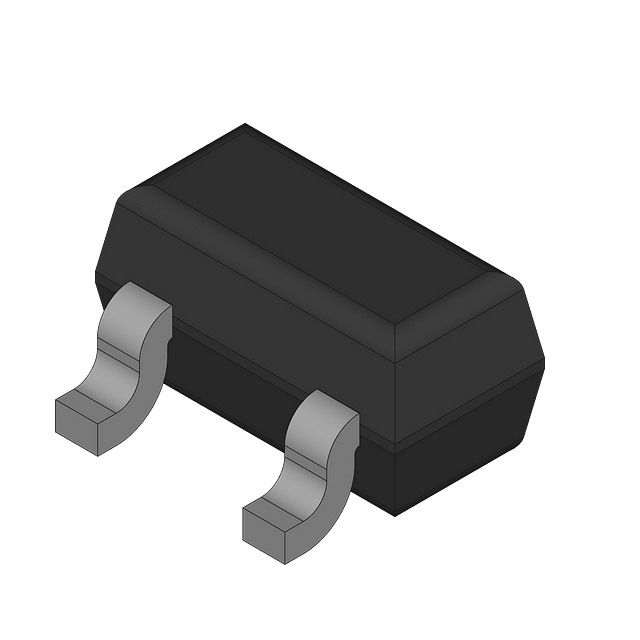

onsemi DTA143ZET1G | Rochester Electronics

Rochester Electronics

Datasheets

Future Electronics

Lifecycle Status Indicator

Production

Symbol

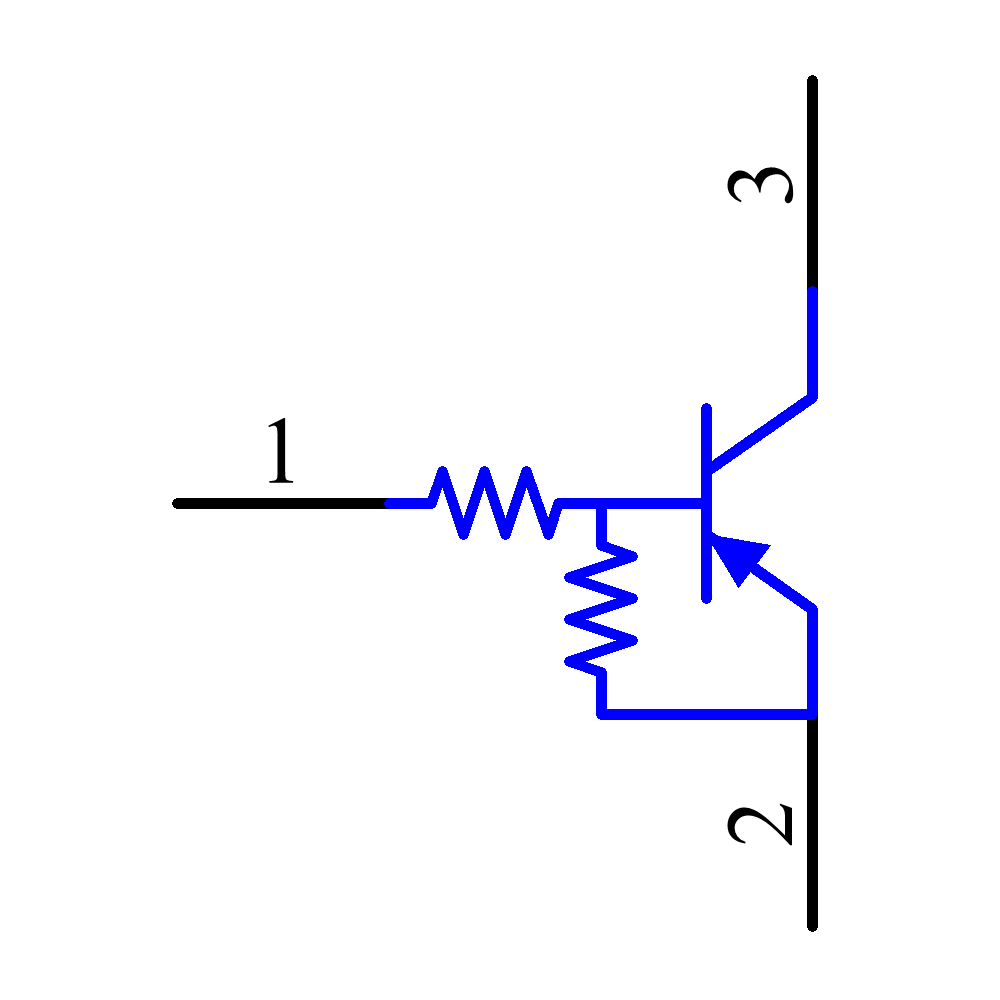

DTA143ZET1G Symbol - onsemi

DTA143ZET1G Symbol - onsemi

DTA143ZET1G Symbol - onsemi

DTA143ZET1G Symbol - onsemi

‹ ›

Footprint

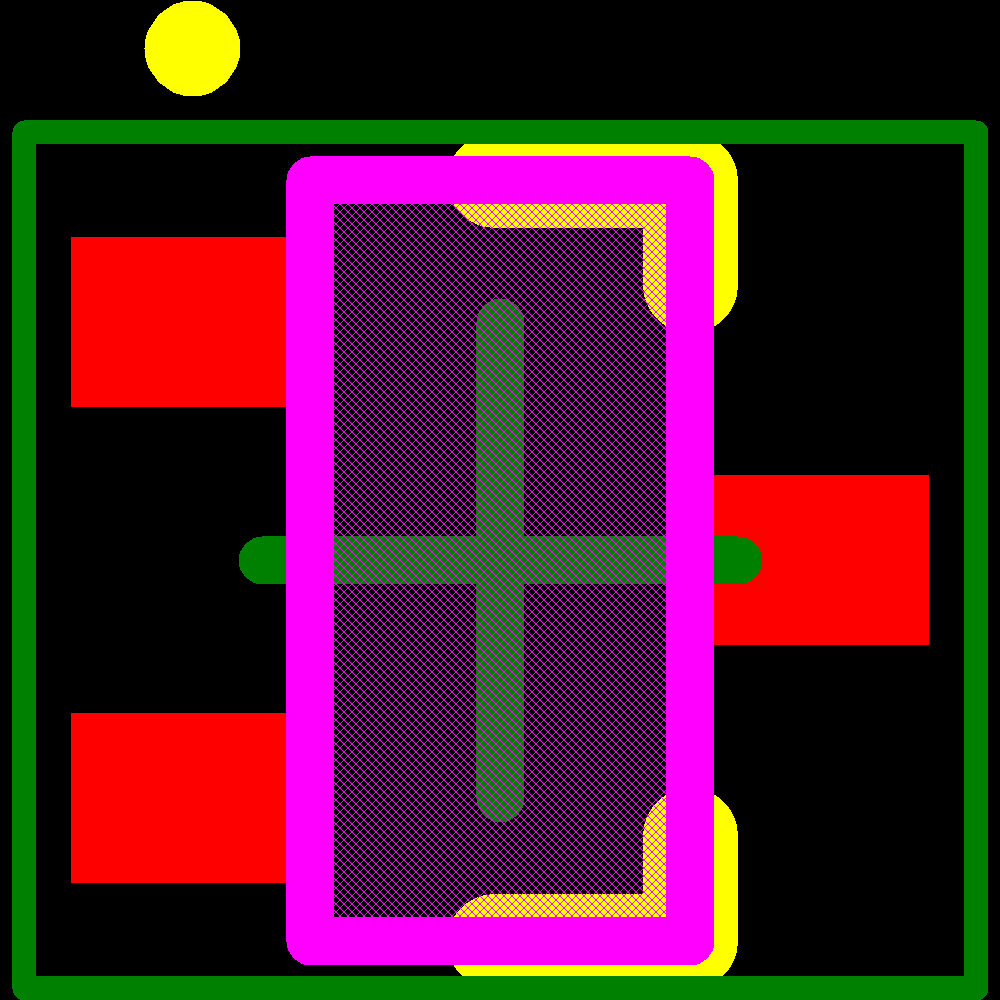

DTA143ZET1G Footprint - onsemi

DTA143ZET1G Footprint - onsemi

DTA143ZET1G Footprint - onsemi

DTA143ZET1G Footprint - onsemi

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
onsemi	DTA143ZET1	Obsolete
onsemi	DTA143Z	Obsolete
NXP Semiconductors	PDTA143ZEF,115	Obsolete
NXP Semiconductors	PDTA143ZEF	Obsolete
Nexperia	PDTA143ZM,315	Production
onsemi	DTA114TET1	Obsolete
Infineon	BCR158T	Obsolete
Toshiba	RN2111	Production
Infineon	BCR162T	Obsolete
onsemi	DTA114EET1G	Production

See more alternatives See less alternatives
