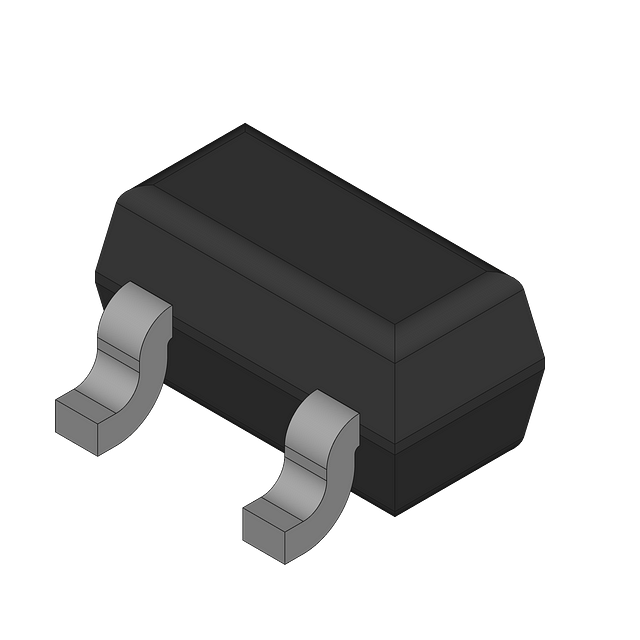

DTC115EET1 - onsemi
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon
Technical Details
| China RoHS | Non-Compliant |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Voltage (VCEO) | 50V |
| Continuous Collector Current | 100mA |
| Current Rating | 100mA |
| Element Configuration | Single |
| hFE Min | 80 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape & Reel (TR) |
| Polarity | NPN |
| Power Dissipation | 200mW |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Voltage Rating (DC) | 50V |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
