EMD4DXV6T1G - onsemi

Trans Digital BJT NPN/PNP 50V 100mA 500mW 6-Pin SOT-563 T/R

Technical Details

Case/Package	SOT-563-6
China RoHS	Compliant
Collector Emitter Breakdown Voltage	50V
Collector Emitter Saturation Voltage	250mV
Collector Emitter Voltage (VCEO)	50V
Continuous Collector Current	100mA
Current Rating	100mA
Element Configuration	Dual
Emitter Base Voltage (VEBO)	6V
Halogen Free	Halogen Free
Height	600µm
hFE Min	80
Lead Free	Lead Free
Length	1.7mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Collector Current	100mA
Max Operating Temperature	150°C
Max Power Dissipation	500mW
Min Operating Temperature	-55°C
Number of Elements	2
Number of Pins	6
Number of Terminals	6
Packaging	Tape and Reel
Polarity	NPN, PNP
Power Dissipation	357mW
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8541210080, 8541210080\|8541210080, 8541210080\|8541210080\|8541210080, 8541210080\|8541210080\|8541210080\|8541210080
Voltage Rating (DC)	50V
Width	1.3mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

onsemi EMD4DXV6T1G | Farnell

Farnell

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

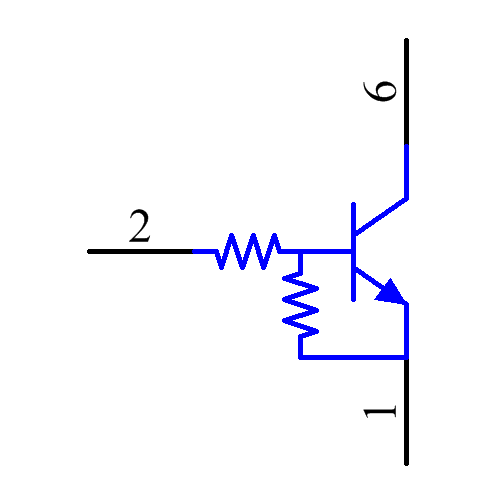

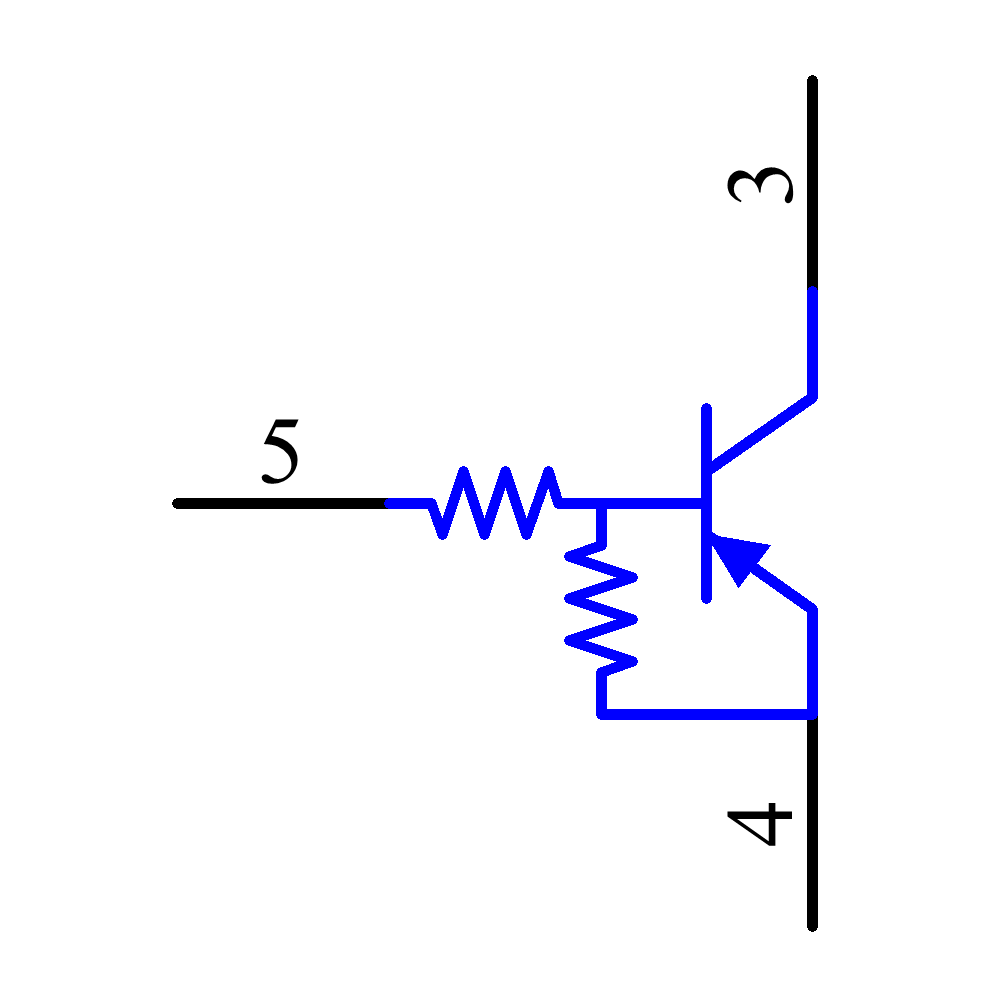

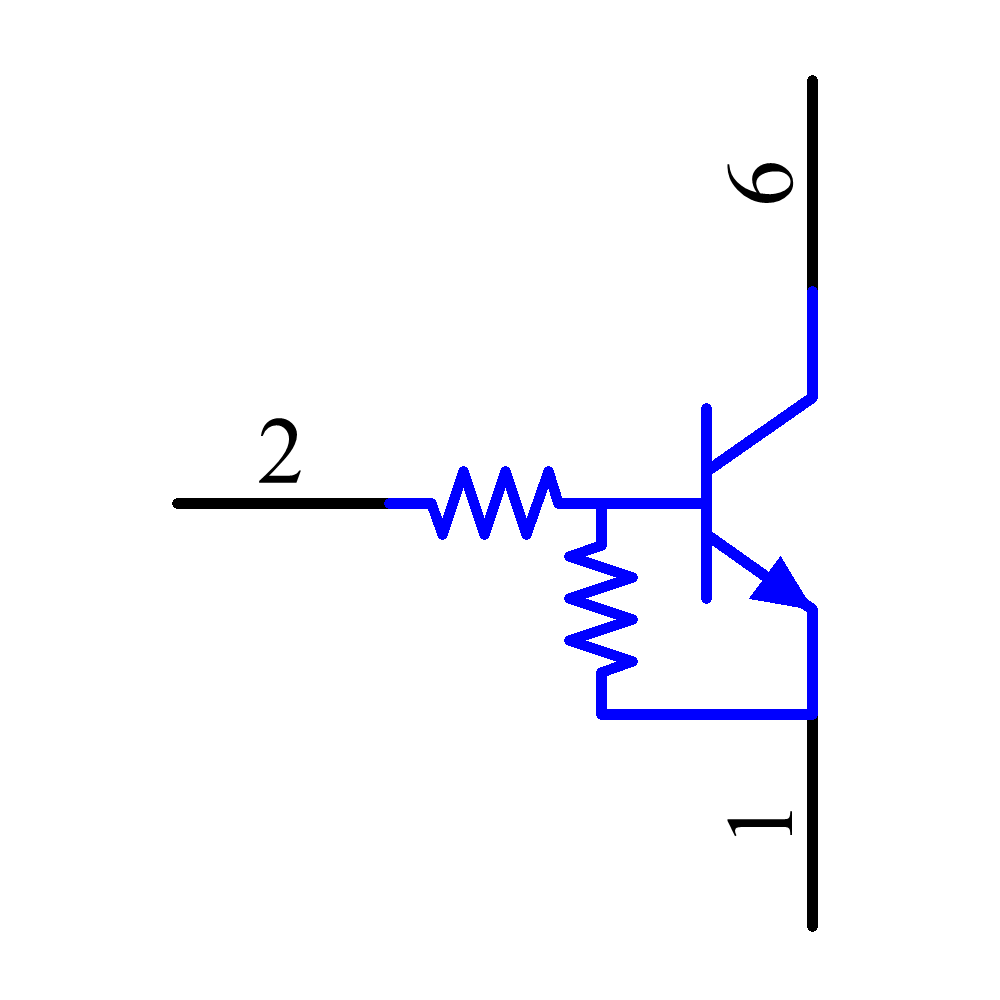

EMD4DXV6T1G Symbol - onsemi

EMD4DXV6T1G Symbol - onsemi

EMD4DXV6T1G Symbol - onsemi

EMD4DXV6T1G Symbol - onsemi

EMD4DXV6T1G Symbol - onsemi

EMD4DXV6T1G Symbol - onsemi

EMD4DXV6T1G Symbol - onsemi

EMD4DXV6T1G Symbol - onsemi

‹ ›

Footprint

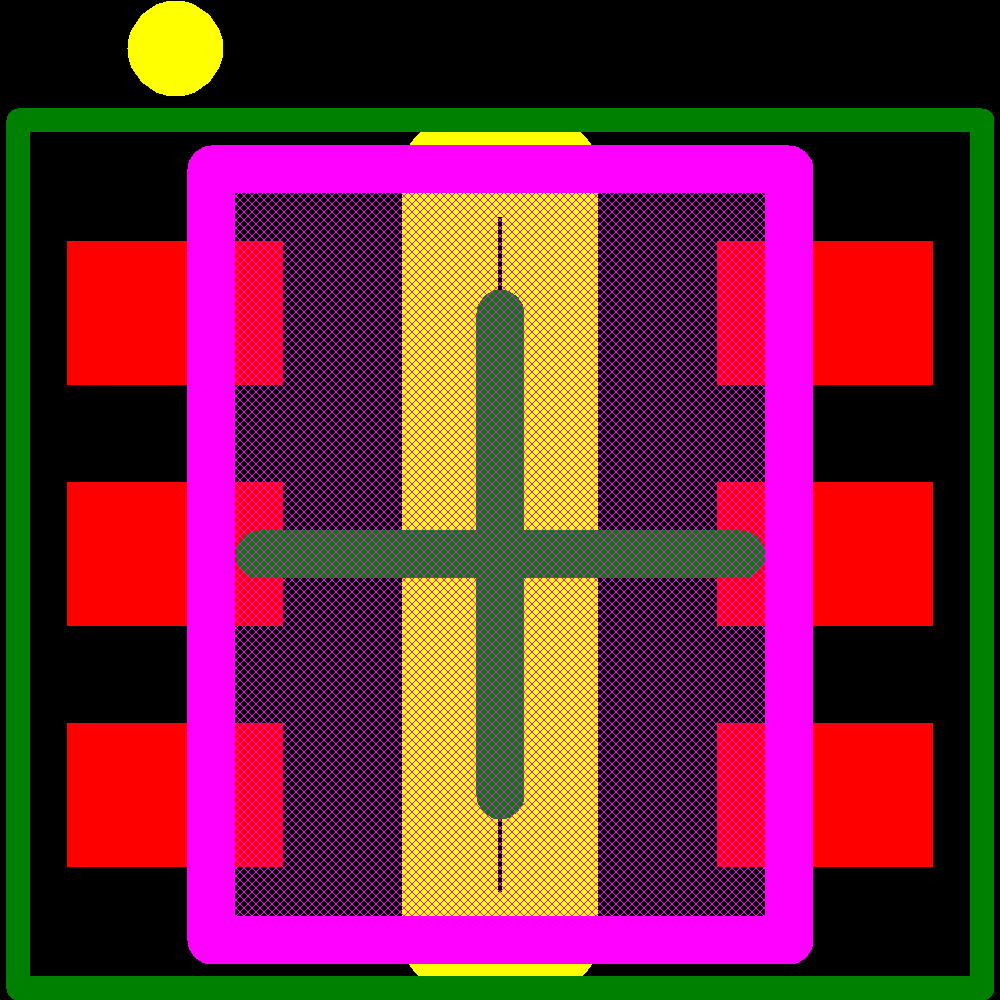

EMD4DXV6T1G Footprint - onsemi
