Circuit Protection  >  ESD Protection Diodes

onsemi - ESD4238MTTAG

ESD4238MTTAG - onsemi

ESD Suppressor Diode Diode Array Uni-Dir 5.5V 10Vc 16-Pin WDFN T/R

 Datasheets

Technical Details

Breakdown Voltage 6V
China RoHS Compliant
Clamping Voltage 10V
Contact Plating Tin
Country of Origin Thailand
Current Rating 100mA
Depth 1.6mm
Direction Unidirectional
Export Control Classification Number (ECCN) Code EAR99
Halogen Free Halogen Free
Height 800µm
Harmonized Tariff Schedule (HTS) Code 8504.50.80.00
Impedance 100Ω
Introduction Date 2010-10-07
Lead Free Lead Free
Leakage Current 1µA
Length 4mm
Lifecycle Status Production
Max Operating Temperature 85°C
Min Breakdown Voltage 5V
Min Operating Temperature -40°C
Number of Bidirectional Channels 8
Number of Channels 8
Number of Circuits 8
Number of Lines 8
Number of Pins 16
Packaging Tape and Reel
Peak Pulse Current 1A
Power Line Protection Yes
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Termination SMD/SMT
Width 1.6mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

Datasheets

 Rochester Electronics
 Verical
 Verical

Lifecycle Status Indicator

   Production

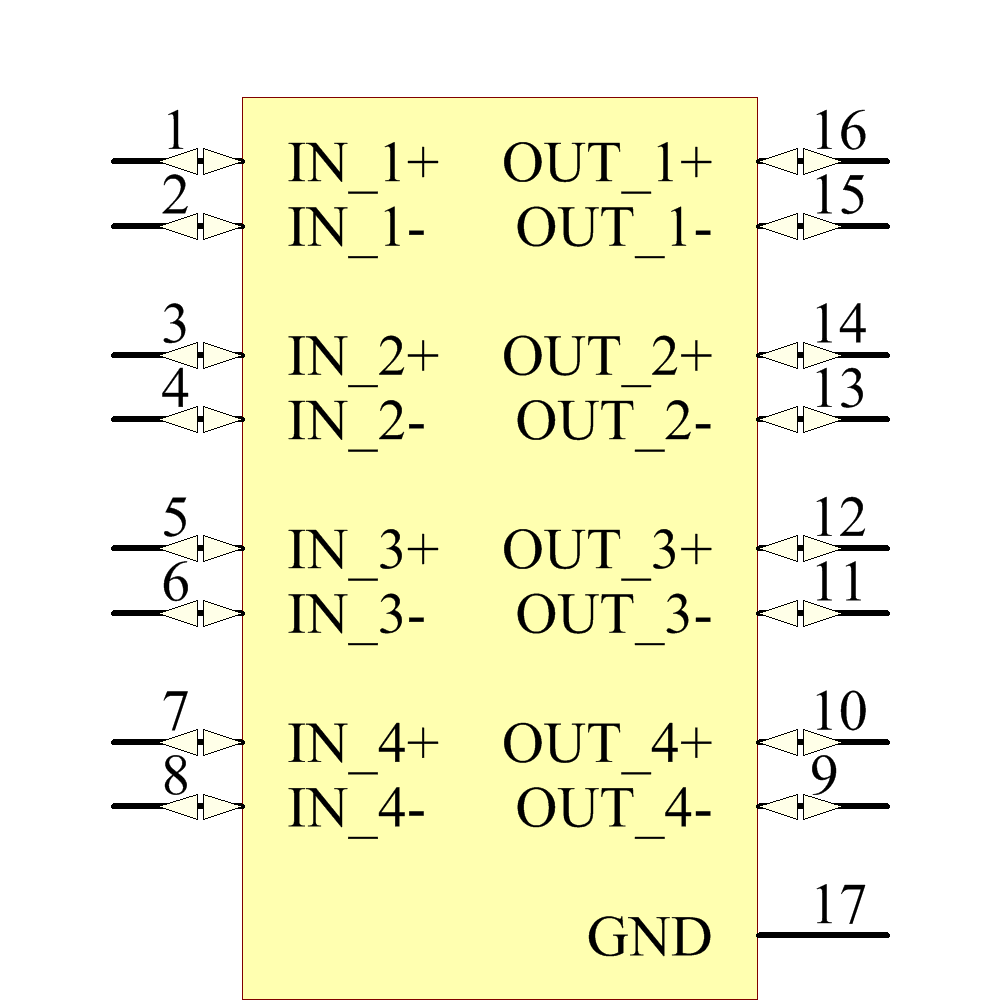

Symbol

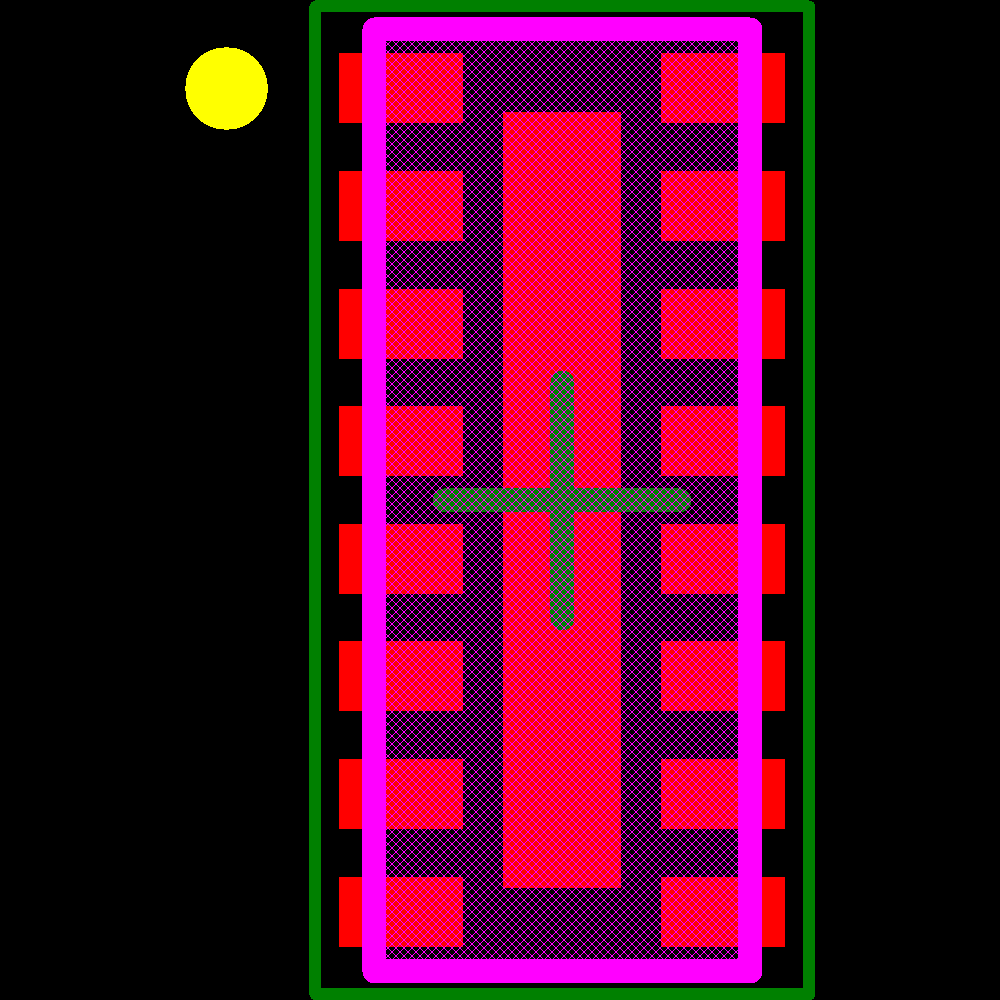

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Semtech
ECLAMP2465T.TCT
Production
Semtech
ECLAMP2522P.TCT
Production
onsemi
CM1236-08DE
Obsolete
onsemi
CM1235-08DE
Obsolete
Texas Instruments
TPD13S523RSVR
Production
Texas Instruments
TPD6E001RSFRG4
Unknown
Infineon
BGF148E6327XTSA1
Obsolete
Infineon
ESD102U405LE6327XTSA1
Obsolete
Littelfuse
SP4061-04UTG
Obsolete
STMicroelectronics
SPT01-335DEE
Production

See more alternatives See less alternatives
