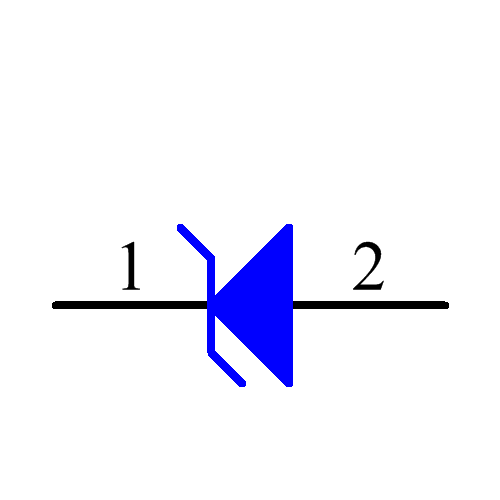

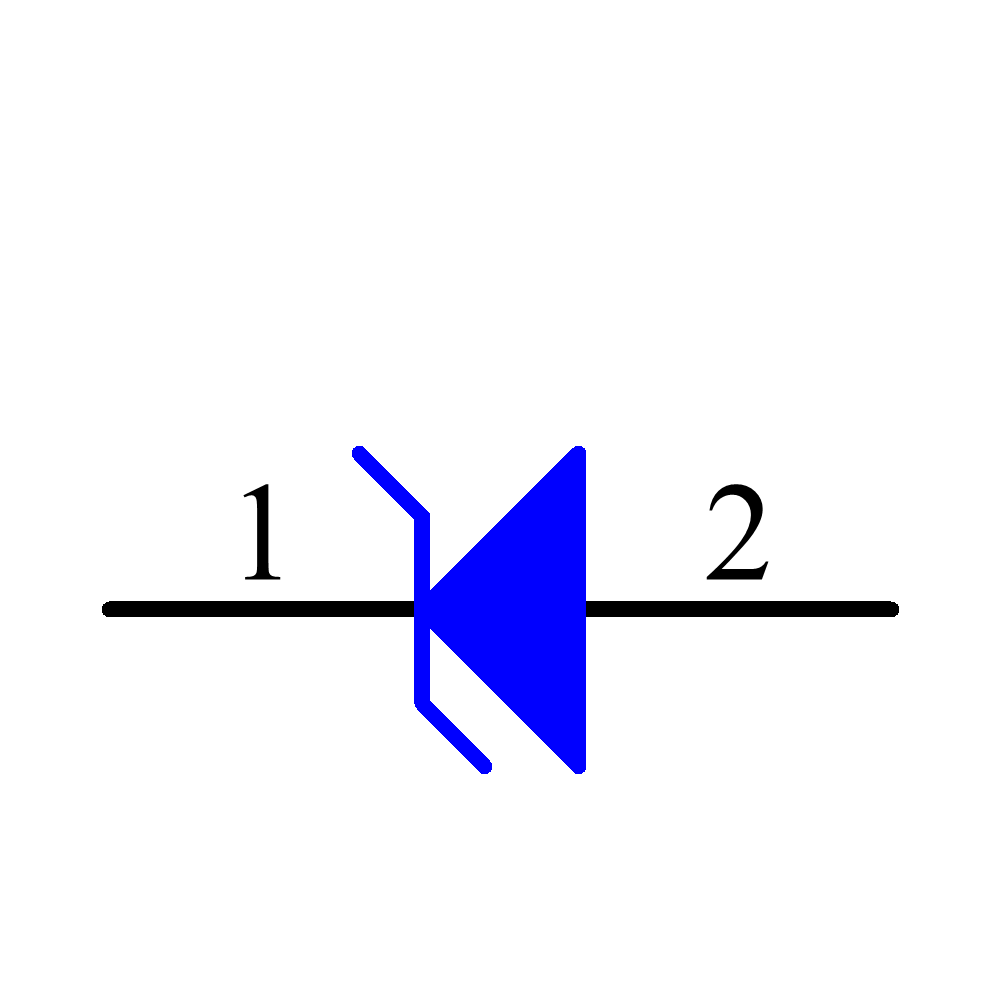

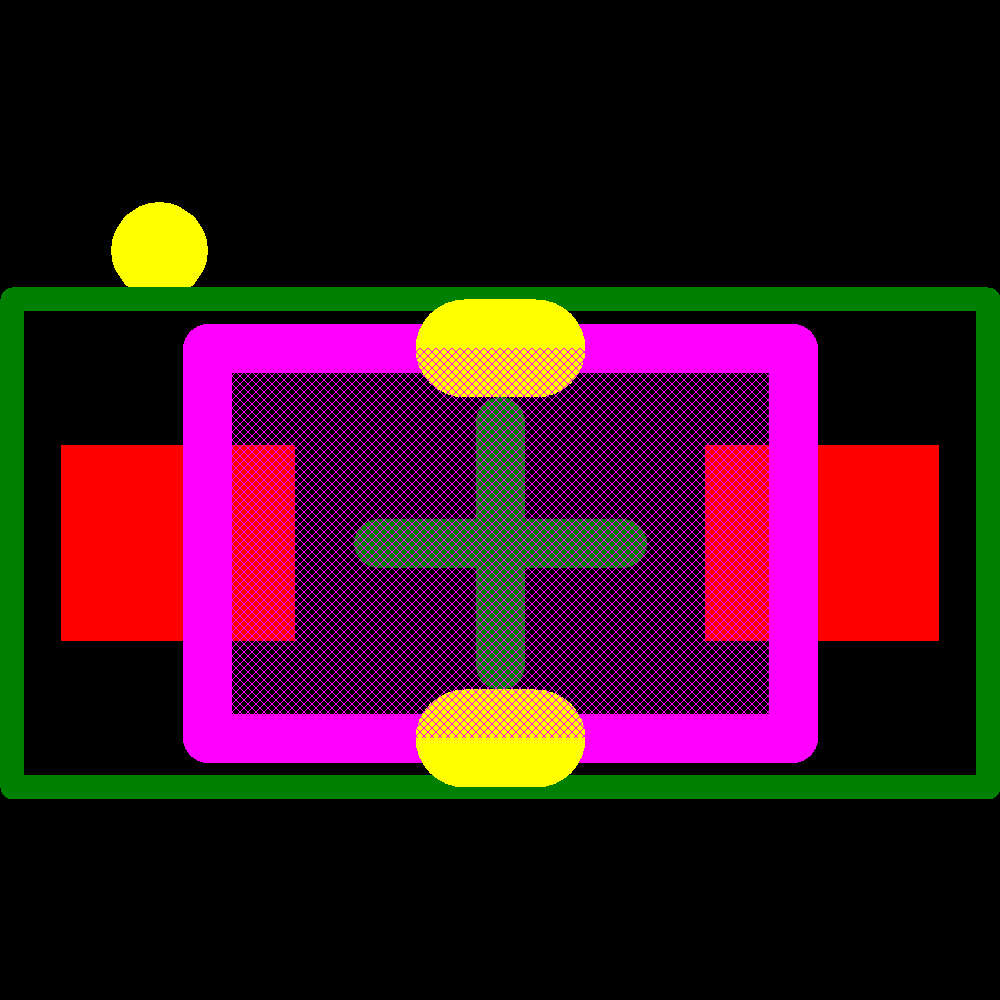

ESD5Z7.0T1G - onsemi
ESD5Z Series 7.5 V 65 pF 7 Vrwm TVS and ESD Protection Diodes - SOD-523
Technical Details
| Breakdown Voltage | 7.5V |
| Capacitance | 65pF |
| Case/Package | SOD-523-2 |
| China RoHS | Compliant |
| Clamping Voltage | 13.5V |
| Composition | Zener |
| Contact Plating | Tin |
| Depth | 800µm |
| Direction | Unidirectional |
| Element Configuration | Single |
| ESD Protection | Yes |
| Forward Voltage | 1.1V |
| Halogen Free | Halogen Free |
| Height | 700µm |
| Lead Free | Lead Free |
| Leakage Current | 10nA |
| Length | 1.2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 7.5V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Max Reverse Leakage Current | 10nA |
| Max Surge Current | 8.8A |
| Min Breakdown Voltage | 7.5V |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Lines | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 7V |
| Packaging | Tape and Reel |
| Peak Pulse Current | 8.8A |
| Peak Pulse Power | 200W |
| Peak Reverse Current | 10nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 7.5V |
| Reverse Standoff Voltage | 7V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|85 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 900µm |
| Working Voltage | 7V |
