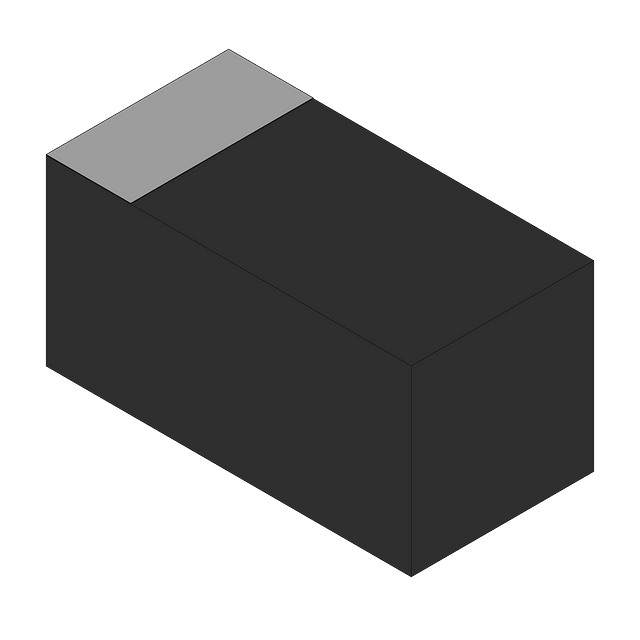

ESD7451N2T5G - onsemi
2-XDFN Automotive AEC-Q101 1 Surface Mount Zener Tvs Diode 6V 350FF -55C~150C TJ
Technical Details
| Breakdown Voltage | 6V |
| Capacitance | 350fF |
| Clamping Voltage | 13V |
| Composition | Zener |
| Country of Origin | Malaysia |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2014-05-09 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 7.5V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 250mW |
| Min Breakdown Voltage | 5V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape & Reel (TR) |
| Peak Reverse Current | 50nA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 3.3V |
| RoHS | Compliant |
| Working Voltage | 3.3V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Production | ||
| onsemi | Production | ||
| onsemi | Production | ||
| Littelfuse | Obsolete | ||
| onsemi | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Infineon | Obsolete | ||
| Diodes Inc. | Production |
