Circuit Protection  >  TVS Diodes

onsemi - ESD8006MUTAG

ESD8006MUTAG - onsemi

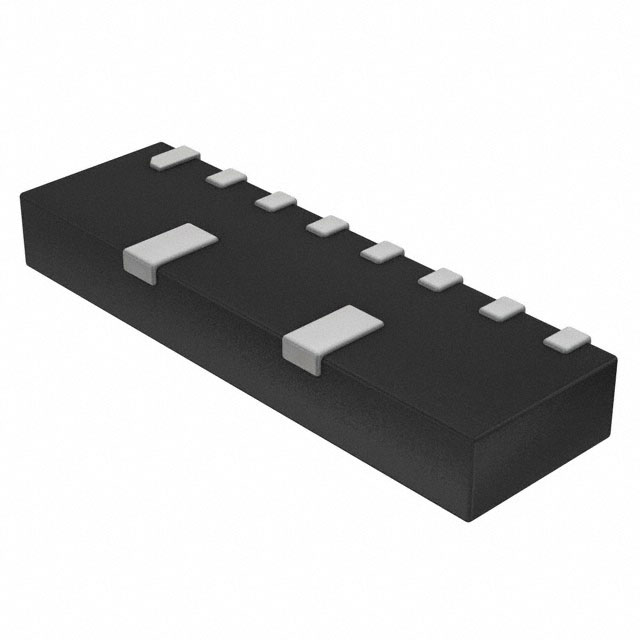

16A 8.4V 5.5V 3.3V UDFN-8(1x3.3) ESD and Surge Protection (TVS/ESD) ROHS

 Datasheets

Technical Details

Breakdown Voltage 7V
Capacitance 320fF
China RoHS Compliant
Clamping Voltage 9.5V
Composition Zener
Contact Plating Tin
Country of Origin Malaysia
Direction Unidirectional
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Common Anode
ESD Protection Yes
Height 550µm
Harmonized Tariff Schedule (HTS) Code 8541.10.00.50
Introduction Date 2013-10-14
Lead Free Lead Free
Length 3.3mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Junction Temperature (Tj) 125°C
Max Operating Temperature 125°C
Max Reverse Leakage Current 1µA
Min Breakdown Voltage 5.5V
Min Operating Temperature -55°C
Mount Surface Mount
Number of Channels 6
Number of Elements 6
Number of Pins 8
Number of Terminals 10
Number of Unidirectional Channels 6
Operating Supply Voltage 3.3V
Peak Pulse Current 16A
Peak Reverse Current 1µA
Polarity Unidirectional
Power Line Protection No
REACH SVHC Yes
Reverse Standoff Voltage 3.3V
RoHS Compliant
Schedule B 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|8536300000|85
Termination SMD/SMT
Test Current 1mA
Width 1mm
Working Voltage 3.3V
