ESD8451MUT5G - onsemi
Trans Voltage Suppressor Diode, 3.3V V(RWM), Unidirectional, 1 Element, Silicon
Technical Details
| Breakdown Voltage | 7.9V |
| Capacitance | 300fF |
| China RoHS | Compliant |
| Clamping Voltage | 19V |
| Composition | Zener |
| Country of Origin | Malaysia |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2014-05-08 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 8.3V |
| Max Operating Temperature | 125°C |
| Min Breakdown Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape & Reel (TR) |
| Peak Pulse Current | 16A |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 3.3V |
| RoHS | Compliant |
| Working Voltage | 3.3V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

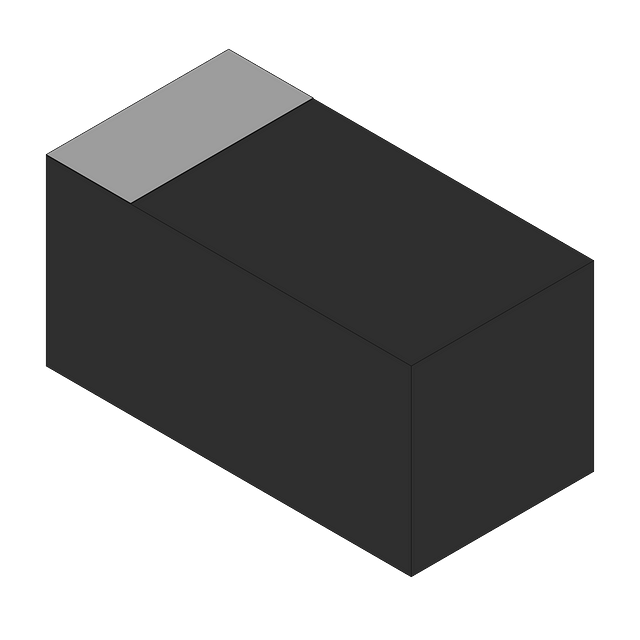

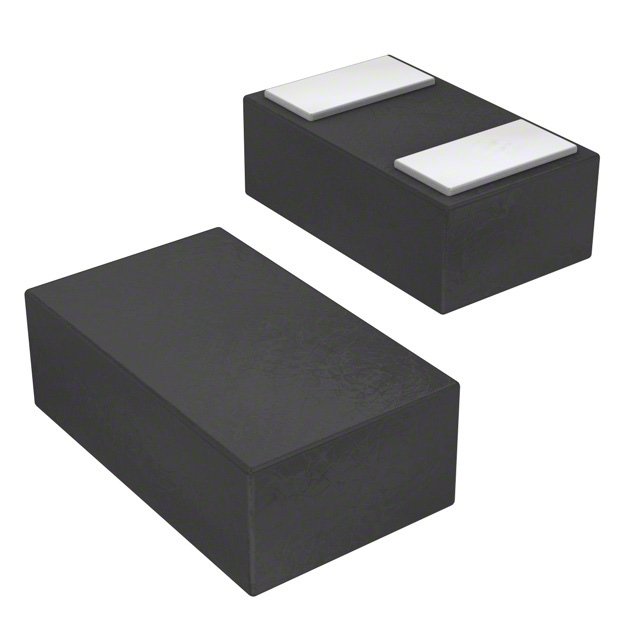

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Littelfuse | Obsolete | ||
| onsemi | Obsolete | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Littelfuse | Production | ||
| Infineon | Obsolete | ||
| Diodes Inc. | Production | ||
| Semtech | Production |
