ESD9C5.0ST5G - onsemi
ESD9C Series 11 V 6.2 pF Surface Mount Transient Voltage Suppressor - SOD-923
Technical Details
| Breakdown Voltage | 11V |
| Capacitance | 6pF |
| Case/Package | SOD-923-2 |
| China RoHS | Compliant |
| Clamping Voltage | 10V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Depth | 600µm |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Forward Voltage | 1.1V |
| Halogen Free | Halogen Free |
| Height | 400µm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2007-04-11 |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 800µm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 11V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 150mW |
| Max Reverse Leakage Current | 500nA |
| Min Breakdown Voltage | 11V |
| Min Operating Temperature | -55°C |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Lines | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Peak Pulse Power | 150mW |
| Peak Reverse Current | 500nA |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 11V |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 650µm |
| Working Voltage | 5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

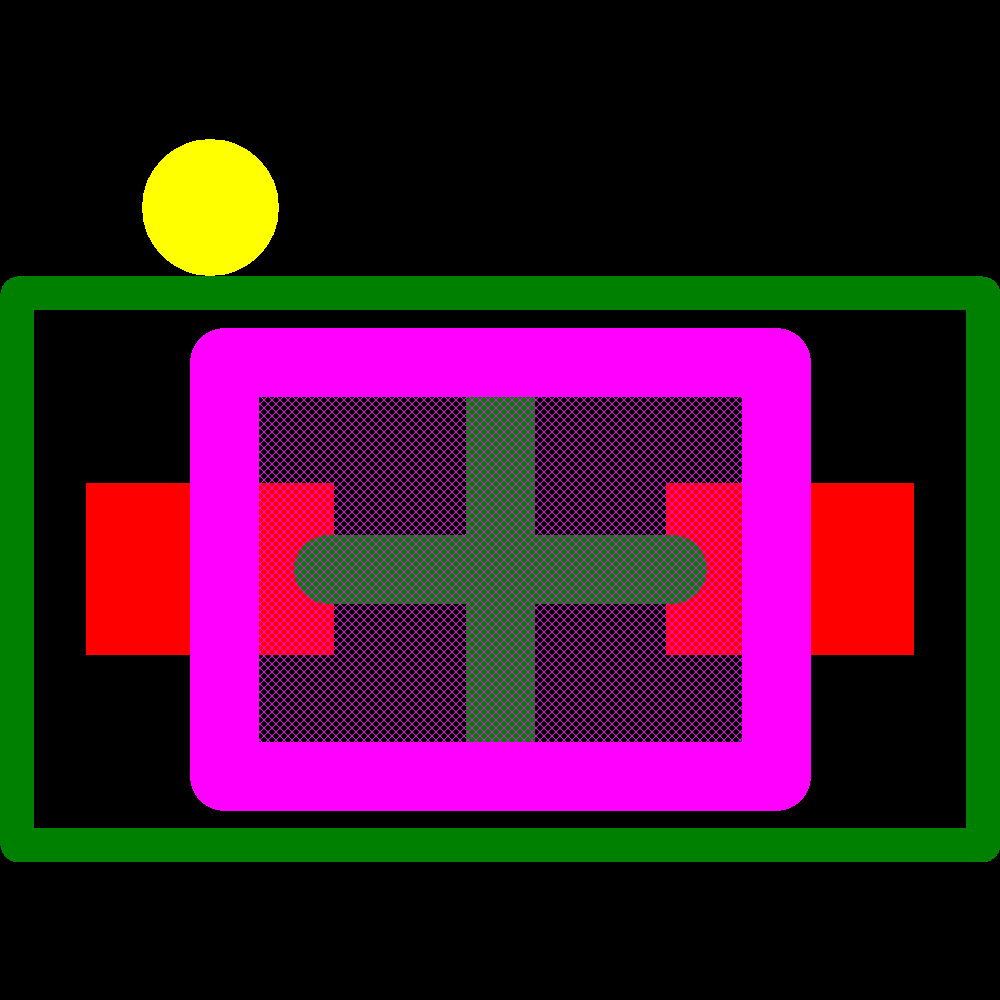

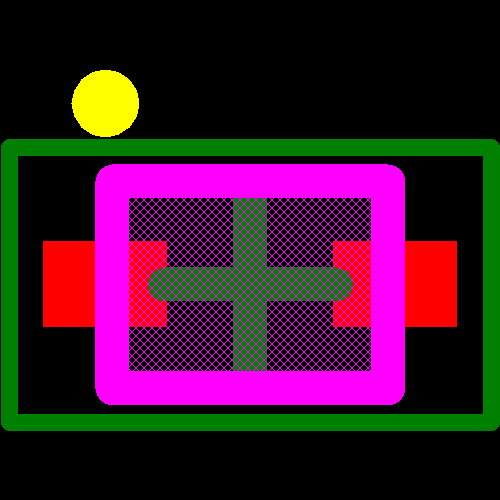

Images
