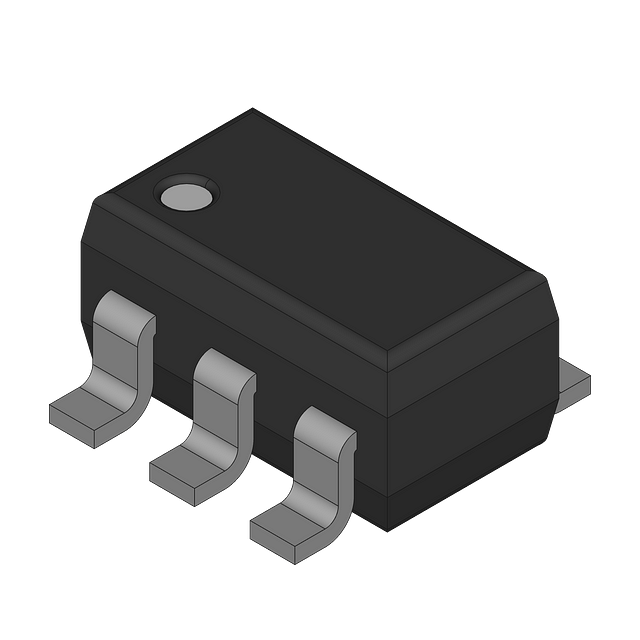

FAN2511S25X - onsemi
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 100mA SOT-23-5
Technical Details
| Case/Package | LSSOP |
| Dropout Voltage | 100mV |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 1.45mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2000-10-24 |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Max Input Voltage | 6.5V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Number of Regulators | 1 |
| Number of Terminals | 5 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| RoHS | Compliant |
| Terminal Pitch | 950µm |
| Voltage Tolerance | 2% |
| Width | 1.65mm |
Compliance
RoHS : Unconfirmed
