FAN4040BIS333X - onsemi
RoHS Compliant Shunt Tape and Reel Shunt Voltage Reference IC 85C 3.3V
Technical Details
| Case/Package | TSSOP |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 1.12mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2002-07-26 |
| Length | 2.92mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 85°C |
| Max Output Voltage | 3.328V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 3.272V |
| Nominal Output Voltage | 3.3V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Output Voltage | 3.3V |
| Packaging | Tape and Reel |
| Reference Type | Shunt |
| RoHS | Compliant |
| Temperature Coefficient | 100ppm/°C |
| Temperature Grade | Industrial |
| Terminal Pitch | 950µm |
| Voltage Tolerance | 0.2% |
| Width | 1.3mm |
Compliance
RoHS : Unconfirmed

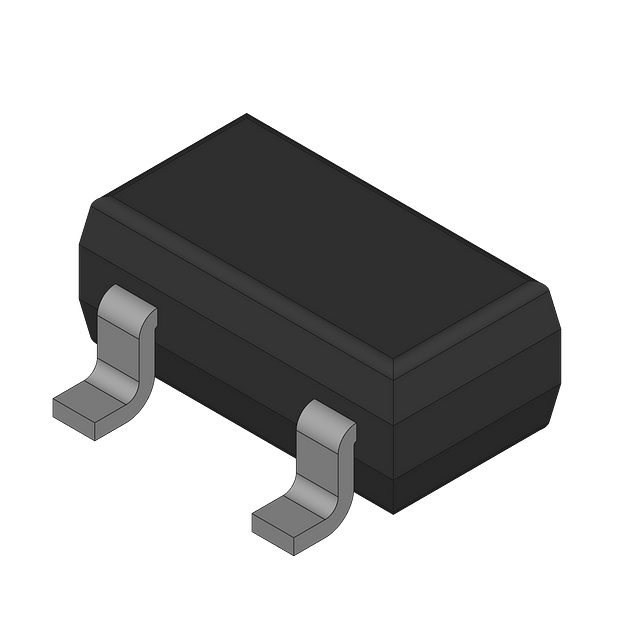

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Fairchild Semiconductor | Obsolete | ||
| Texas Instruments | Unknown | ||
| Micrel | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Zetex | Unknown | ||
| Micrel | Unknown | ||
| Fairchild Semiconductor | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 1930
|
$ | 0.6076 | 0.5043 | 0.4496 | |||||
| Verical |
US: 1930
|
$ | 0.6304 | 0.562 | ||||||
