Technical Details
| Case/Package | TO-247-3 |
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 58A |
| Country of Origin | Mainland China |
| Drain to Source Breakdown Voltage | 800V |
| Drain to Source Resistance | 60mΩ |
| Drain to Source Voltage (Vdss) | 800V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 24.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.29.00.95 |
| Input Capacitance | 14.685nF |
| Introduction Date | 2016-04-28 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 500W |
| Min Breakdown Voltage | 800V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Power Dissipation | 500W |
| Rds On Max | 60mΩ |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080 |
| Threshold Voltage | 4.5V |
| Turn-Off Delay Time | 213ns |
| Turn-On Delay Time | 55ns |
| Weight | 6.39g |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

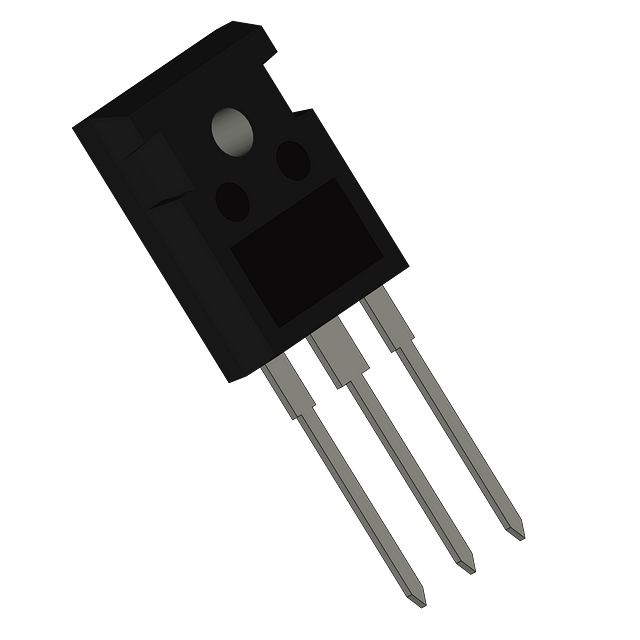

Images
