Discrete Semiconductors > Transistors > MOSFETs

FDMS2672 - onsemi

N-Channel UltraFET Trench® MOSFET 200V, 20A, 77mΩ

Technical Details

China RoHS	Compliant
Contact Plating	Gold
Continuous Drain Current (ID)	3.7A
Country of Origin	Thailand
Current Rating	3.7A
Drain to Source Breakdown Voltage	200V
Drain to Source Resistance	156mΩ
Drain to Source Voltage (Vdss)	200V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Fall Time	10ns
Gate to Source Voltage (Vgs)	20V
Height	800µm
Input Capacitance	2.315nF
Introduction Date	2007-01-06
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	150°C
Max Power Dissipation	78W
Min Breakdown Voltage	200V
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Number of Pins	8
Number of Terminals	8
Packaging	Tape & Reel
Power Dissipation	2.5W
Rds On Max	77mΩ
REACH SVHC	Yes
Resistance	77MΩ
Rise Time	11ns
RoHS	Compliant
Turn-Off Delay Time	36ns
Turn-On Delay Time	22ns
Voltage Rating (DC)	200V
Weight	210mg
Width	6mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

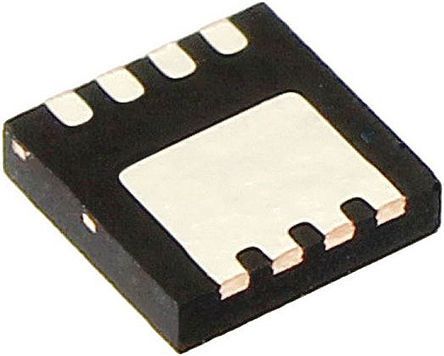

onsemi FDMS2672 | RS
