FDMS86500DC - onsemi

PT7 60V/20V Nch Dual Cool PowerTrench MOSFET - 8LD, DUAL COOL PQFN, JEDEC MO-240 AA, 5.0 X 6.0MM

Technical Details

China RoHS	Non-Compliant
Continuous Drain Current (ID)	29A
Drain to Source Breakdown Voltage	60V
Drain to Source Resistance	2.3mΩ
Drain to Source Voltage (Vdss)	60V
Export Control Classification Number (ECCN) Code	EAR99
Element Configuration	Single
Fall Time	8.2ns
Gate to Source Voltage (Vgs)	20V
Height	1.05mm
Harmonized Tariff Schedule (HTS) Code	8541.29.00.95
Input Capacitance	7.68nF
Introduction Date	2011-12-08
Lead Free	Lead Free
Length	5.1mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Junction Temperature (Tj)	150°C
Max Operating Temperature	150°C
Max Power Dissipation	125W
Min Breakdown Voltage	60V
Min Operating Temperature	-55°C
Mount	Surface Mount
Number of Channels	1
Number of Elements	1
Number of Pins	8
Number of Terminals	5
Power Dissipation	3.2W
Radiation Hardening	No
Rds On Max	2.3mΩ
REACH SVHC	No
Rise Time	25ns
RoHS	Compliant
Schedule B	8541290080, 8541290080\|8541290080\|8541290080\|8541290080\|8541290080
Turn-Off Delay Time	34ns
Turn-On Delay Time	35ns
Weight	90mg
Width	5.85mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

onsemi FDMS86500DC | Future Electronics

Future Electronics

Datasheets

Lifecycle Status Indicator

Production

Symbol

FDMS86500DC Symbol - onsemi

FDMS86500DC Symbol - onsemi

FDMS86500DC Symbol - onsemi

FDMS86500DC Symbol - onsemi

‹ ›

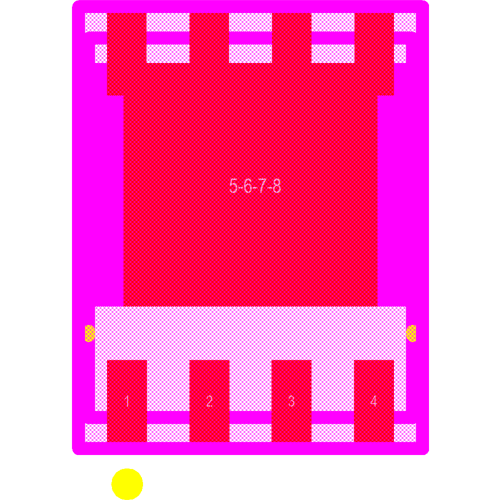

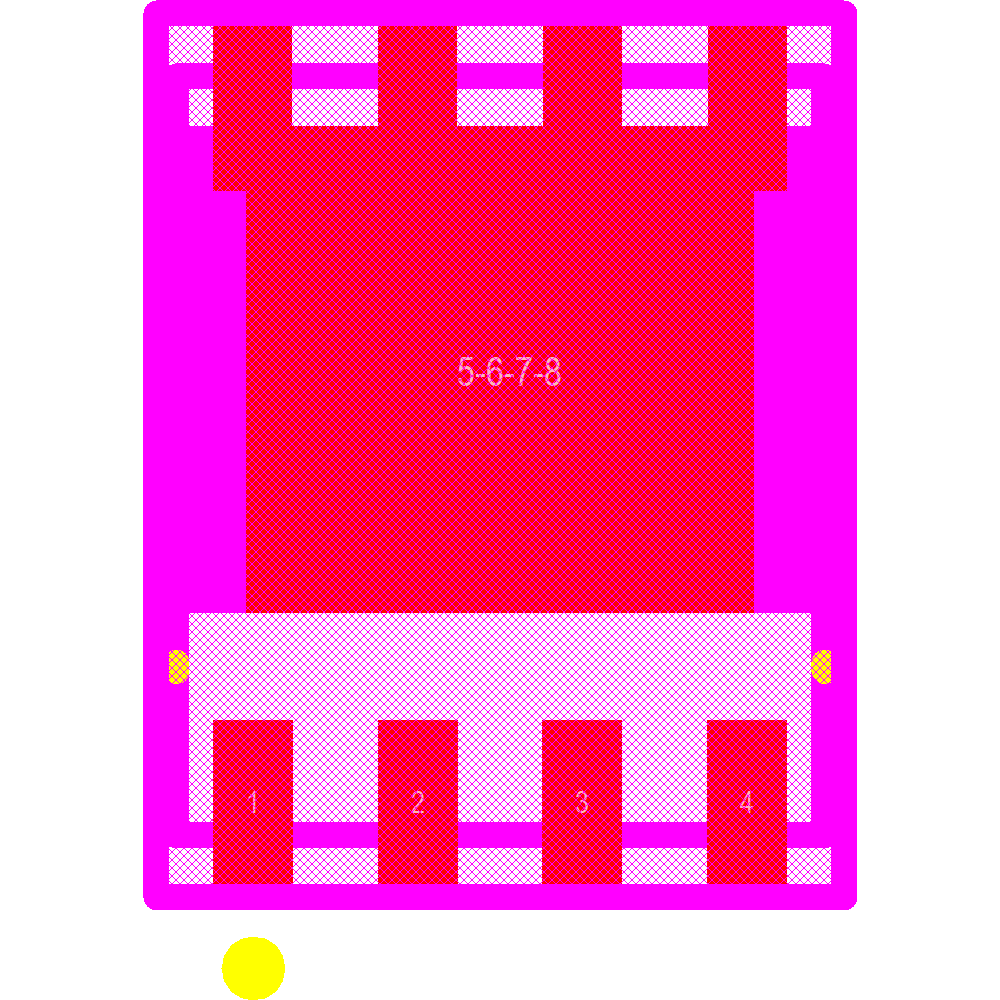

Footprint
